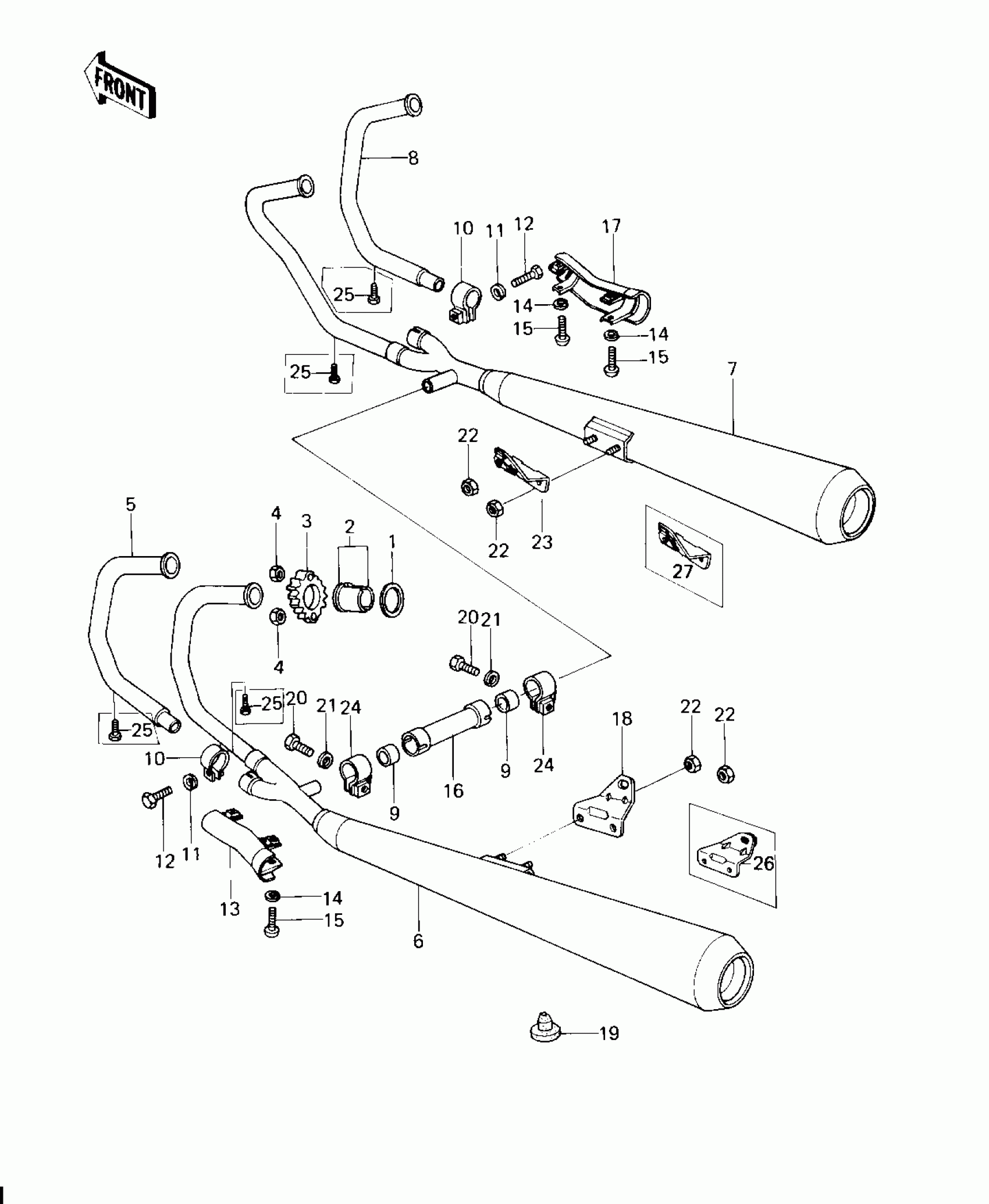

Kawasaki SR MUFFLERS Diagram

#

Description
Price

1

GASKET,EXHAUST PIPE H

11009-1866

$8.25

2

COLLAR,EXHAUST PIPE

92027-264

$4.73

3

HOLDER,EXHAUST PIPE

18069-1006

$27.28

4

NUT,LOCK 6MM

92017-014

$7.51

5

PIPE,EXHAUST,#2

18049-1051

$104.50

5

PIPE,EXHAUST,#2

18049-1036

$101.04

6

MUFFLER,L.H.

18001-1024

$736.19

6

MUFFLER ASSY,L.H

18001-1035

$319.73

7

MUFFLER,R.H.

18001-1025

$742.34

7

MUFFLER,R.H.

18001-1025

$742.34

8

PIPE EXHAUST,#4

18049-1024

$135.75

8

PIPE,EXHAUST,#4

18049-1038

$109.42

9

GASKET,MUFFLER CONNEC

11060-1051

$23.41

10

CLAMP,EXHAUST PIPE

92037-1224

$12.41

11

WASHER SPRING 8MM

461F0800

$0.40

12

BOLT-SMALL-UPSET,8X30

115G0830

$6.34

13

COVER,MUFFLER,L.H.

14025-1029

Unavailable

14

WASHER SPRING 6MM

461F0600

$0.69

15

SCREW PAN HEAD 6X40

220B0640

Unavailable

16

PIPE,MUFFLER CONNECT1

32032-1671

Unavailable

17

COVER,MUFFLER,R.H.

14025-1030

Unavailable

18

BRACKET,MUFFLER,L.H.

32069-1041

$24.57

19

DAMPER

92075-1002

$6.22

20

BOLT-SMALL-UPSET,8X30

115G0830

$6.34

21

WASHER SPRING 8MM

461F0800

$0.40

22

NUT,LOCK,8MM

92017-013

$10.35

23

BRACKET,MUFFLER,R.H.

32069-1042

$21.44

24

CLAMP,PIPE,35MM

92037-1223

Unavailable

25

BOLT (6X10)

110R0610

$3.44

26

BRACKET,MUFFLER,L.H.

32069-1041

$24.57

27

BRACKET,MUFFLER,R.H.

32069-1042

$21.44
