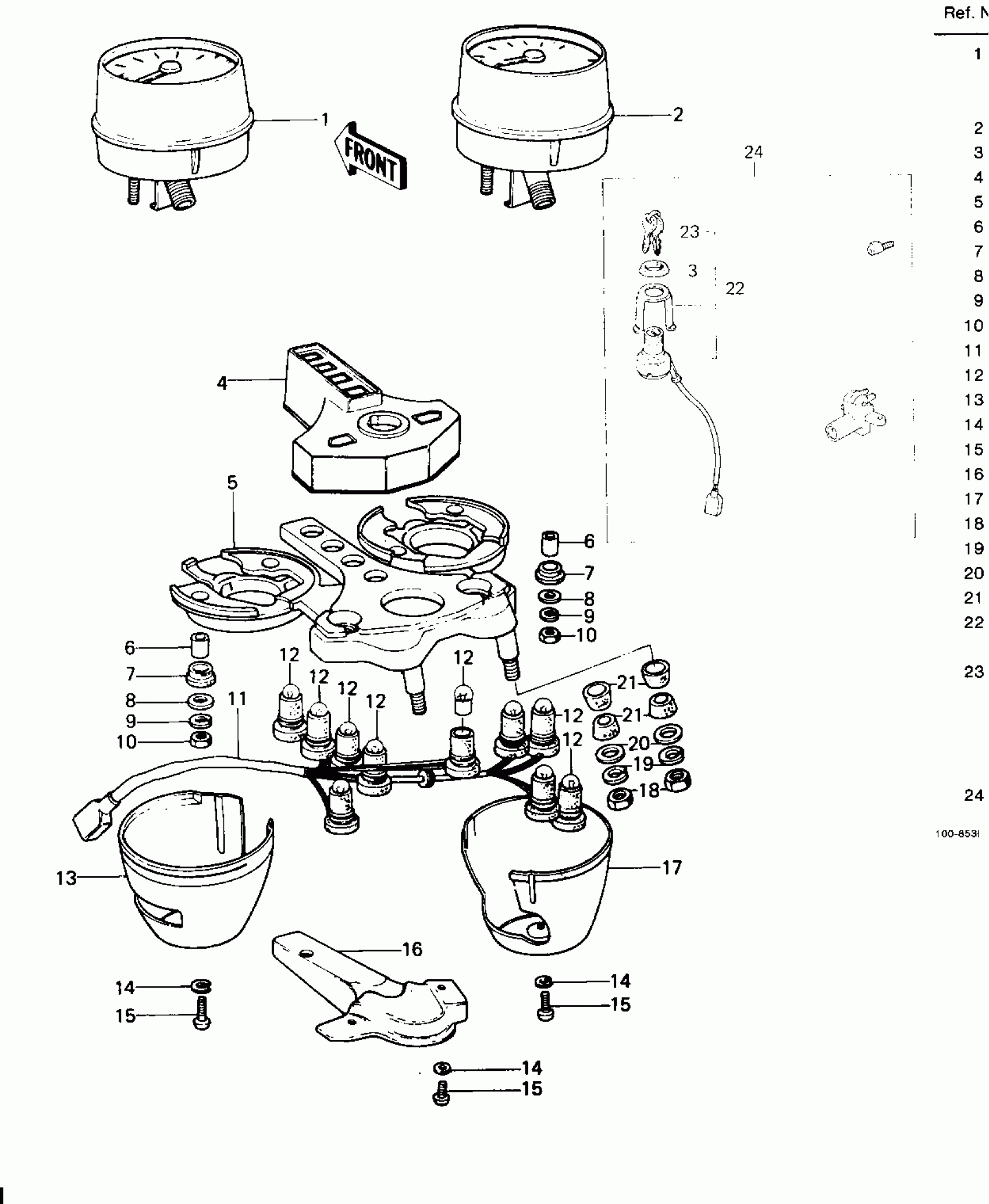

Kawasaki SR METERS/IGNITION SWITCH Diagram

#

Description
Price

1

SPEEDOMETER ASSY,KPH (Canada)

25005-1013

$577.34

1

SPEEDOMETER,MPH

25005-1037

$607.99

1

SPEEDOMETER,MPH

25005-1037

$607.99

2

TACHOMETER

25015-1013

$459.47

3

NUT,IGNITION SW LOCK

27007-004

Unavailable

4

COVER,METER,INDICATE

25023-015

$220.31

5

BRACKET,METER

25008-1005

Unavailable

6

COLLAR,METER

92027-211

$14.88

7

RUBBER,METER

92075-172

$14.92

8

WASHER,PLAIN,5MM

92022-241

Unavailable

9

WASHER SPRING 5MM

461F0500

$0.69

10

NUT-HEX,5MM

312B0500

$0.46

11

SOCKET,METER

23008-1014

$144.91

12

BULB 12V 3W

92069-018

$4.87

13

COVER,SPEEDOMETER

25012-023

Unavailable

14

WASHER SPRING 3MM

461F0300

$0.46

15

SCREW-PAN-CROS,3X8

220B0308

$0.59

16

COVER,METER BRACKET

25024-006

$28.55

17

COVER,TACHOMETER

25012-024

$220.13

18

NUT,8MM

311B0800

$0.67

19

WASHER SPRING 8MM

461F0800

$0.40

20

WASHER-PLAIN-SMALL,3MM

410B0300

$1.33

21

DAMPER RUBBER

92075-080

$10.35

22

SWITCH ASSY,IGNITION

27005-5001

Unavailable

22

SWITCH ASSY,IGNITION

27005-5007

$129.44

23

KEY SET,#801

27008-068-01

Unavailable

23

KEY SET,#845

27008-068-45

Unavailable

23

KEY,BLANK

27008-1014

Unavailable

23

KEY-LOCK,BLANK

27008-1103

Unavailable

24

LOCK SET,KZ650B3

27004-5020

Unavailable
