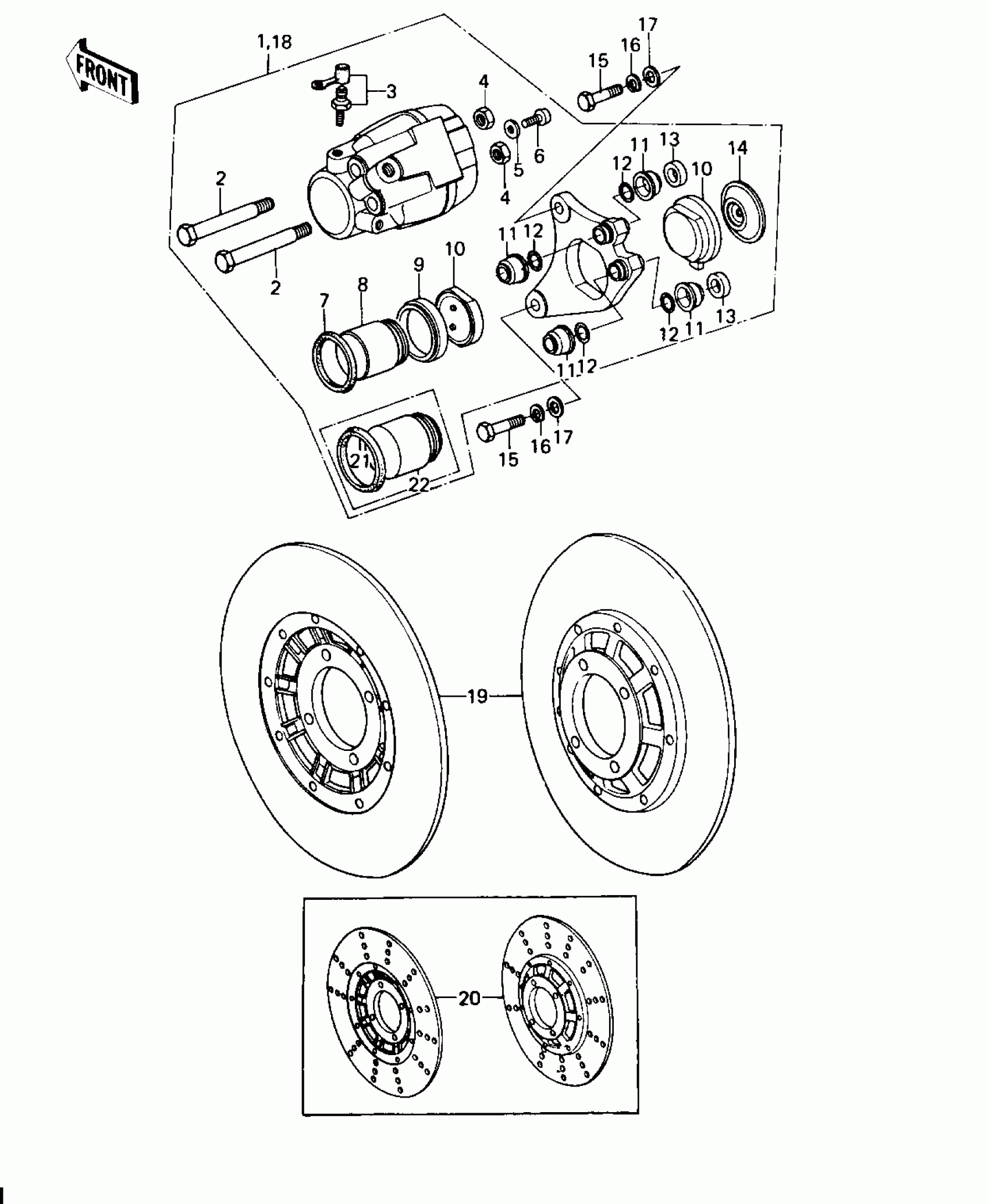

Kawasaki SR FRONT BRAKE Diagram

#

Description
Price

1

CALIPER ASSY,L.H.FRO

43041-1010

$474.21

1

UNAVAILABLE IN PRICE BOOK

43041,1024

$487.10

2

BOLT

43045-006

$40.84

3

BLEEDER SET

43085-001

$24.57

4

NUT-HEX-FINE,10MM

315B1000

$0.58

5

WASHER SPRING 6MM

461F0600

$0.69

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

PACKING,PISTON SEAL

43049-001

$11.06

8

PISTON

43048-1002

Unavailable

9

DUST SEALD,RUBBER

43054-003

Unavailable

10

PAD SET

43050-5003

$137.80

10

UNAVAILABLE IN PRICE BOOK

43062-1001

Unavailable

11

DUST SHILD,SHAFT

43052-005

Unavailable

12

"0" RING

43053-006

Unavailable

13

PLUG

43088-002

Unavailable

14

SPACER

43040-004

$10.00

15

BOLT

92007-032

$13.82

16

WASHER SPRING 10MM

461F1000

$0.67

17

WASHER PLAIN 10MM

410B1000

$0.58

18

CALIPER ASSY,R.H,FRO

43041-1011

$367.56

18

CALIPER ASSY,R.H

43041-1025

$311.22

19

DISC COMPLETE,FRONT

41080-1002

$360.30

20

DISC PLATE,FRONT

41080-1019

Unavailable

21

PACKING,PISTON SEAL

43049-002

$13.90

22

PISTON,BRAKE,42M/M

43020-1012

Unavailable
