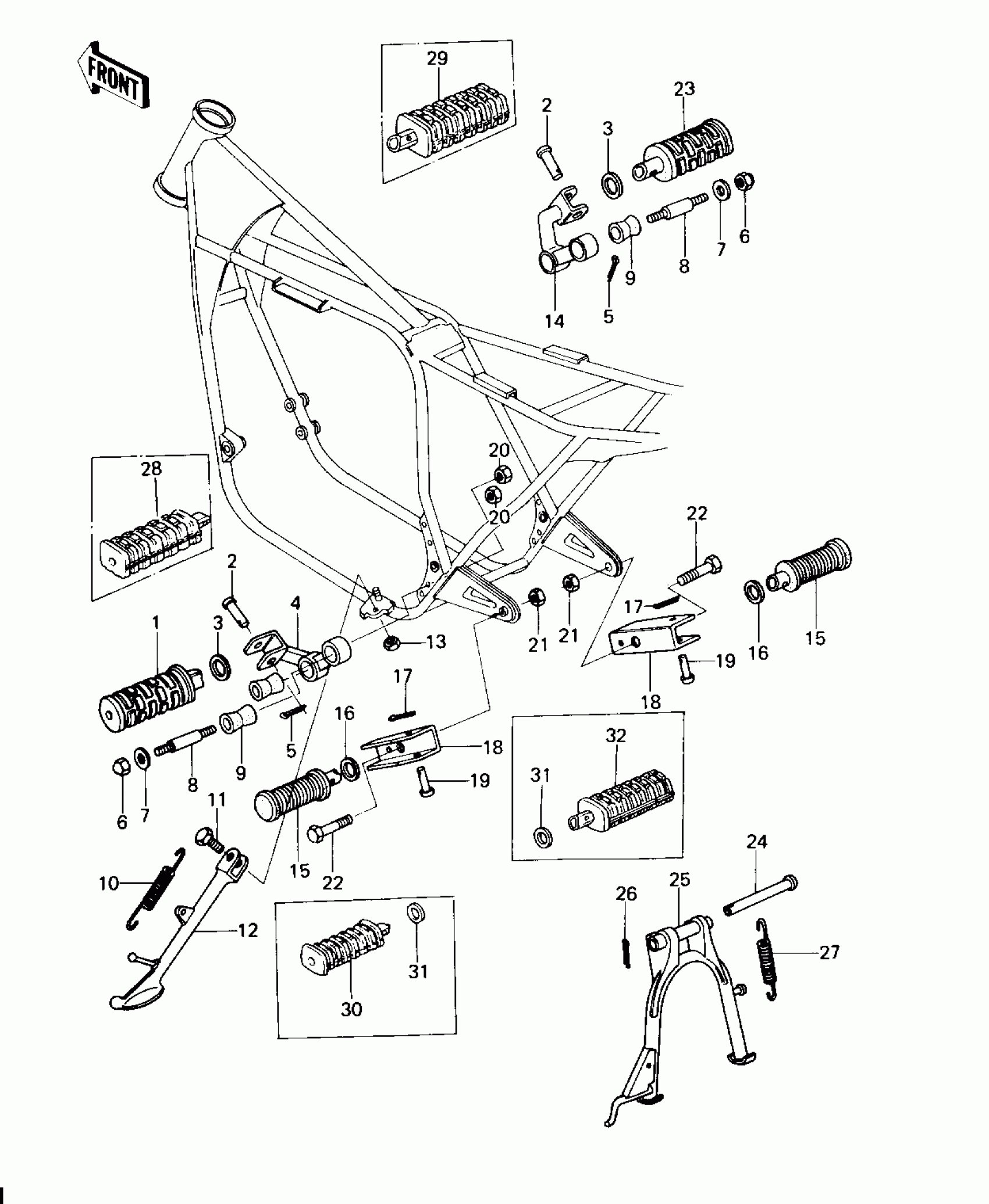

Kawasaki SR FOOTRESTS/STANDS Diagram

#

Description
Price

1

BAR-FOOTREST,L.H

34028-011

Unavailable

2

PIN,8X31

92043-080

$5.52

3

WASHER,25X36X2.3

92022-250

$5.00

4

HOLDER,STEP,L.H.

34003-1012

Unavailable

5

PIN COTTER 2.5X16

550D2516

$2.79

6

NUT,CAP AND LOCK,8MM

92019-013

$14.88

7

CAP,FOOTRESTBAR

92102-010

$8.49

8

STUD,FOOTREST BAR FI

92004-048

$14.37

9

DAMPER RUBBER,FOOTRE

92075-293

Unavailable

10

SPRING,STAND

34025-005

$7.58

11

BOLT,SIDE STAND

92003-079

$11.79

12

STAND-SIDE

34024-1103

$74.82

13

NUT-HEX-FINE,10MM

314B1000

$0.67

14

HOLDER,STEP,R.H.

34003-1015

Unavailable

15

RUBBER,FOOTREST

92076-027

$37.21

16

WASHER-PLAIN (OPT)

92022-199

Unavailable

17

PIN-COTTER,2.0X12

550D2012

$1.11

18

BRACKET,REAR FOOTREST

34036-002

Unavailable

19

PIN,6X28

92043-1464

$8.10

20

NUT-HEX-FINE,10MM

315B1000

$0.58

21

NUT,LOCK,10MM

92019-021

$6.11

22

BOLT,HEX HEAD,10X40

92003-213

Unavailable

23

BAR-FOOTREST,R.H

34028-012

$29.20

24

SHAFT-STAND,CNT

34019-015

$17.42

25

STAND-MAIN

34011-1003

$128.50

26

PIN-COTTER,3.0X30

550D3030

$2.51

27

SPRING,STAND,CNT

34023-016

$16.50

28

STEP,FOOTREST,FRONT,

34028-1007

Unavailable

29

STEP,FOOTREST,FRONT,

34028-1008

Unavailable

30

STEP,RR,LH

34028-1009

$35.18

31

WASHER,22.5X30X2.6

92022-181

Unavailable

32

STEP,RR,RH

34028-1010

$35.18
