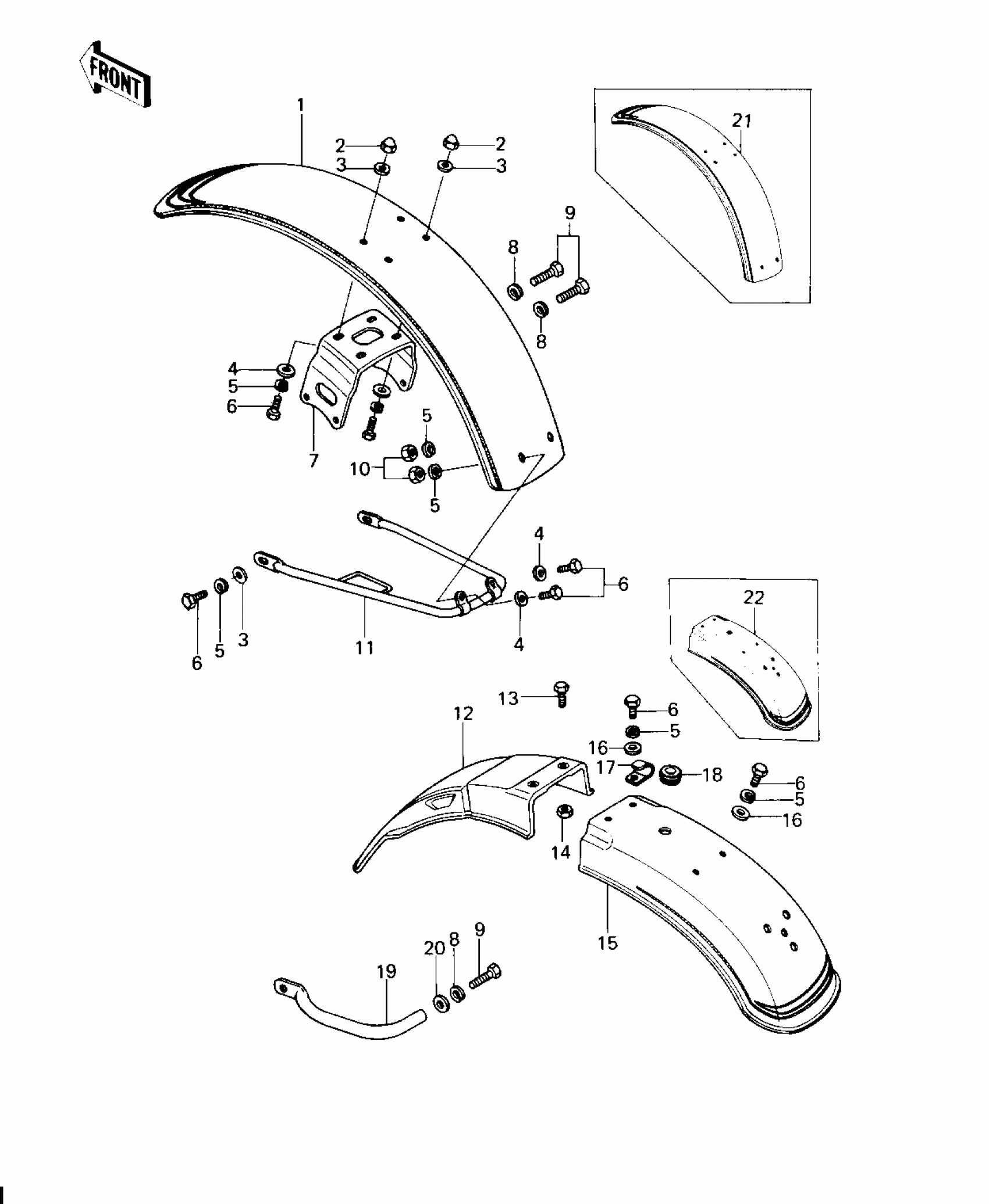

Kawasaki SR FENDERS Diagram
#
Description
Price
1
FENDER-FR,C.P.RED
35004-1019-A5
Unavailable
2
NUT-6MM
322N0600
$1.08
3
WASHER PLAIN 6MM
411B0600
$2.84
4
WASHER PLAIN
92022-024
$3.65
5
WASHER SPRING 6MM
461F0600
$0.69
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
BRACE,FRONT FENDER
35009-1005
$48.83
8
WASHER SPRING 8MM
461F0800
$0.40
9
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
10
NUT 6MM
311B0600
$0.93
11
STAY,FRONT FENDER
35011-1005
$99.15
12
FENDER-RR
35022-1046
$81.19
13
BOLT-UPSET,6X16
112G0616
$1.10
14
NUT,LOCK 6MM
92017-014
$7.51
15
FENDER-RR,C.P.RED
35022-1005-A5
$199.34
16
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
17
CLAMP
92037-113
$6.15
18
GROMMET,10MM
92071-019
$3.89
19
GRIP,FRAME
32109-1002
Unavailable
20
WASHER PLAIN 8MM
410B0800
$0.93
21
FENDER-FR,M.BLUE
35004-1019-8E
Unavailable
21
FENDER-FR,C.P.RED
35004-5001-A5
$141.64
22
FENDER-RR,M.BLUE
35022-1005-8E
$200.13
22
FENDER-RR,C.P.RED
35022-5001-A5
$118.34
