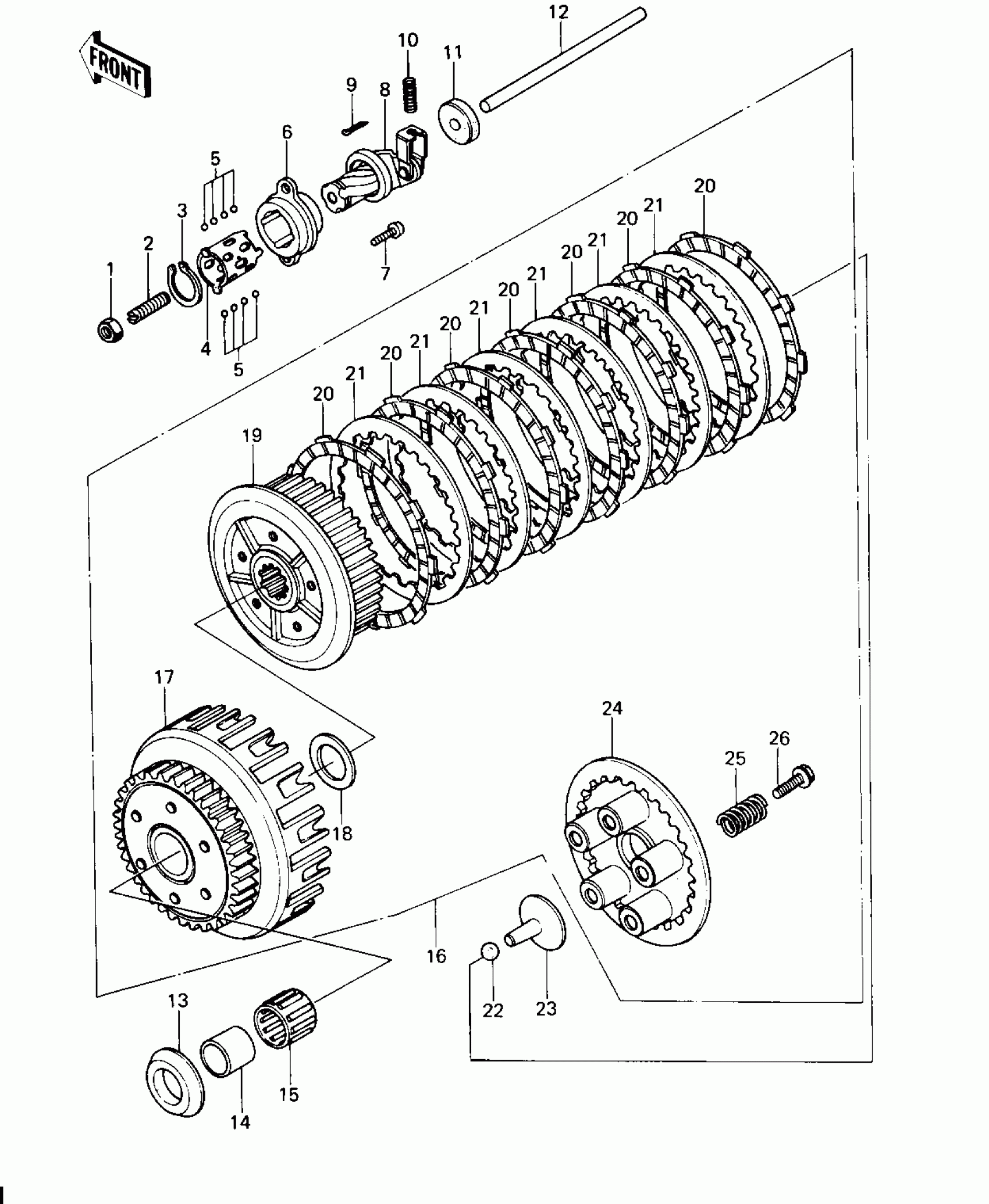

Kawasaki SR CLUTCH Diagram
#
Description
Price
1
NUT-HEX-SMALL,8MM
318B0800
$0.59
2
SCREW,SLOTTED,8X25
92014-014
Unavailable
3
CIRCLIP-TYPE-C,15MM
480J1500
$2.31
4
RETAINER
13197-004
Unavailable
5
BALL,STEEL,1/8"
600A0400
$1.40
6
OUTER,CLUTCH RELEASE
13118-011
Unavailable
7
SCREW-PAN-CROS,6X16
220B0616
$2.84
8
INNER,CLUTCH RELEASE
13102-027
Unavailable
9
PIN-COTTER,1.6X15
550D1615
$2.51
10
SPRING,CLUTCH RELEASE
92081-069
$7.51
11
OIL SEAL,TC7187
92050-048
$25.59
12
ROD,CLUTCH PUSH
13116-035
Unavailable
13
SPACER,THRUST,T=5.5
92026-116
$17.60
14
BUSHING,25X32X23.6
92028-178
$25.03
15
BEARING-NEEDLE,KTV323723
92046-028
$21.24
16
CLUTCH-ASSY
13081-1043
Unavailable
17
HOUSING,CLUTCH
13095-1022
Unavailable
18
SPACER,25.5X47X2.5
92026-022
$9.91
19
HUB-CLUTCH
13087-043
$154.96
20
PLATE,CLUTCH FRICTION
13088-030
$26.17
21
PLATE,CLUTCH STEEL
13089-022
Unavailable
22
BALL-STEEL,3/8"
600A1200
$1.56
23
PUSHER,CLUTCH SPRG P
13116-022
Unavailable
24
PLATE,CLUTCH SPRING
13187-006
Unavailable
25
SPRING,CLUTCH
92081-1033
$7.38
26
BOLT,FLANGED,6X18
92001-1066
$6.22
