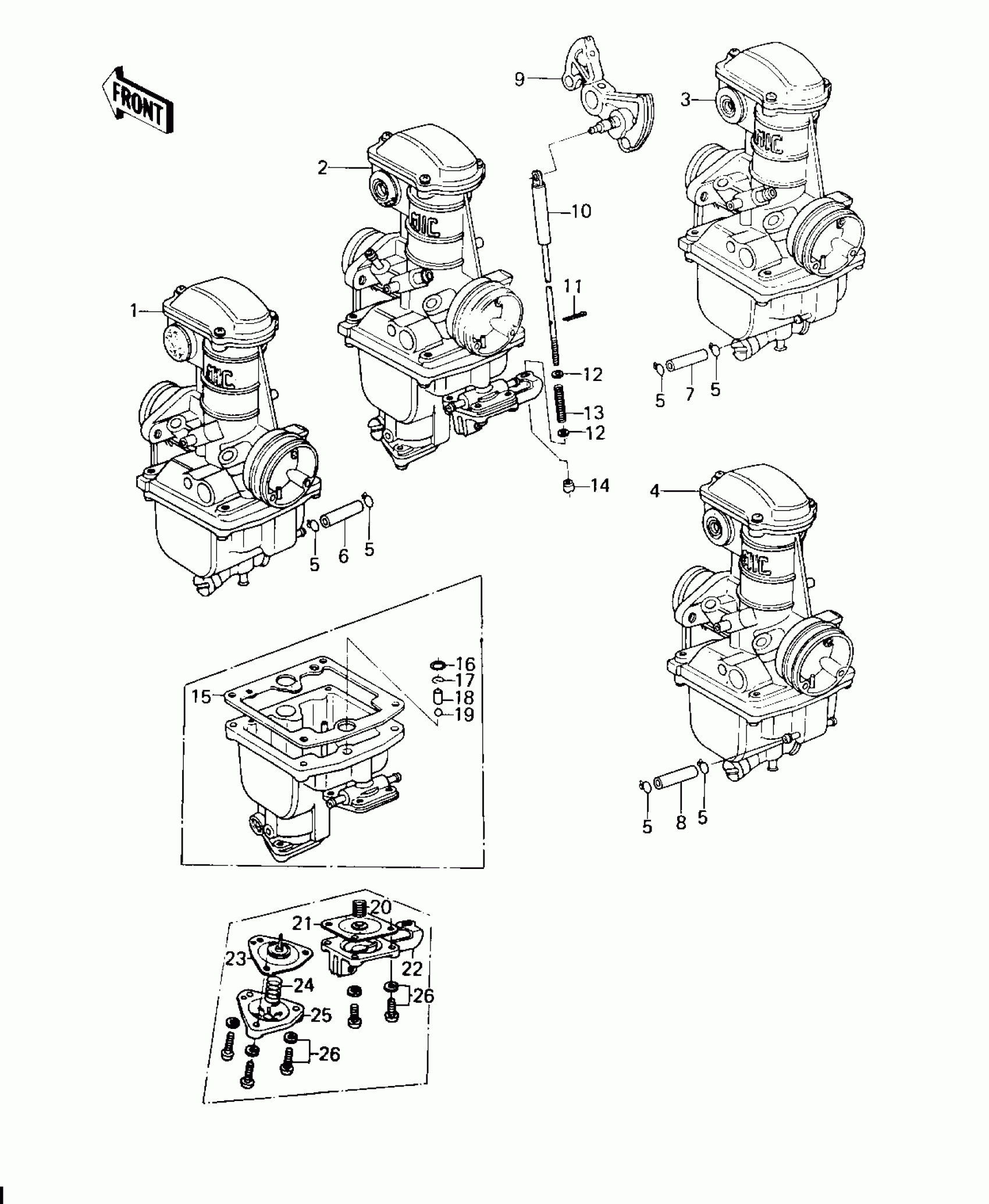

Kawasaki SR CARBURETORS/ACCELERATOR PUMP (USA) (KZ65 Diagram
#
Description
Price
1
CARBURETOR,L.H,OUTSID
16001-1122
$331.21
2
CARBURETOR,L.H,INSIDE
16001-1123
$413.56
3
CARBURETOR,R.H,INSIDE
16001-1124
$331.21
4
CARBURETOR,R.H,OUTSID
16001-1125
$413.56
5
CLAMP,TUBE
92037-1124
$6.11
6
TUBE,3.5X7.5X47.5
92059-1072
$14.00
7
TUBE,3.5X7.5X64.5
92059-1071
$33.46
8
TUBE,3.5X7.5X47.5
92059-1072
$14.00
9
PULLEY,THROTTLE CABLE
13236-1014
Unavailable
10
ROD ASSY,PUMP
46102-1007
Unavailable
11
COTTER PIN,1.0X6
550D1006
$3.19
12
WASHER,PUMP ROD
92022-1138
Unavailable
13
SPRING,PUMP ROD
92081-1138
Unavailable
14
NUT,PUMP ROD
92015-1075
Unavailable
15
GASKET,FLOAT CHAMBER
11009-1562
$24.64
16
"0" RING,MAIN JET COV
16038-016
$3.02
17
CLAMP,SPRING,CHECK VL
92037-1123
Unavailable
18
WEIGHT,PUMP,CHECK VLV
13042-1004
Unavailable
19
BALL,STEEL,CHECK VALV
92140-1003
Unavailable
20
SPRING,PUMP DIAPHRAGM
92081-1139
Unavailable
21
DIAPHRAGM,PUMP
43028-1012
Unavailable
22
COVER ASSY,PUMP
14025-1139
Unavailable
23
DIAPHRAGM,SENSOR
43028-1010
$147.36
24
SPRING,SENSOR DIAPHRA
92081-1137
$2.63
25
COVER,SENSOR
14025-1121
Unavailable
26
SCREW-PAN-WS-CROS
223B0414
$1.52
