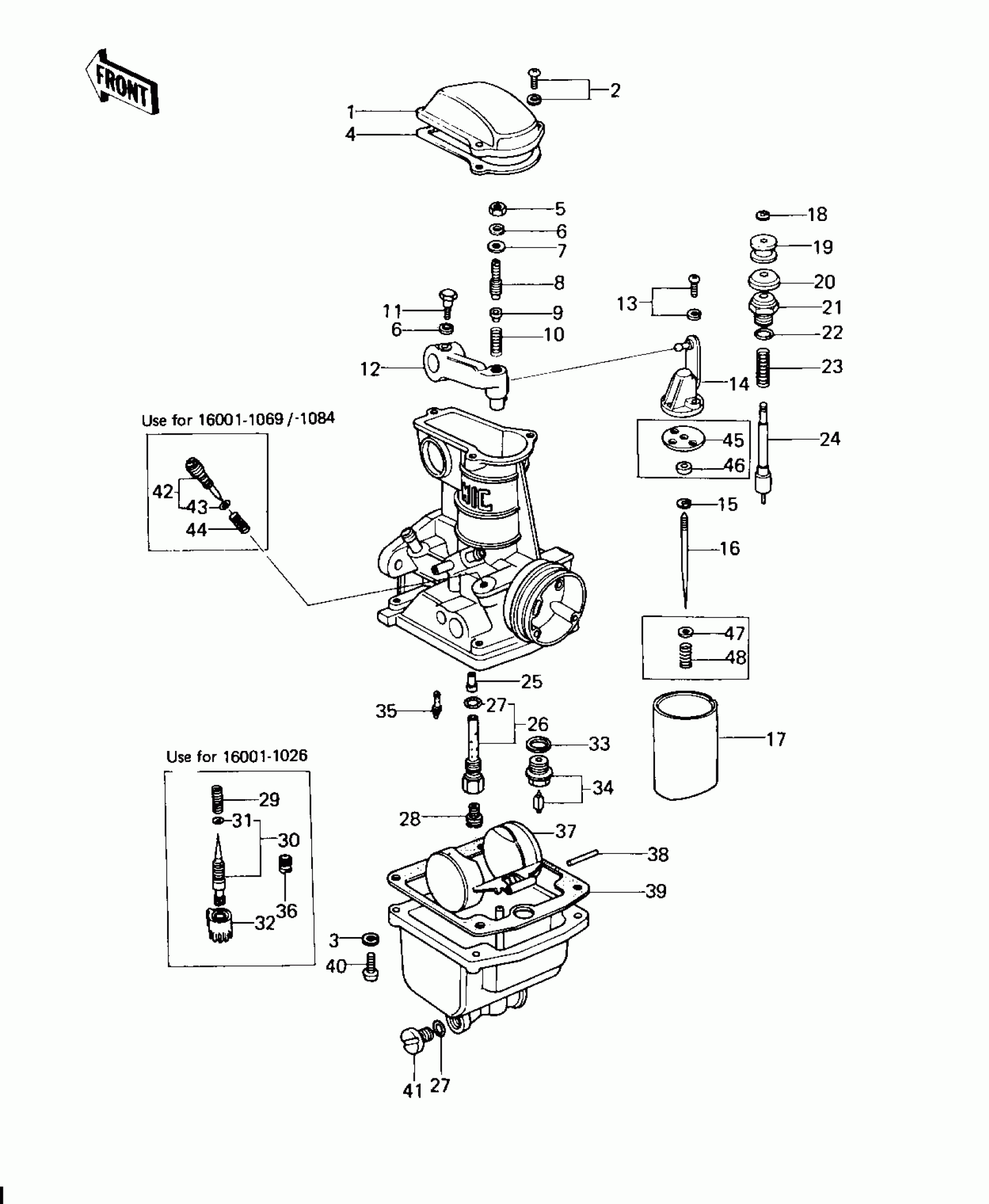

Kawasaki SR CARBURETOR PARTS Diagram

#

Description
Price

1

TOP,MIXING CHAMBER

16005-027

$24.02

2

SCREW-PAN-WS-CROS

223B0414

$1.52

3

WASHER SPRING 4MM

461F0400

Unavailable

4

GASKET,CHAMBER TOP

16019-031

$43.53

5

NUT,5MM

16003-013

$9.40

6

WASHER SPRING 5MM

461F0500

$0.69

7

WASHER,PLAIN

16039-016

Unavailable

8

SCREW,SLOTTED

16046-012

Unavailable

9

SEAT-SPRING

16057-002

Unavailable

10

SPRING

16040-026

$6.62

11

BOLT,HEX HEAD,5X14

16067-006

Unavailable

12

LEVER,THROTTLE

39075-1001

Unavailable

13

SCREW,PAN HEAD,3X14

16033-031

Unavailable

14

BRACKET,THROTTLE VALV

39184-1001

$36.63

15

CLAMP,E-TYPE

16008-010

$9.21

16

JET NEEDLE,5CL16

16009-1029

Unavailable

16

VALVE,THROTTLE,CA1.75

16025-1025

$73.65

18

CIRCLIP

16076-003

$8.92

19

COLLAR

16073-014

$10.47

20

CAP,STARTER PLUNGER

16039-015

$6.88

21

CAP,STARTER PLUNGER

16012-015

Unavailable

22

UNAVAILABLE IN PRICE BOOK

67081509

Unavailable

23

SPRING,STARTER PLUG

16013-008

Unavailable

24

PLUNGER,STARTER

16016-021

Unavailable

25

NEEDLE JET,AO-5

16017-1034

Unavailable

26

PIPE,BLEED

49122-1006

Unavailable

27

"0" RING,MAIN JET COV

16038-016

$3.02

28

MAIN JET,#A97.5R

92063-1035

Unavailable

28

MAIN JET,#A100

92063-1033

$26.79

28

MAIN JET,#A105R

92063-1042

$15.74

28

JET-MAIN NO 107.5R

92063-073

$15.74

28

MAIN JET NO 92.5R

92063-068

$14.10

28

JET-MAIN,#A95R

92063-1031

$14.34

33

WASHER FLOAT VLV SEAT

16029-004

$3.89

34

FLOAT VALVE ASSY

16030-1001

$56.16

35

JET-PILOT,#A15

92064-1018

$20.51

37

FLOAT

16031-031

$172.74

38

PIN,FLOAT

16032-003

$6.57

40

SCREW PAN HEAD 4X16

220B0416

$1.66

41

SCREW,GUIDE

16049-007

Unavailable

42

SCREW,PILOT ADJUSTIN

16014-1004

Unavailable

46

COLLAR,THROTTLE VALVE

92027-1103

$7.34

47

WASHER,THROTTLE VALVE

92022-1024

$6.61

48

SPRING,JET NEEDLE

92081-1072

$5.54
