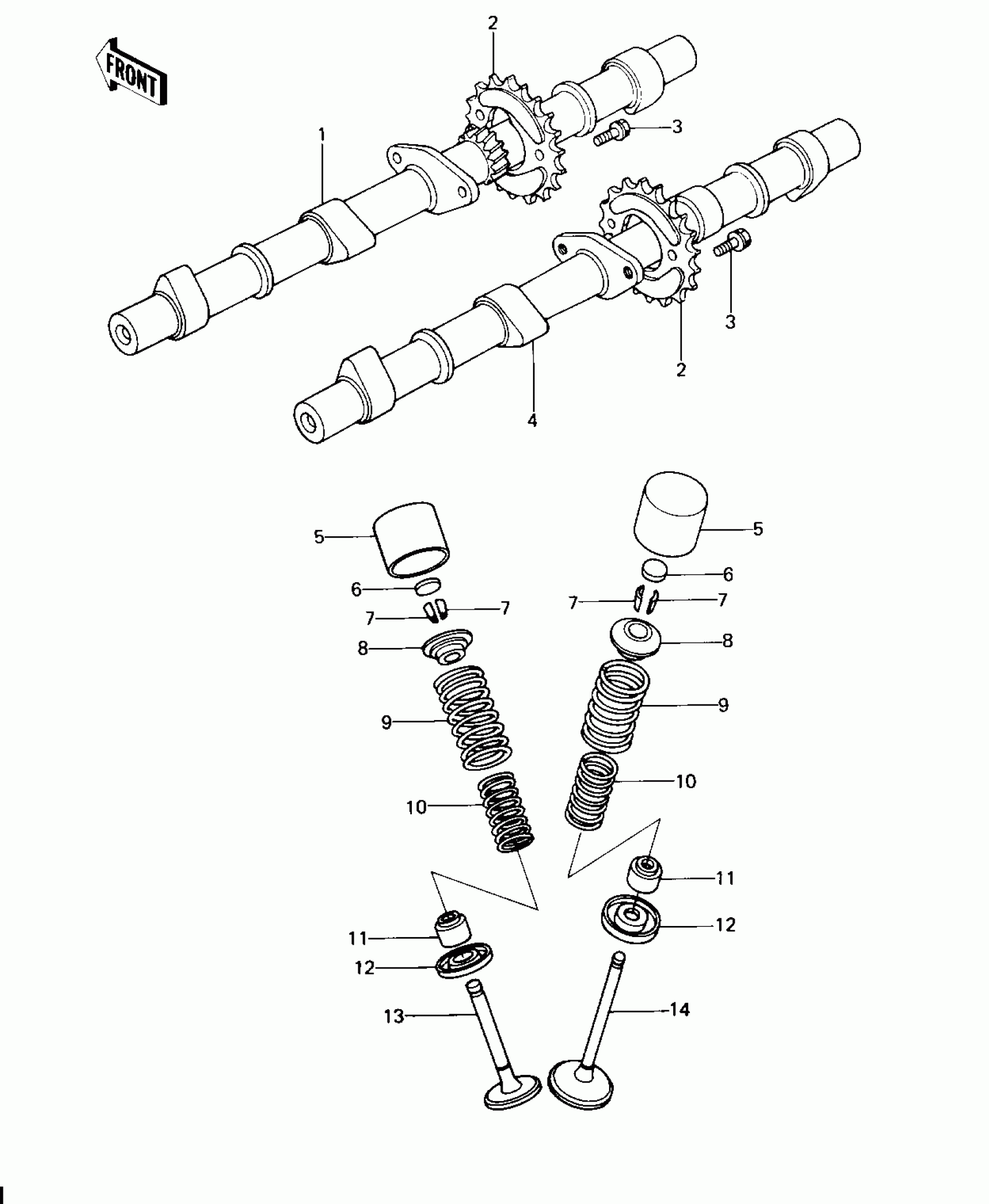

Kawasaki SR CAMSHAFTS/VALVES Diagram
#
1
CAM SHAFT,EXHAUST
12044-013
Unavailable
2
SPROCKET,CAM
12046-004
Unavailable
3
BOLT,FLANGED,6X11
92003-208
$4.31
4
CAM SHAFT,INLET
12044-012
Unavailable
5
TAPPET
12032-1001
Unavailable
5
TAPPET
12032-1001
Unavailable
6
SHIM,T=2.00
92025-1090
Unavailable
6
SHIM,T=2.05
92025-1091
Unavailable
6
SHIM,T=2.10
92025-1092
Unavailable
6
SHIM,T=2.15
92025-1093
Unavailable
6
SHIM,T=2.20
92025-1094
Unavailable
6
SHIM,T=2.25
92025-1095
Unavailable
6
SHIM,T=2.30
92025-1096
Unavailable
6
SHIM,T=2.35
92025-1097
Unavailable
6
SHIM,T=2.40
92025-1098
Unavailable
6
SHIM,T=2.45
92025-1099
Unavailable
6
SHIM,T=2.50
92025-1100
Unavailable
6
SHIM,T=2.55
92025-1101
Unavailable
6
SHIM,T=2.60
92025-1102
Unavailable
6
SHIM,T=2.65
92025-1103
Unavailable
6
SHIM,T=2.70
92025-1104
Unavailable
6
SHIM,T=2.75
92025-1105
Unavailable
6
SHIM,T=2.80
92025-1106
Unavailable
6
SHIM,T=2.85
92025-1107
Unavailable
6
SHIM,T=2.90
92025-1108
Unavailable
6
SHIM,T=2.95
92025-1109
Unavailable
6
SHIM,T=3.00
92025-1110
Unavailable
6
SHIM,T=3.05
92025-1111
Unavailable
6
SHIM,T=3.10
92025-1112
Unavailable
6
SHIM,T=3.15
92025-1113
Unavailable
6
SHIM,T=3.20
92025-1114
Unavailable
7
COLLET,RETAINER
12011-004
$5.46
8
RETAINER-VALVE SPRING
12009-008
$11.91
9
SPRING-ENGINE VALVE,OUTER
12007-012
$25.90
10
SPRING-ENGINE VALVE,INNER
12007-011
Unavailable
11
SEAL-OIL,RV37129.5
92049-016
$18.35
12
SEAT-SPRING,VALVE
16007-1024
$6.51
13
VALVE,EXHAUST
12005-008
$117.92
14
VALVE,INTAKE
12004-1011
Unavailable
