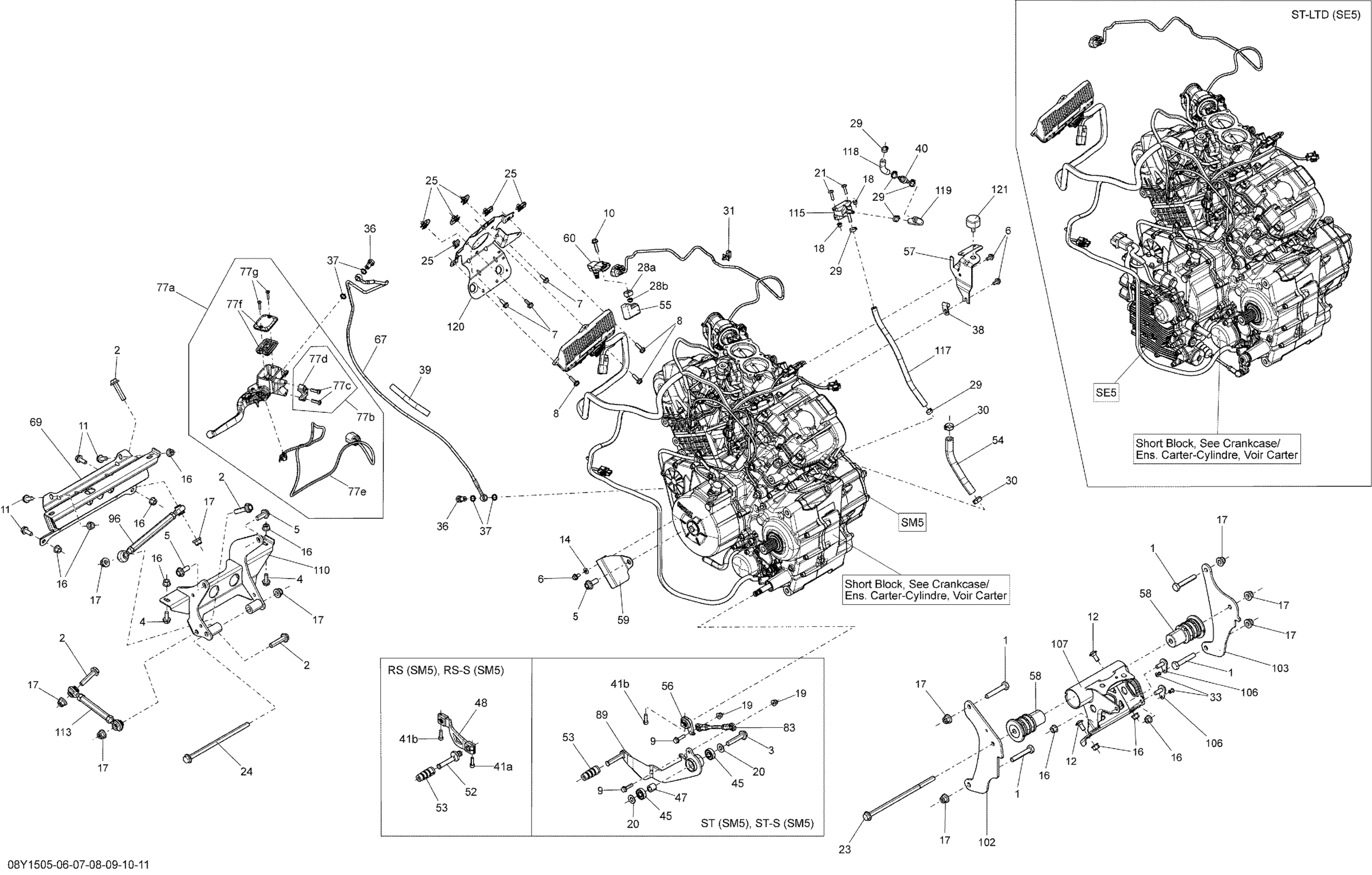

Can-Am Spyder ST SM5, 2015 Engine SM5_08Y1505 Diagram

#

Description
Price

1

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

2

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$7.00

3

Hex. Flange Screw M10 X 50

207505044

$4.00

4

Hex. Flange Screw M8 X 20

207682046

$1.82

5

Hex. Flange Screw M10 X 25

207602544

$1.33

6

Hex. Flange Screw M6 X 12

207661244

$1.70

7

Hex. Flange Screw M6 X 16

207661644

$0.61

8

Hex. Flange Screw M6 X 20

207662044

$1.66

9

Hex. Flange Screw M6 X 25

207662544

$0.53

10

Hex. Flange Screw M6 X 25

207662554

$1.48

11

Hex. Flange Screw M8 X 20

207682046

$1.82

12

Carriage Bolt M8 X 20

207782046

$2.00

14

Flat Washer

224061121

$0.44

16

Hex. Flange Nut M8

233081416

$1.63

17

Hex. Flange Elastic Nut M10

233201436

$1.74

18

Flange Elastic Nut M5

233251434

$1.66

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Flat Washer 10 mm

234001410

$0.98

21

Torx Screw M5 X 20

250000724

$1.39

23

Hex. Flange Screw M10 X 220

250000507

$8.00

24

Hex. Flange Screw M10 X 200

250000583

$11.00

25

Panel Nut M6 X 1.0

250100198

$1.73

28a

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

28b

Hex. Elastic Stop Nut M6

232561600

$0.92

29

Oetiker Clamp

293650042

$1.40

30

Oetiker Clamp

293650186

$3.33

31

Tie-Rap 173 mm

293750009

$0.85

33

Pop Rivet 3/16"

390402300

$0.75

36

Banjo Bolt

414920500

$8.49

37

Washer

414920600

$1.52

38

Bracket

415052400

$4.12

39

Was 409901700 Tubing (9 mm)

219704399

$79.97

40

Check Valve

513033469

$25.32

41a

Not Available As Spare Parts

XXX

Unavailable

41b

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

45

Bearing

705600458

$7.03

47

BUSHING - Call your local BRP dealership

705601083

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

End Clutch Pedal

707000456

$9.00

54

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

55

Foam Filter

707000586

$6.00

56

SHIFTER ARM - Call your local BRP dealership

707000649

Unavailable

57

Intake Support

707000756

$11.00

58

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

59

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

60

Pressure And Temperature Sensor

707000995

$70.82

67

HOSE - Call your local BRP dealership

707001050

Unavailable

69

Front Rubber Mount

707001056

$105.00

77a

Clutch Lever Ass'y | Includes 75 to 75e

707001084

$371.00

77b

Clamps | Includes 75a to 75b

719000049

$23.05

77c

Torx Screw M6 X 20

250000433

$7.31

77d

Clamps | Includes 75a to 75b

719000049

$23.05

77e

MICROSWITCH - Call your local BRP dealership

219800297

Unavailable

77f

Cap Set

219800096

$23.05

77g

Screw M4 X 20

415129356

$2.17

83

LINKAGE ROD - Call your local BRP dealership

707001128

Unavailable

89

LEVER - Call your local BRP dealership

707001226

Unavailable

96

CONNECTING ROD - Call your local BRP dealership

707001357

Unavailable

102

LH ENGINE SUPPORT - Call your local BRP dealership

707001238

Unavailable

103

RH ENGINE SUPPORT - Call your local BRP dealership

707001239

Unavailable

106

Attach

707001292

$19.00

107

Extention

707001331

Unavailable

110

FRONT ENGINE SUPPORT - Call your local BRP dealership

707001336

Unavailable

113

Connecting Rod

707001358

$69.00

115

Solenoid Valve

707001596

$79.00

117

HOSE 6,35MM ID - 485MM - Call your local BRP dealership

709000653

Unavailable

118

Hose

513033565

$29.20

119

Hose

513033565

$29.20

120

BRACKET - Call your local BRP dealership

707800469

Unavailable

121

Rubber Stopper

708000758

$9.37
