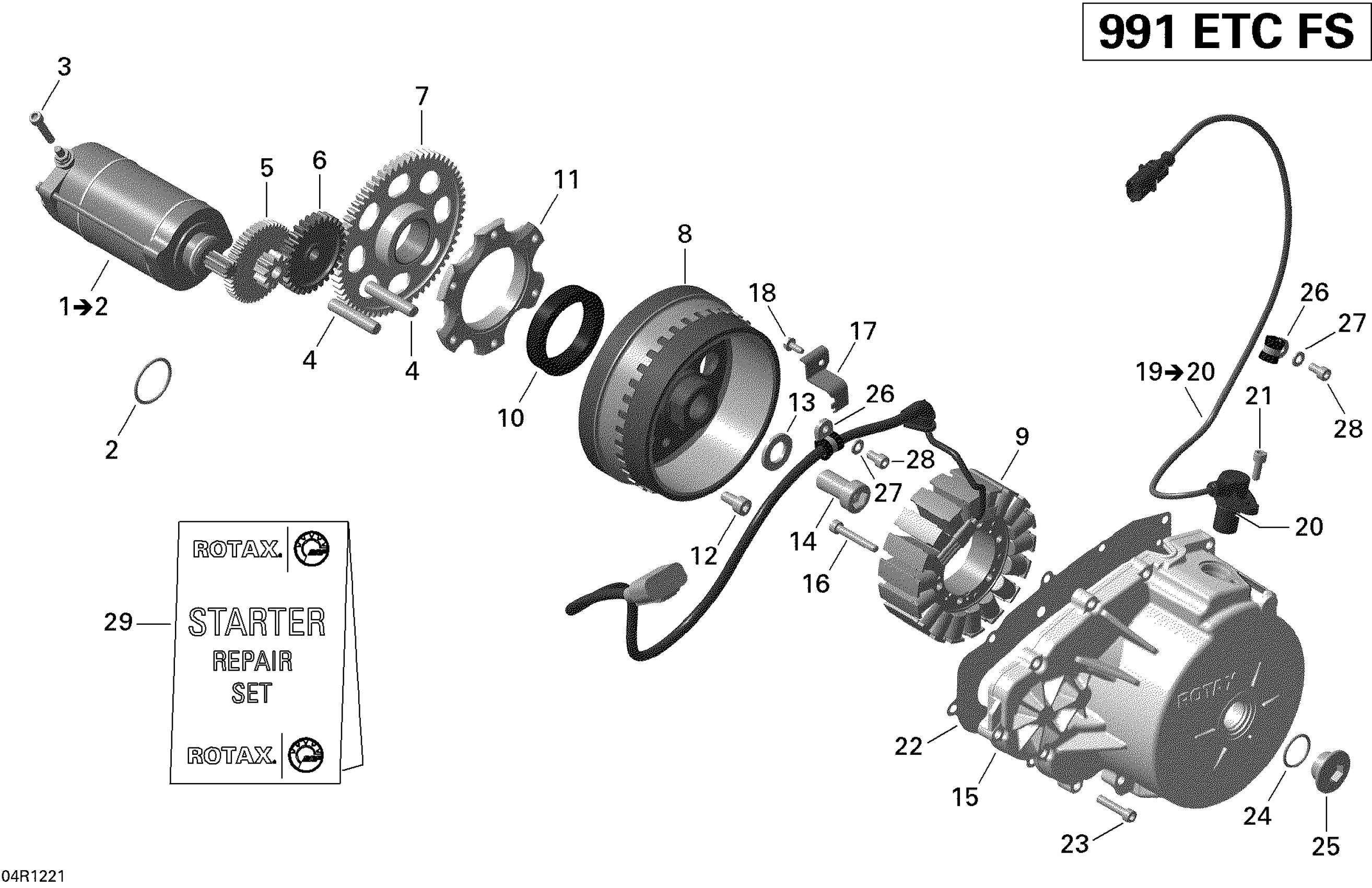

Can-Am Spyder RT SM5, 2012 Magneto And Electric Starter Diagram

#

Description
Price

1

Electric Starter Ass'y | Includes 1 to 2

420685965

$319.00

2

O-Ring

420250140

$7.05

3

Allen Screw M6 X 30

420840882

$4.00

4

Location Pin 10 M6x50

420229302

$3.11

5

Starter Double Gear 11/49 T

420634741

$155.97

6

Starter Intermediate Gear, 30 Teeth

420634605

$79.20

7

Gear, 64 Teeth

420634593

$155.00

8

Magneto

420685515

$731.00

9

Stator Plate

420685500

$436.00

10

Sprag Clutch

420659110

$210.00

11

Clutch Sprag Housing

420659129

$138.43

12

Socket Head Screw M8 X 16

420641594

$4.00

13

Shim

420627270

$3.38

14

Socket Head Screw M16 X 30

420241542

$9.00

15

Ignition Cover

420611311

$159.00

16

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

Unavailable

17

INNER CABLE COVER - Call your local BRP dealership

420251165

Unavailable

18

Taptite Screw M5 x 12

420941935

$1.99

19

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

20

O-Ring

420431580

$12.29

21

Socket Head Screw M6 x 16

420241237

$1.85

22

Gasket

420650341

$20.00

23

Socket Head Screw M6 X 30

205063044

$1.42

24

O-Ring

420430782

$4.41

25

Plug Screw M24X 1.5

420241633

$7.23

26

Open Clamp

414176000

$1.86

27

FLAT WASHER - Call your local BRP dealership

420827961

Unavailable

28

Socket Head Screw M6 X 11.5

420840379

$5.91

29

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable
