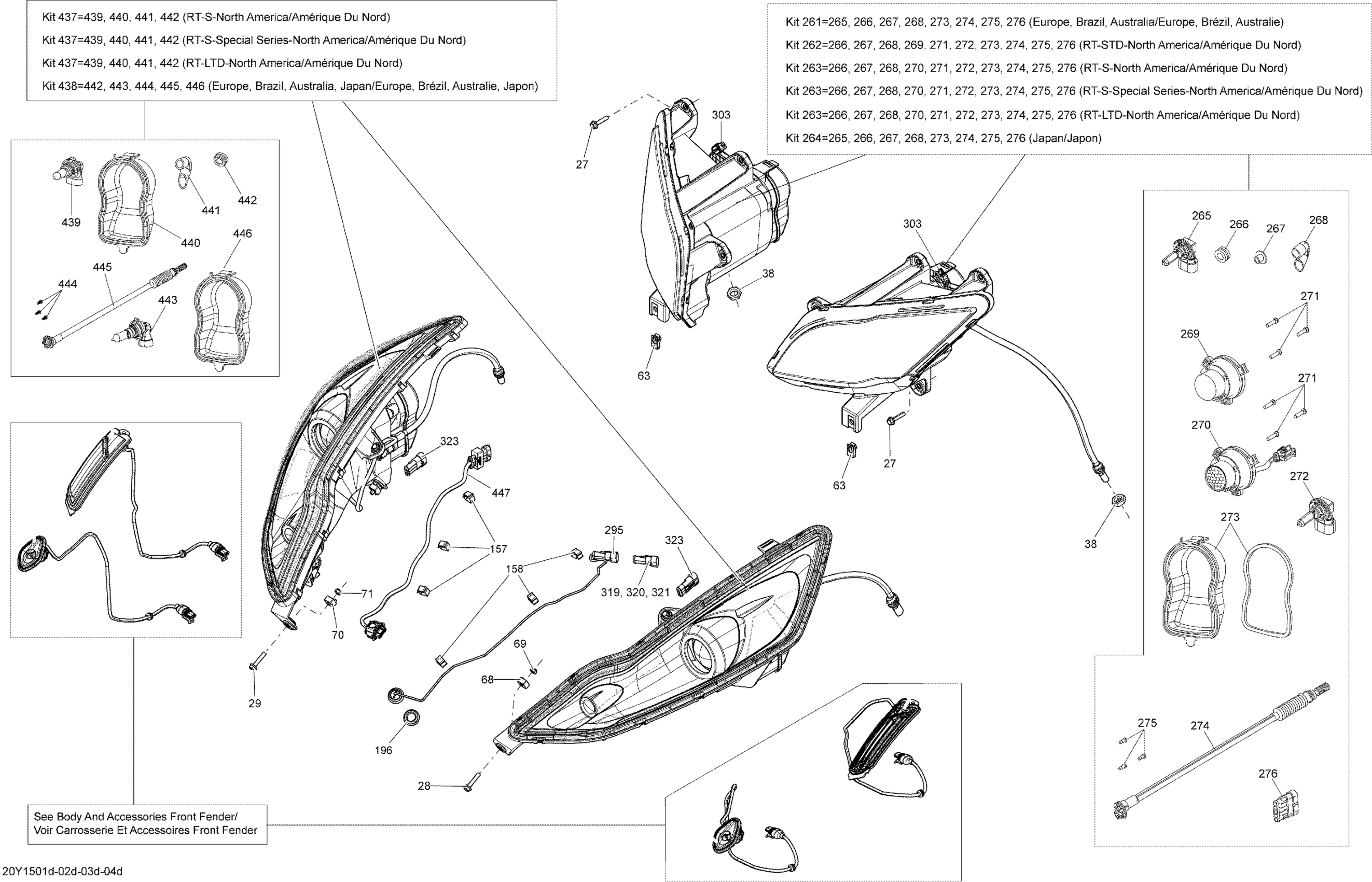

Can-Am Spyder RT SE6, 2015 Electrical System Beam_20Y1501d Diagram

#

Description
Price

27

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

28

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

29

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

38

Hex. Jam Nut M14

232170411

$1.25

63

Panel Nut M6 X 1.0

250100198

$1.73

68

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

69

Hex. Elastic Stop Nut M6

232561600

$0.92

70

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

71

Hex. Elastic Stop Nut M6

232561600

$0.92

157

Clip

414227300

$1.45

158

Not Available As Spare Parts

XXX

Unavailable

196

Cap

705003464

$10.42

261

LH High Beam Ass'y, Chromed | Includes 265 to 268 and 273 to 276, Europe, Brazil, Australia

710001384

$350.00

261

RH High Beam Ass'y | Includes 265 to 268 and 273 to 276, Europe, Brazil, Australia

710001386

$350.00

262

LH Bi-Halogen Beam Ass'y | Includes 266 to 269 and 271 to 276, North America

710001536

$560.00

262

RH Bi-Halogen Beam Ass'y | Includes 266 to 269 and 271 to 276, North America

710001537

$540.00

263

Not Available As Spare Parts

XXX

Unavailable

264

LH High Beam Ass'y | Model-Japan

710004261

$520.00

264

RH High Beam Ass'y | Model-Japan

710004262

$520.00

265

Halogen Bulb H9 65W

219800140

$27.00

266

Anti-Vibration Bushing

219800100

$11.00

267

Spacer

219800099

$16.00

268

Rubber Vent

219800101

$21.00

269

Light Housing

710002031

$26.00

270

Auxilary Light, LED

710003096

$132.00

271

Chromed Screw 4X19

219800134

$6.00

272

Halogen Bulb HB3 65W

219800136

$24.00

273

Cover With Seal

219800174

$19.00

274

Adjustement Cable

219800111

$84.00

275

Chromed Screw 4X13

219800110

$13.00

276

Housing | Europe Models

710000779

$23.05

295

Not Available As Spare Parts

XXX

Unavailable

303

Packard Connector With Plug | Brazil

710002162

$13.00

303

Packard Connector With Plug | Brazil

710002162

$13.00

303

Packard Connector With Plug | Brazil

710002162

$13.00

303

Packard Connector With Plug | Brazil

710002162

$13.00

319

Connector Plug

710004906

$13.00

320

Female Housing, 2 Circuits

409209500

$13.48

321

Plug

409013700

$4.42

323

Connector Plug

710004901

$13.00

437

Not Available As Spare Parts

XXX

Unavailable

438

LH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003259

$490.00

438

RH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003258

$490.00

439

Halogen Bulb H8 12V 35W

219800149

$41.51

440

Cover With Seal

219800174

$19.00

441

Anti-Vibration Bushing

219800100

$11.00

442

Rubber Vent

219800101

$21.00

443

Halogen Bulb HB3 65W

219800136

$24.00

444

Chromed Screw 4X13

219800110

$13.00

445

Adjustement Cable

219800105

$84.00

446

Cover With Seal

219800174

$19.00

447

AAPTS Harness

710004764

$17.00
