Description

Price

1

Hexagonal Head Screw

210262050

$2.11

2

Hex. Jam Nut M8

232180600

$0.67

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Flat Washer 8 mm

234082410

$1.47

8

Torx Screw K50 X 16

250000720

$1.69

9

Hex. Flange Screw M6 X 60

250000778

$4.44

10

Torx Truss Screw M6 X 20

250000488

$2.11

11

Ball Head Stud

250300039

$7.51

12

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

16

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

17

Lug

705002223

$25.99

18

Latch

705007379

$28.99

19

Seat Cable

708001743

$53.99

20

Gaz Shock

708000658

$83.99

21

Spacer

708000664

$6.49

23

Rubber Stopper

708000759

$4.19

24

Passenger Detection Switch

710008103

$76.99

25

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

26

Hex. Flange Screw M6 X 16

207661644

$0.74

29

BLACK SEAT ASS'Y - Call your local BRP dealership

708001570

Unavailable

34

Black Cap

708001633

$10.99

40

Passenger Backrest Kit Ass'y

219800454

$269.99

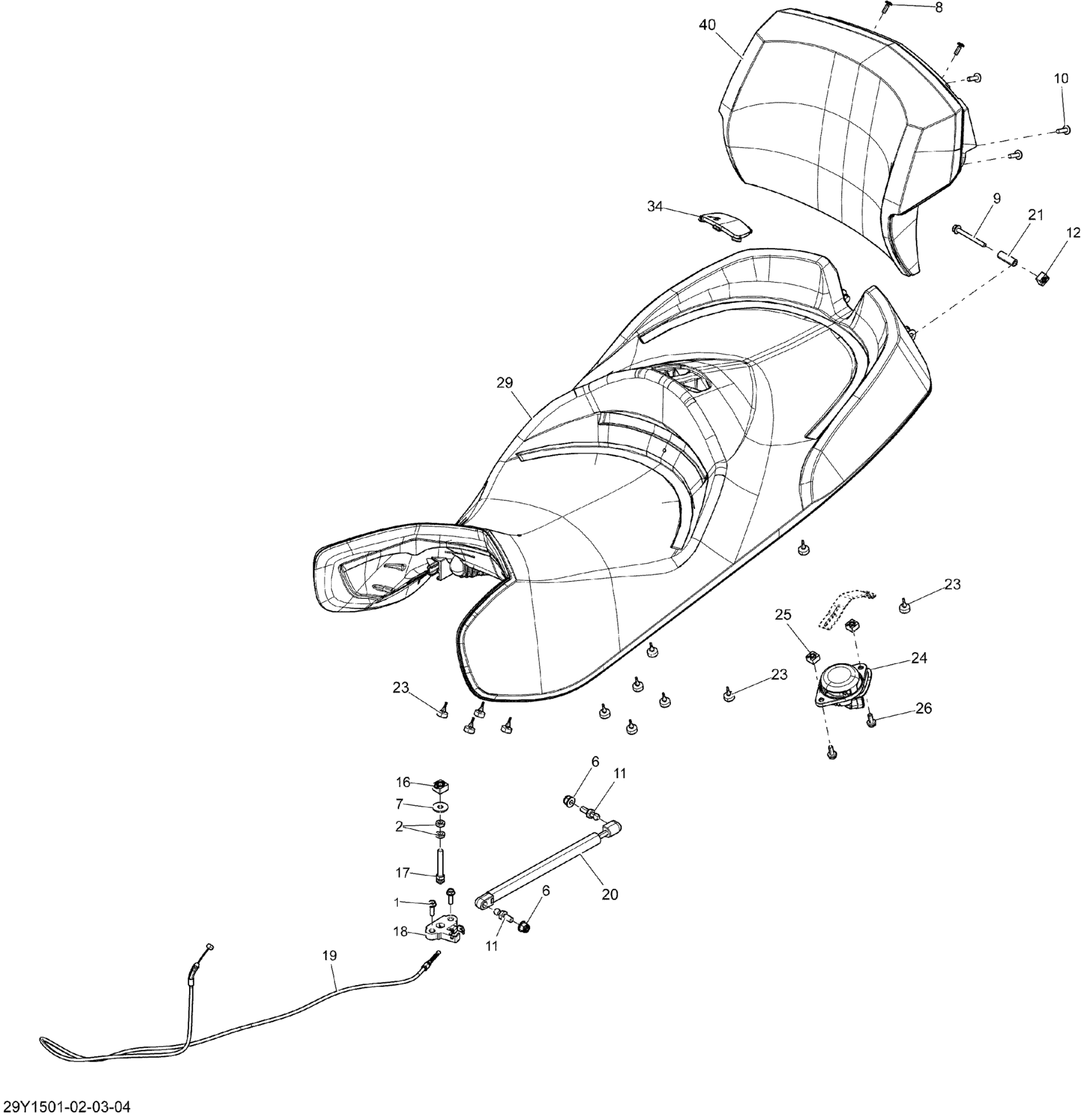

Can-Am Spyder RT SE6, 2015 Seat _29Y1501 Diagram
