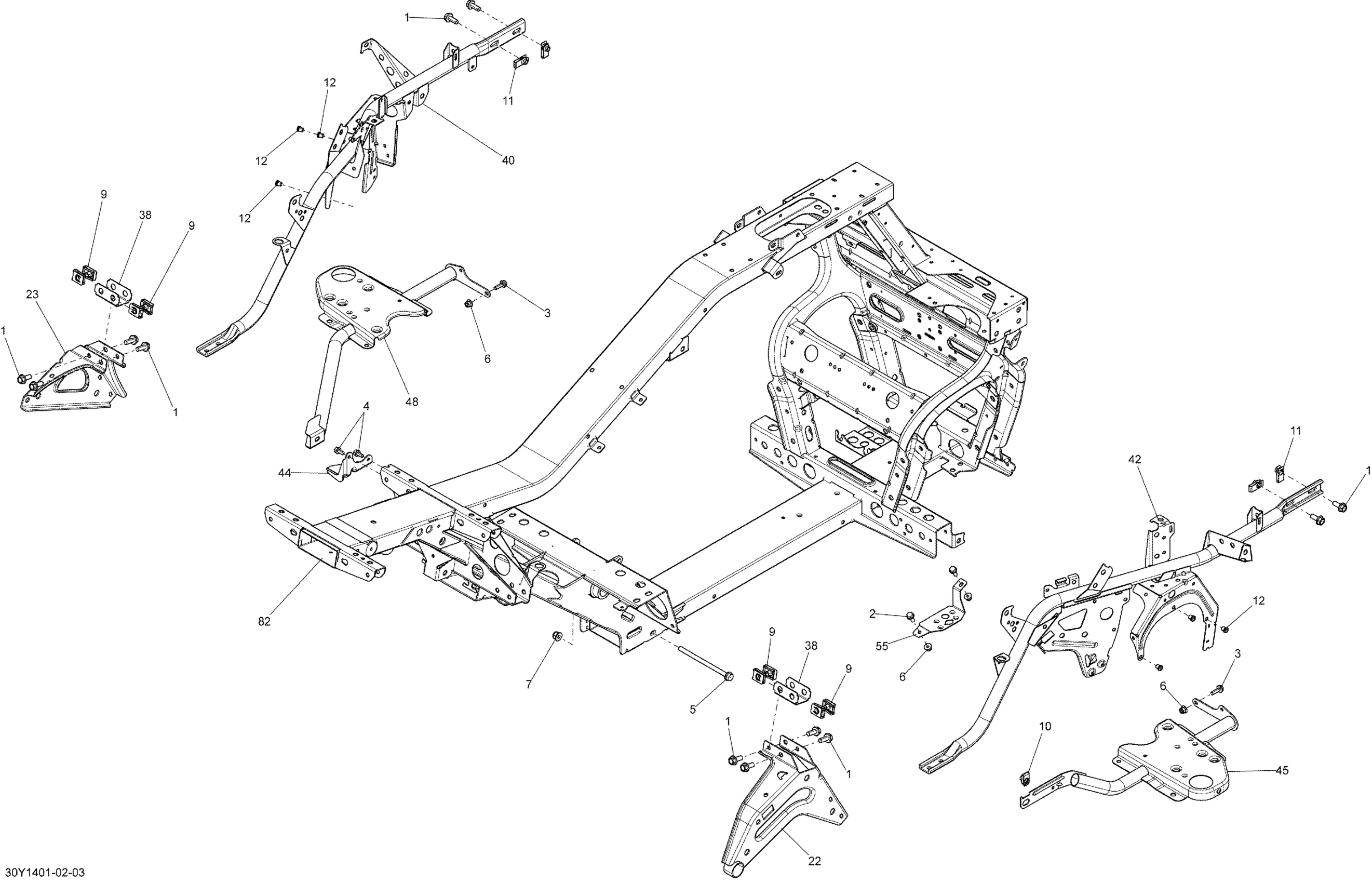

Can-Am Spyder RT SE6, 2014 Frame _30Y1401 Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

1

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2

Hex. Flange Screw M6 X 16

207661646

$1.36

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 12

210261250

$1.90

5

Hex. Flange Screw M8 X 130

230683034

$7.51

6

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Panel Nut M8 X 1.25

250100069

$4.29

10

Panel Nut M8

250100111

$4.29

11

Panel Nut M8 X 1.25

250100118

$2.09

12

Insert M5 X 0.8

293450268

$2.09

22

Rear Support RH

705203959

$99.99

23

Rear Support LH

705203969

$49.99

38

U-Bracket

705202484

$19.49

40

LH Painted Lateral Support Ass'y

705203017

$209.99

42

RH Painted Lateral Support Ass'y

705203016

$209.99

44

Stopper Swing Arm

705202587

$28.99

45

RH Painted Lower Lateral Support

705202625

$104.99

48

LH Painted Lower Lateral Support

705202626

$85.99

55

Latch Support

705205078

$15.49

82

Frame

705204866

$1,389.99
