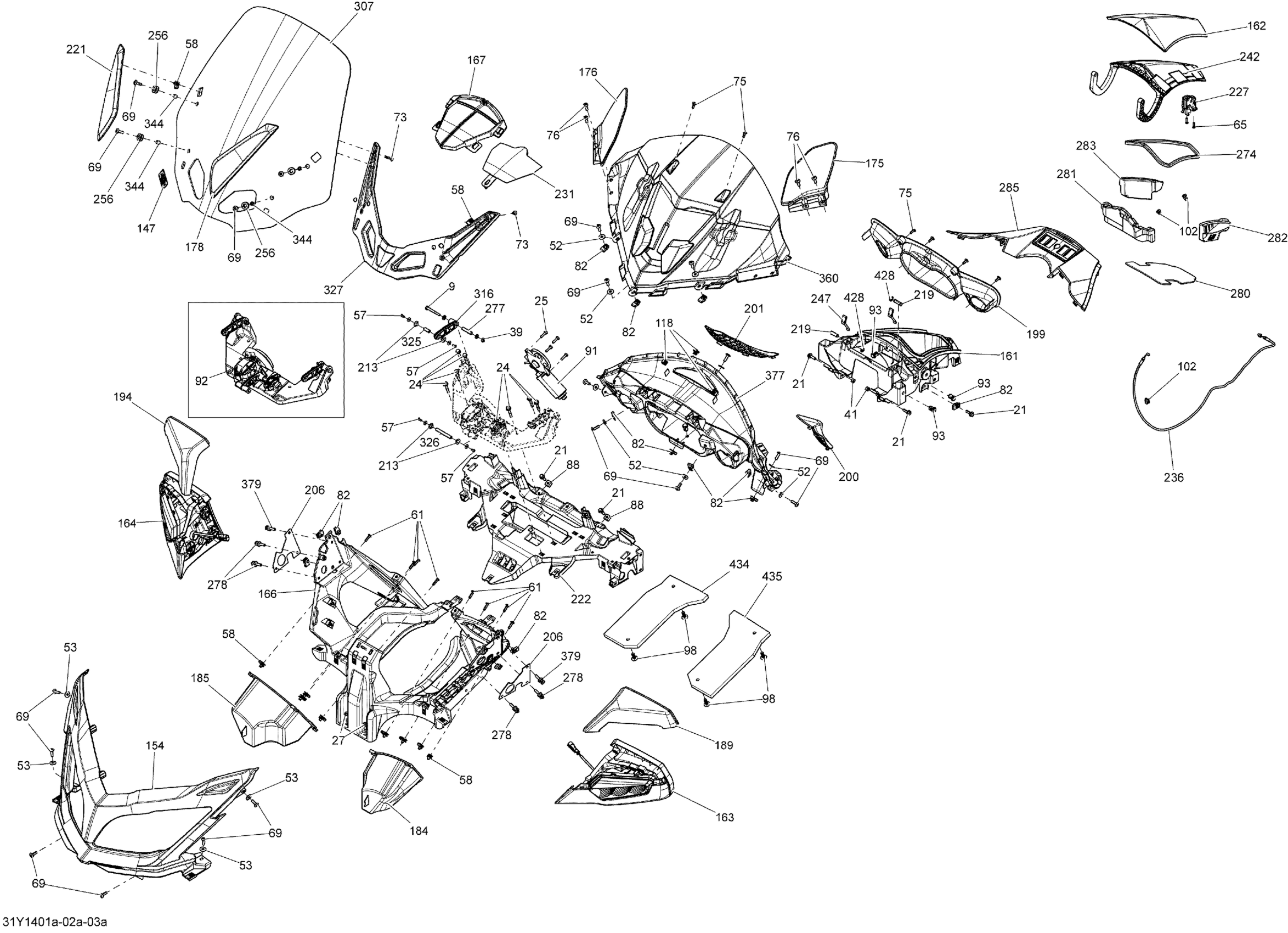

Can-Am Spyder RT SE6, 2014 Body And Accessories Windshield_31Y1401a Diagram

#

Description
Price

9

Hex. Screw M6 X 50

207065060

$1.85

21

Hex. Flange Screw M6 X 20

207662044

$1.66

24

Hex. Flange Screw M6 X 35

207663544

$0.74

25

Not Available As Spare Part - Friction Washer

Unavailable

27

Hex. Flange Screw M6 X 16

210261650

$1.22

39

Elastic Stop Nut M6, Brass

232561200

$3.51

41

Square Nut M6

232862412

$1.18

52

Flat Washer 6 mm

234062410

$0.64

53

Stainless Steel Flat Washer

234062670

$1.74

57

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

58

Panel Nut M5 X 0.8

250000958

$3.48

61

Torx Screw M5 X 20

250000724

$1.39

65

Flange Torx Screw K40 X 16

250000287

$1.74

69

Torx Truss Screw M6 X 20

250000350

$4.39

73

Torx Screw M5 X 25

250000455

$3.00

75

Torx Screw, Nylon Patch, M5 X 14

250000487

$1.56

76

Torx Truss Screw M6 X 20

250000488

$1.74

82

Panel Nut M6 X 1.0

250100198

$1.73

88

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

91

Windshield Motor

278002579

$184.57

92

Windshield Motor Support Ass'y

705007069

$750.00

93

Tuflok Plastic Rivet

293150230

$1.21

98

Black, Dart

293730006

$0.81

102

Tie-Rap 180 mm

414115200

$0.09

118

Edge Clip

517302785

$0.70

147

CAUTION DECAL, WINDSHIELD - Call your local BRP dealership

704903339

Unavailable

154

TIMELESS BLACK MET FRONT CONSOLE - Call your local BRP dealership | Model-Timeless Black Met

705007573

Unavailable

154

Front Console,Vegas White B-313 | Model-White

705009172

$260.00

161

Glove Box

705002726

$80.00

162

TIMELESS BLACK MET GLOVE BOX COVER - Call your local BRP dealership | Model-Timeless Black Met

705007590

Unavailable

162

Glove Box Cover, Vegas White B-313 | Model-White

705006973

$170.00

163

LH Mirror Assembly | Includes 1 to 9

708400146

$307.00

164

RH Mirror Assembly | Includes 10 to 18

708400147

$307.00

166

Console Support

705002743

$100.00

167

Guide Chart Support

705002746

$28.00

175

LH Upper Air Deflector

705002841

$46.00

176

RH Upper Air Deflector

705002842

$46.00

178

Black Deep, LH Windshield Cap

705007411

$44.00

184

LH SPEAKER HOUSING - Call your local BRP dealership

705003092

Unavailable

185

SPEAKER RH - Call your local BRP dealership

705009165

Unavailable

189

TRIM_REAR VIEW MIRROR UP L B-302 - Call your local BRP dealership | Model-RT STD Timeless Black Met

705007576

Unavailable

189

LH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

705007405

$145.00

194

TRIM_REAR VIEW MIRROR UP R B-302 - Call your local BRP dealership | Model-RT STD Timeless Black Met

705007577

Unavailable

194

RH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

705007406

$140.00

199

Dashboard Bezel

705003163

$54.00

200

LH SPEAKER GRILL - Call your local BRP dealership

705003199

Unavailable

201

RH SPEAKER GRILL - Call your local BRP dealership

705003200

Unavailable

206

Console Support Plate

705003779

$28.00

213

Sleeve

705003267

$9.00

219

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

221

Black Deep, RH Windshield Cap

705007412

$44.00

222

Console Cross-Support

705003384

$83.00

227

Push Latch

705007380

$63.00

231

Guide Chart

705009360

$28.00

236

Glove Box Cable

705007381

$25.00

242

GLOVE BOX DOOR ASS'Y - Call your local BRP dealership

705006111

Unavailable

247

Glove Box Spring

705003748

$26.00

256

Windshield Grommet

705003756

$6.00

274

NEOPRENE SEAL, METER - Call your local BRP dealership

219800143

Unavailable

277

Inner Sleeve | Order 219800321

NLA

Unavailable

278

Spherical Head Stud

705004322

$17.00

280

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

281

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

282

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

283

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

285

Center Panel

705004461

$39.00

307

Windshield

705004740

Unavailable

316

Rear Arm Ass'y

219800432

$84.00

325

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

326

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

327

WINDSHIELD SUPPORT - Call your local BRP dealership

705005405

Unavailable

344

Sleeve

705005756

$13.00

360

Upper Console

705006186

$180.00

377

DASHBOARD ASS'Y - Call your local BRP dealership

705006655

Unavailable

379

Spherical Head Stud

705004323

$17.00

428

Circlip

705600272

$7.69

434

RH Acoustic Foam

707800341

$18.00

435

LH Acoustic Foam

707800349

$18.00
