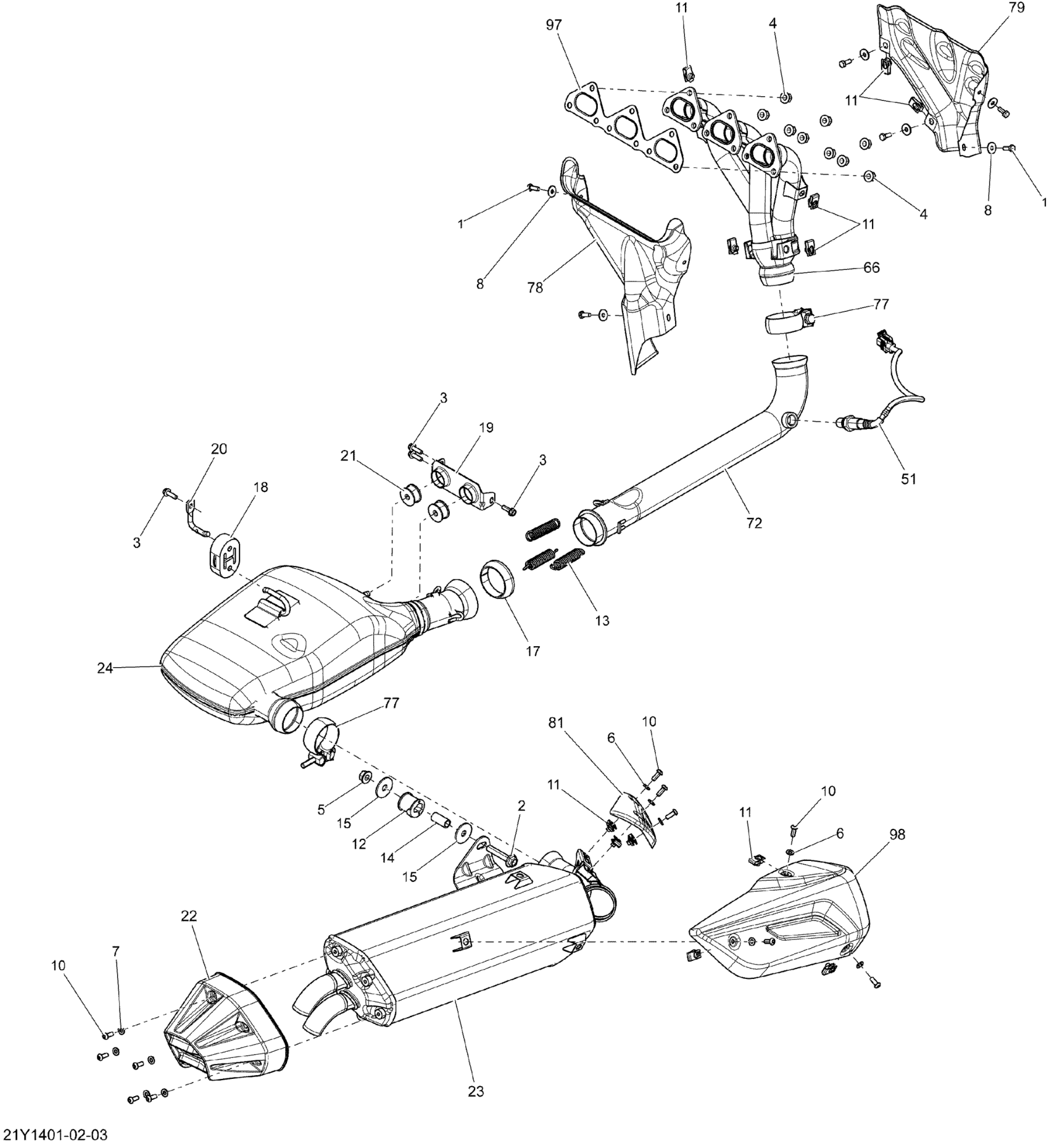

Can-Am Spyder RT SE6, 2014 Exhaust System _21Y1401 Diagram

#

Description
Price

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

2

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

3

Hexagonal Head Screw

210262050

$2.11

4

Hex. Flange Nut M8

233081416

$1.15

5

Hex. Flange Nut M10

233101600

$5.29

6

Stainless Flat Washer M6

234061600

$0.33

7

Stainless Flat Washer M6

234061600

$0.33

8

Flat Washer M6, Stainless

234062600

$0.77

10

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

11

Panel Nut M6 X 1.0

250100198

$2.11

12

Anti-Vibration Rubber

293830162

$13.22

13

Spring

415107100

$6.35

14

Bushing | Includes 240d to 240d1

503189282

$4.34

15

Washer 10 mm

506150000

$2.74

17

Exhaust Gasket

514054174

$28.49

18

Rubber Bumper

707600638

$15.81

19

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

20

RETAINING ROD - Call your local BRP dealership

707600666

Unavailable

21

Anti-Vibration Rubber

707600702

$8.57

22

Crystal Silver Muffler End Cap

707600867

$82.49

23

KIT MUFFLER ASSY - Call your local BRP dealership | Model-RT STD

219800438

Unavailable

24

Primary Muffler

707601881

$1,229.49

51

Oxygen Sensor

707600872

$144.99

66

Exhaust Manifold | Includes 40 to 40j

707601922

$769.99

72

EXHAUST TUNED PIPE - Call your local BRP dealership

707600942

Unavailable

77

Exhaust Clamp

707600980

$24.99

78

Heat Shield interior

707603641

$53.99

79

External Heat Deflector

707601029

Unavailable

81

Crystal Silver Heat Shield

707601132

$24.99

97

Exhaust Seal

707601857

$19.49

98

Crystal Silver Heat Shield

707601382

$76.49
