Partiron

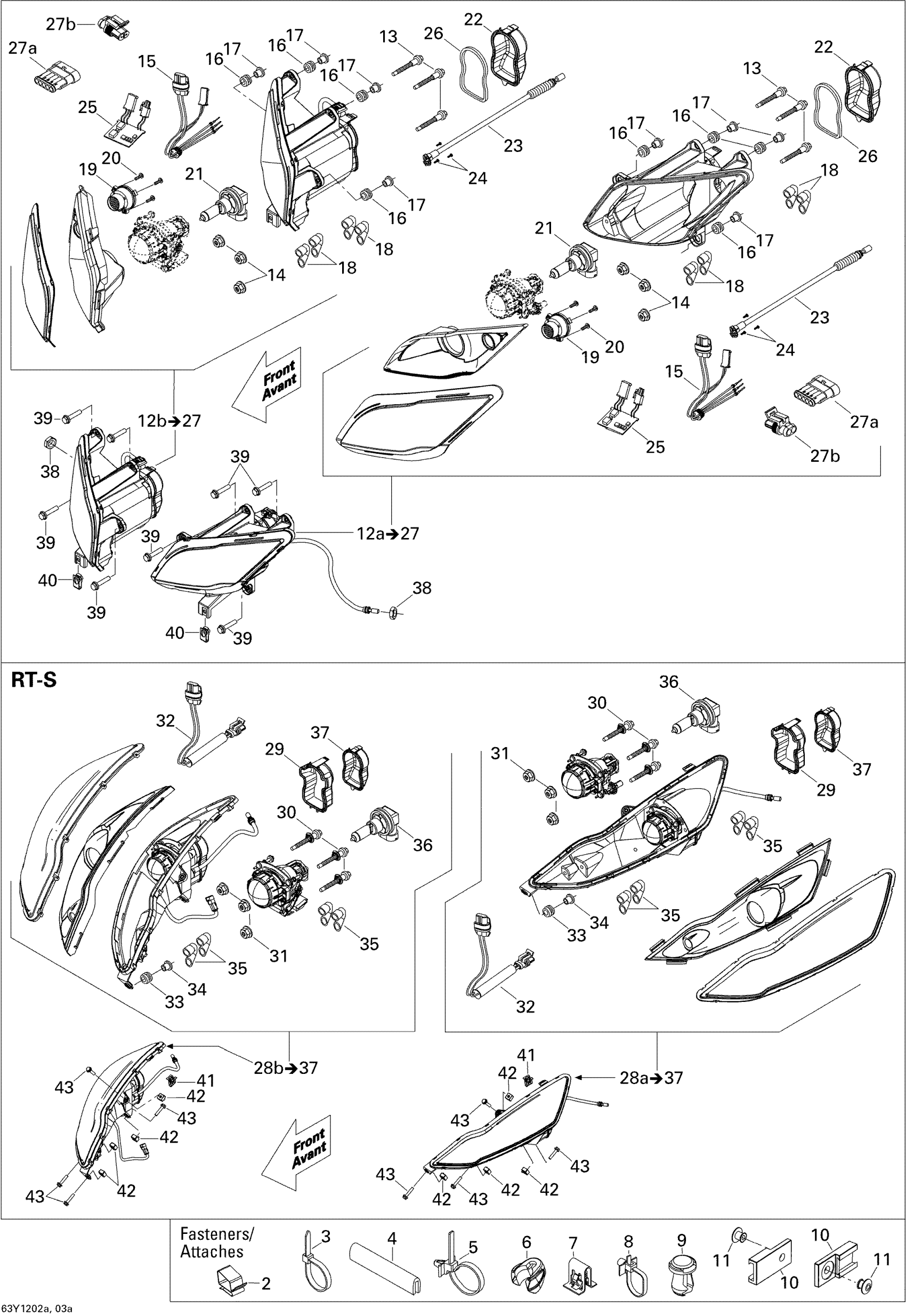

Can-Am Spyder RT SE5, 2012 Lighting System , North America Diagram

#

Description
Price

2

Clip

414227300

$1.45

3

Tie-Rap 180 mm

414115200

$0.09

3

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

3

Tie Wrap 142 mm

293750002

$0.88

4

Trim 1000Mm Long

219704354

$14.74

5

Tie-Rap 173 mm

293750009

$0.85

6

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7

Edge Clip

517302785

$0.70

8

UNLOCKING CLIP - Call your local BRP dealership

710002197

Unavailable

9

Tuflok Plastic Rivet

293150230

$1.21

10

Clip

270000141

$8.33

11

Pop Rivet 3/16"

390402400

$0.25

12a

LH Bi-Halogen Beam Ass'y | Includes 266 to 269 and 271 to 276, North America

710001536

$560.00

12a

LH Bi-Halogen Beam Ass'y | Includes 266 to 268 and 270 to 276, North America

710003098

$560.00

12b

RH Bi-Halogen Beam Ass'y | Includes 266 to 269 and 271 to 276, North America

710001537

$540.00

12b

RH Bi-Halogen Beam Ass'y | Includes 266 to 269 and 271 to 276, North America

710001537

$540.00

12b

RH Bi-Halogen Beam Ass'y | Includes 266 to 268 and 270 to 276, North America

710003097

$560.00

12b

RH High Beam Ass'y | Includes 265 to 268 and 273 to 276, Europe, Brazil, Australia

710001386

$350.00

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Anti-Vibration Bushing

219800100

$11.00

16

Anti-Vibration Bushing

219800100

$11.00

16

Anti-Vibration Bushing

219800100

$11.00

16

Anti-Vibration Bushing

219800100

$11.00

17

Spacer

219800099

$16.00

17

Spacer

219800099

$16.00

17

Spacer

219800099

$16.00

17

Spacer

219800099

$16.00

18

Rubber Vent

219800101

$21.00

18

Rubber Vent

219800101

$21.00

18

Rubber Vent

219800101

$21.00

18

Rubber Vent

219800101

$21.00

19

Light Housing

710002031

$26.00

19

Light Housing

710002031

$26.00

19

Auxilary Light, LED

710003096

$132.00

20

Chromed Screw 4X19

219800134

$6.00

20

Chromed Screw 4X19

219800134

$6.00

20

Chromed Screw 4X19

219800134

$6.00

20

Chromed Screw 4X13

219800110

$13.00

21

Halogen Bulb HB3 65W

219800136

$24.00

21

Halogen Bulb HB3 65W

219800136

$24.00

21

Halogen Bulb HB3 65W

219800136

$24.00

21

Halogen Bulb H9 65W

219800140

$27.00

22

Cover With Seal

219800174

$19.00

22

Cover With Seal

219800174

$19.00

22

Cover With Seal

219800174

$19.00

23

Adjustement Cable

219800111

$84.00

23

Adjustement Cable

219800111

$84.00

23

Adjustement Cable

219800111

$84.00

23

Adjustement Cable

219800111

$84.00

24

Chromed Screw 4X13

219800110

$13.00

24

Chromed Screw 4X13

219800110

$13.00

24

Chromed Screw 4X13

219800110

$13.00

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Cover With Seal

219800174

$19.00

26

Cover With Seal

219800174

$19.00

26

Cover With Seal

219800174

$19.00

26

Cover With Seal

219800174

$19.00

26

Cover With Seal

219800174

$19.00

27a

Housing | Europe Models

710000779

$23.05

27a

Housing | Europe Models

710000779

$23.05

27a

Housing | Europe Models

710000779

$23.05

27a

Housing | Europe Models

710000779

$23.05

27b

Connector Plug

710004906

$13.00

28a

LH Fog Light Ass'y, Chrome | Includes 439 to 442, North America

710003256

$408.00

28b

RH Fog Light Ass'y, Chrome | Includes 439 to 442, North America

710003257

$408.00

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Anti-Vibration Bushing

219800100

$11.00

33

Anti-Vibration Bushing

219800100

$11.00

34

Spacer

219800099

$16.00

34

Spacer

219800099

$16.00

35

Rubber Vent

219800101

$21.00

35

Rubber Vent

219800101

$21.00

36

Halogen Bulb H8 12V 35W

219800149

$41.51

36

Halogen Bulb H8 12V 35W

219800149

$41.51

37

Cover With Seal

219800174

$19.00

37

Cover With Seal

219800174

$19.00

38

Hex. Jam Nut M14

232170411

$1.25

39

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

40

Panel Nut M6 X 1.0

250100198

$1.73

41

Edge Clip

517302785

$0.70

42

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

43

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74
