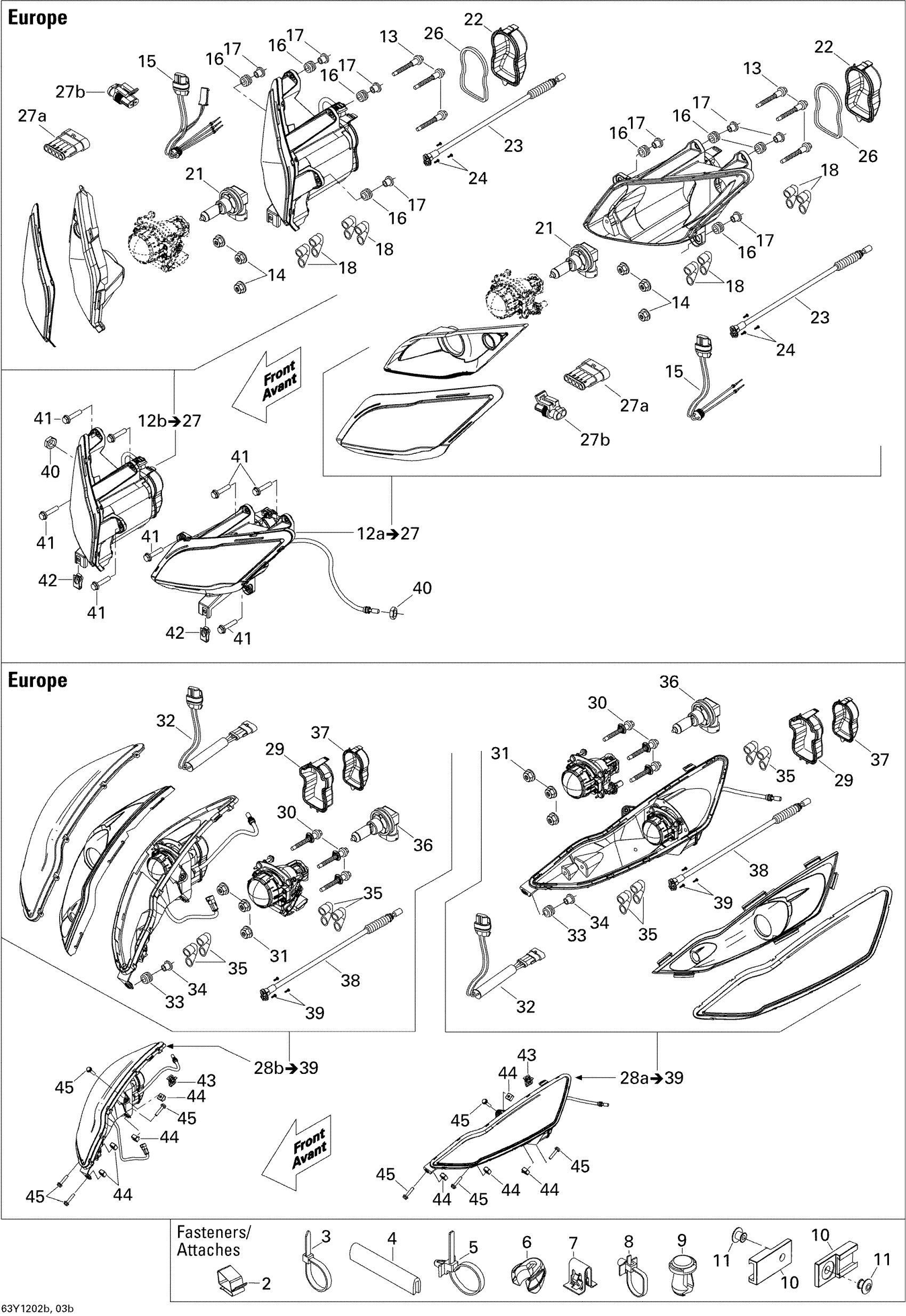

Can-Am Spyder RT SE5, 2012 Lighting System , Europe Diagram

#

Description
Price

2

Clip

414227300

$1.45

3

Tie Wrap 142 mm

293750002

$0.88

3

Tie-Rap 180 mm

414115200

$0.09

3

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4

Trim 1000Mm Long

219704354

$14.74

5

Tie-Rap 173 mm

293750009

$0.85

6

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

7

Edge Clip

517302785

$0.70

8

UNLOCKING CLIP - Call your local BRP dealership

710002197

Unavailable

9

Tuflok Plastic Rivet

293150230

$1.21

10

Clip

270000141

$8.33

11

Pop Rivet 3/16"

390402400

$0.25

12a

LH High Beam Ass'y, Chromed | Includes 265 to 268 and 273 to 276, Europe, Brazil, Australia

710001384

$350.00

12b

RH High Beam Ass'y | Includes 265 to 268 and 273 to 276, Europe, Brazil, Australia

710001386

$350.00

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Anti-Vibration Bushing

219800100

$11.00

17

Spacer

219800099

$16.00

18

Rubber Vent

219800101

$21.00

21

Halogen Bulb H9 65W

219800140

$27.00

22

Cover With Seal

219800174

$19.00

23

Adjustement Cable

219800111

$84.00

24

Chromed Screw 4X13

219800110

$13.00

26

Cover With Seal

219800174

$19.00

27a

Housing | Europe Models

710000779

$23.05

27b

Connector Plug

710004906

$13.00

28a

LH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003259

$490.00

28b

RH Low Beam Ass'y, Chrome | Includes 442 to 446, Europe, Brazil, Australia, Japan

710003258

$490.00

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Anti-Vibration Bushing

219800100

$11.00

34

Spacer

219800099

$16.00

35

Rubber Vent

219800101

$21.00

36

Halogen Bulb

415129249

$39.97

37

Cover With Seal

219800174

$19.00

38

Adjustement Cable

219800105

$84.00

39

Chromed Screw 4X13

219800110

$13.00

40

Hex. Jam Nut M14

232170411

$1.25

41

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

42

Panel Nut M6 X 1.0

250100198

$1.73

43

Edge Clip

517302785

$0.70

44

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

45

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74
