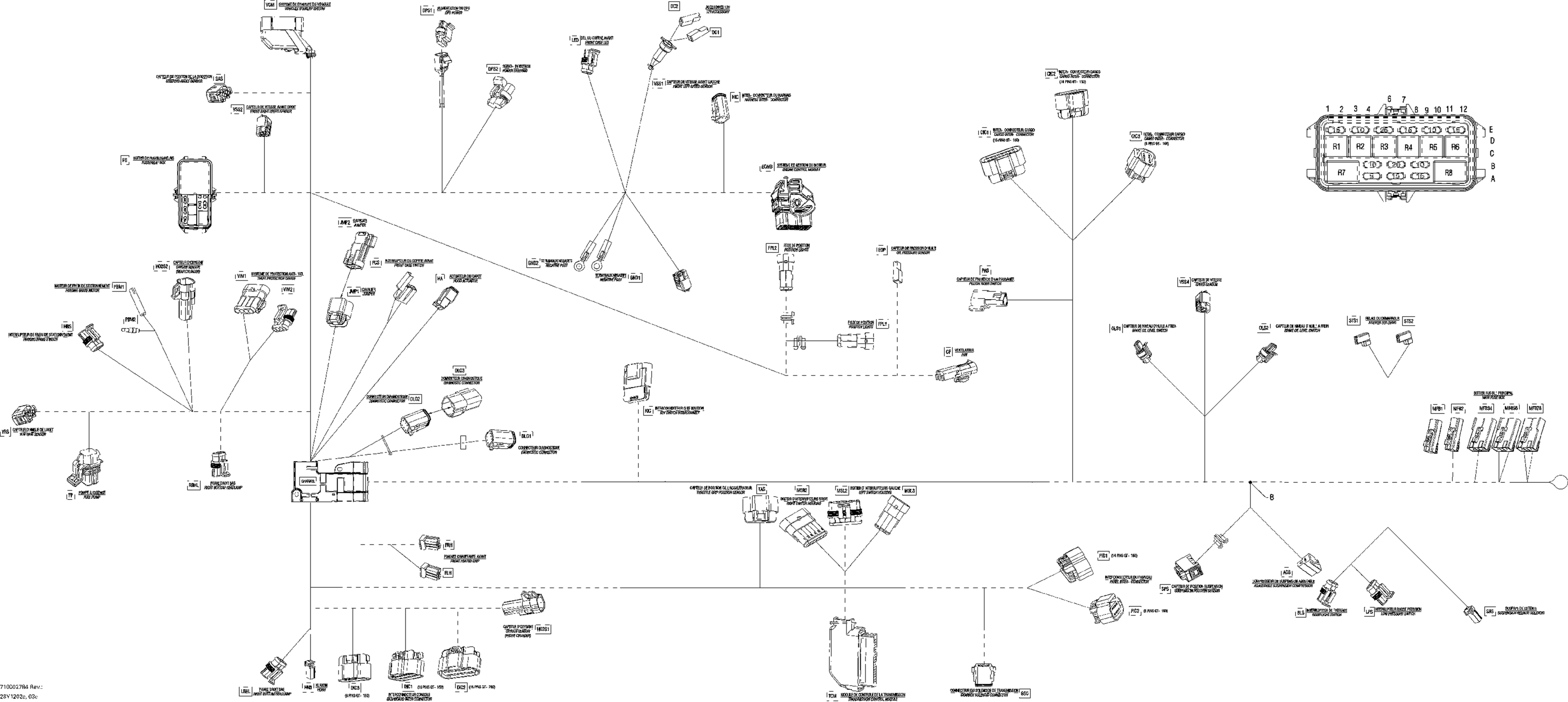

Can-Am Spyder RT SE5, 2012 Electrical Harness SE5 Diagram

#

Description
Price

1

WIRING HARNESS_CHASSIS - Call your local BRP dealership | SE5

710002784

Unavailable

ACS

Female Terminal

515175282

$6.43

ACS

Female Terminal Housing

515176550

$6.43

BLS

Female Housing, 2 Circuits

409209500

$13.48

BLS

Female Terminal

710001340

$5.11

BLS

Wire Seal

515176621

$7.00

CF

Male Terminal

409004300

$5.46

CF

Female Housing, 2 Circuits

278000217

$7.59

CF

Wire Seal

710000504

$4.60

CIC1

Terminal

710001229

$3.02

CIC1

Terminal

710001228

$2.72

CIC1

Housing

710001226

$11.83

CIC1

Seal Wire

710001332

$2.72

CIC2

Terminal

710001229

$3.02

CIC2

Terminal

710001228

$2.72

CIC2

Cap

710001225

$7.27

CIC2

Seal Wire

710001332

$2.72

CIC2

Housing

710001951

$12.91

CIC3

Seal

710001233

$2.55

CIC3

Terminal

710001229

$3.02

CIC3

Cap

710001225

$7.27

CIC3

Housing

710001928

$14.97

D2

Diode

409012700

$10.83

DC1

Female Terminal

409010100

$5.46

DC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

DC2

Female Terminal

409010100

$5.46

DC2

Female Terminal Housing, 1 Circuit

409010400

$7.48

DC2

Tie Wrap 142 mm

293750002

$0.88

DC2

CAP - Call your local BRP dealership

710000670

Unavailable

DIC1

Terminal

710001229

$3.02

DIC1

Terminal

710001228

$2.72

DIC1

Housing

710001226

$11.83

DIC1

Cap

710001225

$7.27

DIC1

Seal Wire

710001332

$2.72

DIC2

Wire Seal

278002186

$4.51

DIC2

Female Terminal

278002187

$5.04

DIC2

Terminal

710001873

$2.02

DIC2

HOUSING - Call your local BRP dealership

710001874

$13.00

DIC2

Plug

710002075

$2.47

DIC3

Housing

710001232

$13.80

DIC3

Terminal

710001229

$3.02

DIC3

Terminal

710001228

$2.72

DIC3

Seal Wire

710001332

$2.72

DLC1

Male Housing, 6 Circuits

515175673

$13.05

DLC1

Male Wedge, 6 Circuits

515175678

$5.11

DLC1

Female Terminal

278001665

$3.73

DLC2

Sealing Cap

293000052

$2.55

DLC2

Male Housing, 6 Circuits

515175673

$13.05

DLC2

Male Wedge, 6 Circuits

515175678

$5.11

DLC2

Tie-Rap 180 mm

414115200

$0.09

DLC2

Female Terminal

278001665

$3.73

DLC3

Sealing Cap

293000052

$2.55

DLC3

Male Terminal Housing, 6 Circuits

515175668

$14.02

DPS1

Housing

710001161

$9.15

DPS1

Lock

710001162

$3.28

DPS1

Wire Seal

710001163

$5.10

DPS1

Female Terminal

710001164

$5.92

DPS1

Cap

710001114

$16.89

DPS1

Cap

710001225

$7.27

DPS2

Female Terminal

710001160

$5.14

DPS2

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS2

SEAL - Call your local BRP dealership

710001935

Unavailable

ECMB

Tie Wrap 142 mm

293750002

$0.88

ECMB

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECMB

Female Terminal

710001589

$1.79

ECMB

Female Terminal

710001590

$1.69

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Plug

710001592

$2.12

ECMB

Female Terminal

710001727

$2.55

EOP

Female Terminal

409010100

$5.46

EOP

Female Terminal Housing, 1 Circuit

409010400

$7.48

FB

Wire Seal

278000999

$2.55

FB

Seal

415128501

$1.51

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 20 Amperes

710000746

$6.77

FB

Little Fuse, 20 Amperes

710000746

$6.77

FB

Fuse Box Base Ass´y

415129856

$41.57

FB

Female Terminal

710000836

$5.46

FB

Female Terminal

710000837

$4.32

FB

Cap

710000840

$5.49

FB

Fuse Cover

710001026

$17.52

FB

Foam

278002172

$5.49

FB

Relay, 30 AMP

515176774

$19.20

FB

Relay, 30 AMP

515176774

$19.20

FB

FUSE AND RELAY DECAL - Call your local BRP dealership

710001553

Unavailable

FB

Relay

715900824

$16.22

FB

Relay

715900824

$16.22

FB

Relay

715900824

$16.22

FB

Relay

715900824

$16.22

FB

Relay

715900824

$16.22

FB

Relay

715900824

$16.22

FB

LITTLE FUSE, 25 AMPERES - Call your local BRP dealership

710002185

Unavailable

FB

LITTLE FUSE, 25 AMPERES - Call your local BRP dealership

710002185

Unavailable

FCS

Terminal

710001235

$2.31

FCS

Terminal

710001873

$2.02

FLH

Female Terminal

515175231

$4.12

FLH

Female Housing, 3 Circuits

515175495

$15.35

FP

Seal

278001482

$2.55

FP

Housing

710001132

$9.60

FP

Lock

710001133

$4.12

FP

Female Terminal

710001134

$6.03

FPL1

Male Terminal Housing, 2 Circuits

409209400

$14.97

FPL1

Tie-Rap 180 mm

414115200

$0.09

FPL1

Tie-Rap 180 mm

414115200

$0.09

FPL1

Male Terminal

515176164

$6.43

FPL1

Wire Seal

515176621

$7.00

FPL1

Not Available As Spare Part - Friction Washer

Unavailable

FPL2

Male Terminal Housing, 2 Circuits

409209400

$14.97

FPL2

Tie-Rap 180 mm

414115200

$0.09

FPL2

Tie-Rap 180 mm

414115200

$0.09

FPL2

Male Terminal

515176164

$6.43

FPL2

Wire Seal

515176621

$7.00

FPL2

Not Available As Spare Part - Friction Washer

Unavailable

FRH

Female Terminal

515175231

$4.12

FRH

Female Housing, 3 Circuits

515175495

$15.35

GND1

Open Barrel Terminal

278001392

$4.12

GND2

Terminal

710000913

$5.46

GSC

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

GSC

Female Terminal

278001665

$3.73

GSC

CONNECTOR - Call your local BRP dealership

710001936

Unavailable

HA

Female Terminal Housing, 2 Circuits

515175670

$7.85

HA

Female Lock, 2 Circuits

515175675

$4.42

HA

Female Terminal

278001665

$3.73

HBS

Female Housing, 3 Circuits

409209600

$35.35

HBS

Plug

409013700

$4.42

HBS

Female Terminal

710001340

$5.11

HBS

Wire Seal

515176621

$7.00

HIC

Female Terminal

278000632

$1.69

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HN3

Female Terminal

515175231

$4.12

HN3

Female Housing, 2 Circuits

515175658

$15.35

HO2S1

Seal

278001482

$2.55

HO2S1

Not Available As Spare Part - Friction Washer

Unavailable

HO2S1

Not Available As Spare Part - Friction Washer

Unavailable

HO2S1

Not Available As Spare Part - Friction Washer

Unavailable

HO2S2

Seal

278001482

$2.55

HO2S2

Not Available As Spare Part - Friction Washer

Unavailable

HO2S2

Not Available As Spare Part - Friction Washer

Unavailable

HO2S2

Not Available As Spare Part - Friction Washer

Unavailable

JMP1

Seal

710001233

$2.55

JMP1

Terminal

710001229

$3.02

JMP1

Not Available As Spare Part - Friction Washer

Unavailable

JMP2

Seal

710001233

$2.55

JMP2

Cap

710001225

$7.27

JMP2

Terminal

710001224

$3.02

JMP2

Not Available As Spare Part - Friction Washer

Unavailable

KIC

Housing

710001231

$12.05

KIC

Seal Wire

710001332

$2.72

KIC

TERMINAL - Call your local BRP dealership

710001863

Unavailable

KIC

Holder | XMR

710002006

$3.68

LBHL

Female Terminal

278001014

$2.72

LBHL

Female Housing, 3 Circuits

409209600

$35.35

LBHL

Wire Seal

278001013

$2.72

LED

Female Housing, 2 Circuits

409209500

$13.48

LED

Female Terminal

710001340

$5.11

LED

Wire Seal

515176621

$7.00

LPS

Female Housing, 3 Circuits

409209600

$35.35

LPS

Plug

409013700

$4.42

LPS

Female Terminal

710001340

$5.11

LPS

Wire Seal

515176621

$7.00

MFB1

MALE TERMINAL - Call your local BRP dealership

710001051

Unavailable

MFB1

FUSE HOLDER - Call your local BRP dealership

710001052

Unavailable

MFB2

MALE TERMINAL - Call your local BRP dealership

710001050

Unavailable

MFB2

FUSE HOLDER - Call your local BRP dealership

710001053

Unavailable

MFB34

MALE TERMINAL - Call your local BRP dealership

710001051

Unavailable

MFB34

FUSE HOLDER - Call your local BRP dealership

710001057

Unavailable

MFB56

MALE TERMINAL - Call your local BRP dealership

710001051

Unavailable

MFB56

FUSE HOLDER - Call your local BRP dealership

710001054

Unavailable

MFB78

MALE TERMINAL - Call your local BRP dealership

710001050

Unavailable

MFB78

FUSE HOLDER - Call your local BRP dealership

710001055

Unavailable

MSL2

Female Terminal

278001014

$2.72

MSL2

CONNECTOR - Call your local BRP dealership

710000816

Unavailable

MSL2

Wire Seal

278001013

$2.72

MSL2

Female Terminal

710001340

$5.11

MSL2

Wire Seal

515176621

$7.00

MSL3

Housing

710000568

$10.83

MSL3

Plug

409013700

$4.42

MSL3

Male Terminal

515176164

$6.43

MSL3

Wire Seal

515176621

$7.00

MSR2

Housing, 6 Circuits | Europe Models

710000815

Unavailable

MSR2

Male Terminal

515176164

$6.43

MSR2

Wire Seal

515176621

$7.00

OLS1

Wire Seal

710001163

$5.10

OLS1

Female Terminal

710001164

$5.92

OLS1

Not Available As Spare Part - Friction Washer

Unavailable

OLS2

Wire Seal

710001163

$5.10

OLS2

Female Terminal

710001164

$5.92

OLS2

Not Available As Spare Part - Friction Washer

Unavailable

PBM1

Insulated Sheath

278001007

$3.22

PBM1

Female Terminal

710000421

$5.46

PBM2

Insulated Sheath

278001008

$3.20

PBM2

Female Terminal

278002261

$6.20

PIC1

Terminal

710001229

$3.02

PIC1

Terminal

710001228

$2.72

PIC1

Cap

710001225

$7.27

PIC1

Seal Wire

710001332

$2.72

PIC1

Housing

710001943

$18.00

PIC2

Seal

710001233

$2.55

PIC2

Terminal

710001229

$3.02

PIC2

Cap

710001225

$7.27

PIC2

Housing

710001928

$14.97

PRS

Male Lock, 3 Circuits

409207600

$3.02

PRS

Male Housing

515175666

$13.05

PRS

Male Terminal

710001348

$11.14

RBHL

Female Terminal

278001014

$2.72

RBHL

Female Housing, 3 Circuits

409209600

$35.35

RBHL

Wire Seal

278001013

$2.72

SAS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

SAS

Wire Seal

710001118

$1.19

SAS

Housing

710003730

$14.75

SPS

Tie-Rap 180 mm

414115200

$0.09

SPS

Tie-Rap 180 mm

414115200

$0.09

SPS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

SPS

Wire Seal

710001118

$1.19

SPS

Housing

710003731

$7.37

SPS

Plug

710001938

$2.29

SPS

Not Available As Spare Part - Friction Washer

Unavailable

SRS

Female Terminal

515175231

$4.12

SRS

Female Housing, 2 Circuits

515175658

$15.35

STS1

Not Available As Spare Part - Friction Washer

Unavailable

STS1

Not Available As Spare Part - Friction Washer

Unavailable

STS2

Not Available As Spare Part - Friction Washer

Unavailable

STS2

Not Available As Spare Part - Friction Washer

Unavailable

TAS

Housing

710001232

$13.80

TAS

Seal

710001233

$2.55

TAS

Terminal

710001229

$3.02

TCM

Tie Wrap 142 mm

293750002

$0.88

TCM

Plug

515175812

$1.70

TCM

Female Terminal

515175806

$0.81

TCM

Female Housing

515176221

$14.94

TCM

Wire Seal

515176222

$14.97

TCM

Female Terminal Housing, 36 Circuits

515176223

$12.97

TCM

Terminal Support

515176224

$15.02

TCM

Female Terminal

710001131

$7.00

VCM

Tie Wrap 142 mm

293750002

$0.88

VCM

Wire Seal

710001118

$1.19

VCM

MOLEX HOUSING, 38 PINS - Call your local BRP dealership

710001870

Unavailable

VCM

Terminal

710001869

$2.75

VCM

TERMINAL - Call your local BRP dealership

710001867

Unavailable

VCM

PLUG - Call your local BRP dealership

710001884

Unavailable

VCM

Plug

710001938

$2.29

VCM

MOLEX CONNECTOR COVER - Call your local BRP dealership

710002032

Unavailable

VIM1

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

VIM1

Plug

409013700

$4.42

VIM1

Male Terminal

515176164

$6.43

VIM1

Wire Seal

515176621

$7.00

VIM2

Female Housing, 4 Circuits

409209700

$12.97

VIM2

Female Terminal

710001340

$5.11

VIM2

Wire Seal

515176621

$7.00

VSS1

Housing

710003729

$20.74

VSS1

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS1

Wire Seal

710001118

$1.19

VSS2

Housing

710003729

$20.74

VSS2

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS2

Wire Seal

710001118

$1.19

VSS4

Housing

710003729

$20.74

VSS4

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS4

Wire Seal

710001118

$1.19

YRS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

YRS

Wire Seal

710001118

$1.19

YRS

Housing

710003730

$14.75
