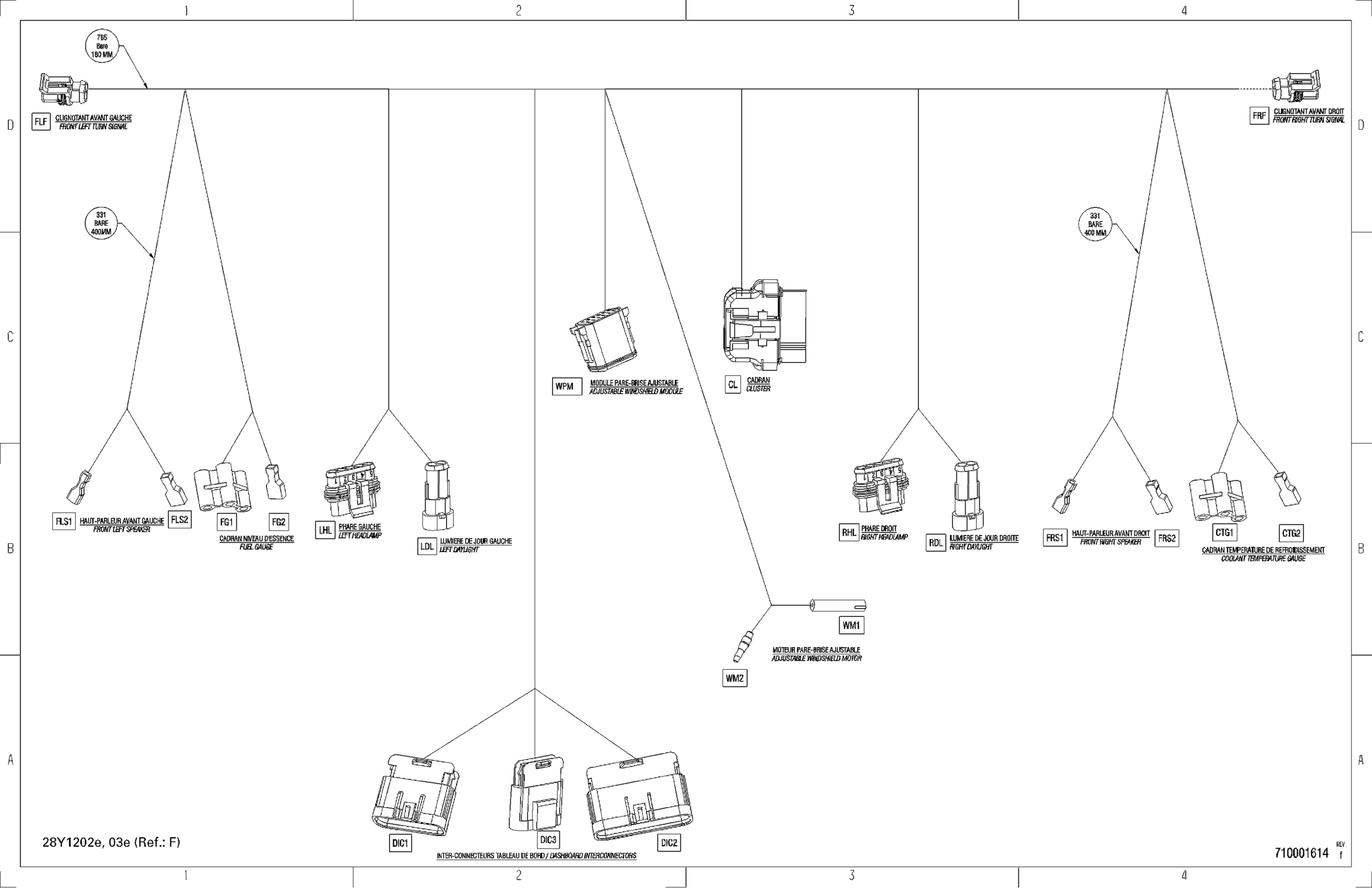

Can-Am Spyder RT SE5, 2012 Electrical Harness , Console Diagram

#

Description
Price

1

WIRING HARNESS_CONSOLE - Call your local BRP dealership

710001614

Unavailable

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

528

Not Available As Spare Part - Friction Washer

Unavailable

530

Coding Tape, Red

710000488

Unavailable

765

Not Available As Spare Part - Friction Washer

Unavailable

CL

Female Housing, 24 Circuits

515175801

$9.00

CL

Retainer Block

515175802

$10.66

CL

Plug

515175812

$1.70

CL

Female Housing

710000399

$14.02

CL

Wire Seal

515175803

$2.41

CL

Female Terminal

710001131

$7.00

CL

Female Terminal

515175806

$0.81

CTG1

Housing Connector

710002072

Unavailable

CTG2

Female Terminal

409010700

$5.08

DIC1

Housing

710001227

$12.91

DIC1

Cap

710001225

$7.27

DIC1

Seal Wire

710001332

$2.72

DIC1

TERMINAL - Call your local BRP dealership

710001863

Unavailable

DIC1

Terminal

710001224

$3.02

DIC2

Housing

710001856

$14.00

DIC2

Plug

710002075

$2.47

DIC2

Wire Seal

278002186

$4.51

DIC2

Terminal

710001857

$2.75

DIC2

Terminal

710001859

$2.75

DIC3

Housing

710001231

$12.05

DIC3

Seal Wire

710001332

$2.72

DIC3

TERMINAL - Call your local BRP dealership

710001863

Unavailable

DIC3

Terminal

710001224

$3.02

FG1

Housing Connector

710002072

Unavailable

FG2

Female Terminal

409010700

$5.08

FLF

Female Housing, 2 Circuits

409209500

$13.48

FLF

Wire Seal

515176621

$7.00

FLF

Female Terminal

710001340

$5.11

FLS1

Female Terminal

710000082

$6.03

FLS2

Female Terminal

409010700

$5.08

FRF

Female Housing, 2 Circuits

409209500

$13.48

FRF

Wire Seal

515176621

$7.00

FRF

Female Terminal

710001340

$5.11

FRS1

Female Terminal

710000082

$6.03

FRS2

Female Terminal

409010700

$5.08

LDL

Male Terminal Housing, 2 Circuits

409209400

$14.97

LDL

Wire Seal

515176621

$7.00

LDL

Male Terminal

515176164

$6.43

LHL

Connector

710000780

$18.43

LHL

Wire Seal

278001013

$2.72

LHL

Female Terminal

278001014

$2.72

RDL

Male Terminal Housing, 2 Circuits

409209400

$14.97

RDL

Wire Seal

515176621

$7.00

RDL

Male Terminal

515176164

$6.43

RHL

Connector

710000780

$18.43

RHL

Plug

409013700

$4.42

RHL

Wire Seal

278001013

$2.72

RHL

Female Terminal

278001014

$2.72

WM1

Insulated Sheath

278001007

$3.22

WM1

Female Terminal

710000421

$5.46

WM2

Insulated Sheath

278001008

$3.20

WM2

Female Terminal

278002261

$6.20

WPM

Female Terminal Housing, 12 Circuits

278002377

$46.89

WPM

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

WPM

Female Terminal

278001665

$3.73
