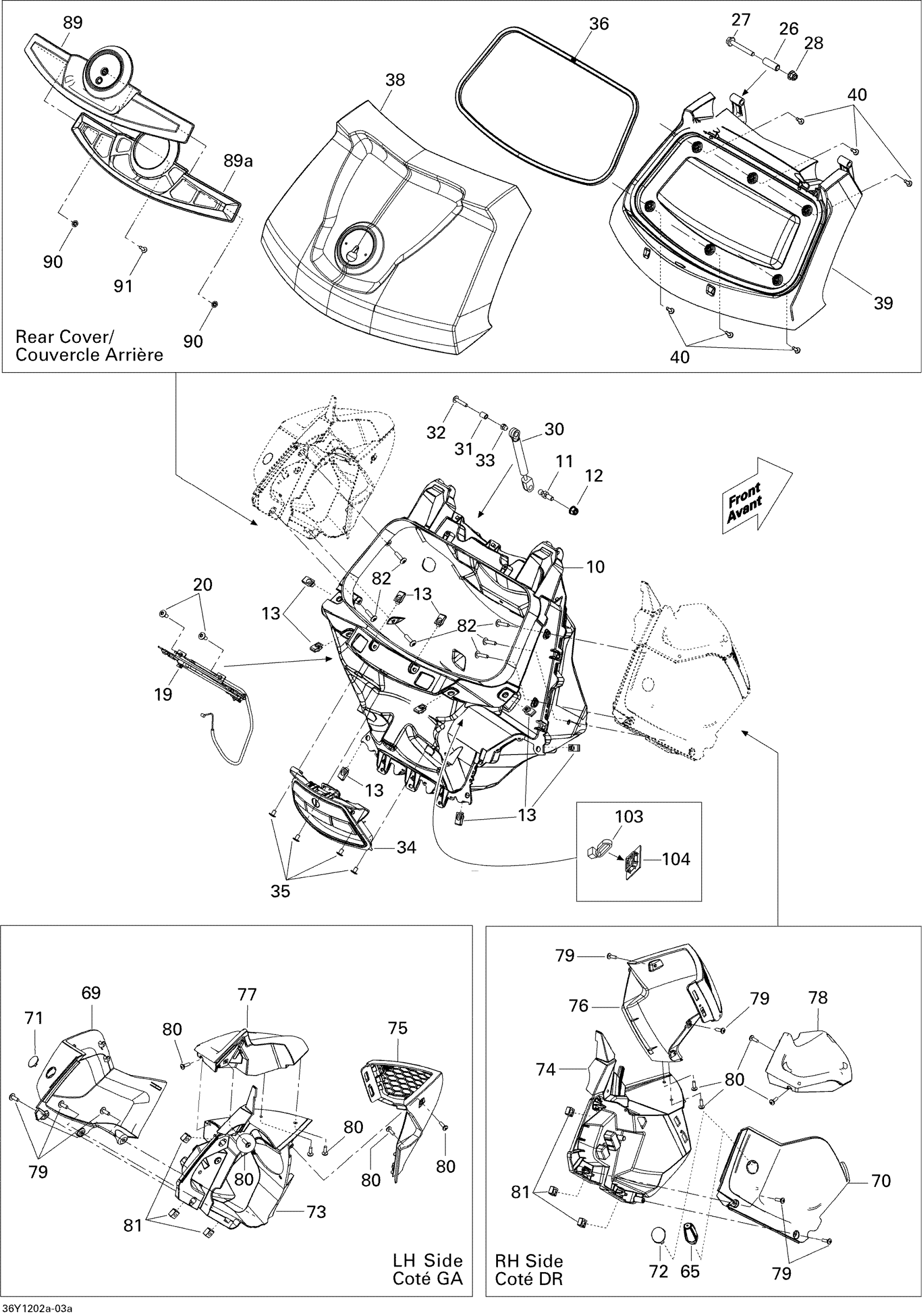

Can-Am Spyder RT SE5, 2012 Luggages Rear Diagram

#

Description
Price

10

STORAGE - Call your local BRP dealership

708300044

Unavailable

11

Ball Head Stud

250300039

$6.15

12

Hex. Flange Elastic Nut M8

233281414

$1.14

13

Panel Nut M6 X 1.0

250100198

$1.73

19

Center Latch

708301642

$155.00

20

Torx Truss Screw M6 X 16

250000348

$1.74

26

Spacer

708300394

$15.00

27

Hex. Flange Screw M6 X 45

207664544

$1.07

28

Flange Elastic Nut M6

233261434

$3.61

30

Gaz Shock

708300383

$80.00

31

Spacer

708300384

$14.00

32

Torx Truss Screw M6 X 30

250000843

$1.74

33

Domed Nut M6

232361493

$1.77

34

Main Control (WO lock cylinder)

708302620

$165.00

35

Torx Truss Screw M6 X 10

250000349

$7.31

36

Seal, 1PC = 3M

293830188

$37.66

38

COVER TRUNK R B-308 - Call your local BRP dealership | RT A&C Model, Blue

708300697

Unavailable

38

COVER TRUNK R B-308 - Call your local BRP dealership | RT A&C Model, Blue

708300697

Unavailable

38

COVER TRUNK R B-308 - Call your local BRP dealership | RT A&C Model, Blue

708300697

Unavailable

38

COVER TRUNK R B-176 - Call your local BRP dealership | Viper Red Model

708300701

Unavailable

38

COVER TRUNK R B-321 - Call your local BRP dealership | Except RT-S, Pure Magnesium Model

708300689

Unavailable

38

COVER TRUNK R B-321 - Call your local BRP dealership | Except RT-S, Pure Magnesium Model

708300689

Unavailable

39

Inner Cover

708300678

$90.00

40

Torx Screw K50 X 16

250000720

$1.39

65

RH Radio Antena Base

708300156

$22.00

69

LH ARM COVER, BLUE - Call your local BRP dealership | Blue Model

708300587

Unavailable

69

TRIM REST ARM LH B-176 - Call your local BRP dealership | Viper Red Model

708300710

Unavailable

69

LH ARM COVER, PURE MAGNESIUM - Call your local BRP dealership | Pure Magnesium Model

708300481

Unavailable

70

TRIM REST ARM RH B-308 - Call your local BRP dealership | Blue Model

708300705

Unavailable

70

TRIM REST ARM RH B-176 - Call your local BRP dealership | Viper Red Model

708300711

Unavailable

70

TRIM REST ARM RH B-321 - Call your local BRP dealership | Pure Magnesium Model

708300707

Unavailable

71

LH CAP - Call your local BRP dealership | Blue Model

708300591

Unavailable

71

LH CAP, PURE MAGNESIUM - Call your local BRP dealership | Pure Magnesium Model

708300483

Unavailable

71

LH CAP, VIPER RED - Call your local BRP dealership | Viper Red Model

708300532

Unavailable

72

RH CAP, PURE MAGNESIUM - Call your local BRP dealership | RT (STD), Pure Magnesium Model

708300484

Unavailable

73

Sound Box LH

708301555

$80.00

74

RH SOUND BOX - Call your local BRP dealership

708300037

Unavailable

75

Deep Black LH Grille | Model-With Black Seat

708300381

Unavailable

76

Deep Black RH Grille | Model-With Black Seat

708300382

Unavailable

77

Deep Black, LH Arm Rest | Model-With Black Seat

708000614

$90.00

78

Deep Black, RH Arm Rest | Model-With Black Seat

708000615

$90.00

79

Torx Screw K50 X 16

250000720

$1.39

80

Torx Screw K50 X 16

250000720

$1.39

81

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

82

Torx Screw M6 x 25

250000284

$1.74

89

MOULDING - Call your local BRP dealership

708300064

Unavailable

89a

Central Moulding Trim

708300652

$15.00

90

Push Nut

732610072

$1.72

91

Torx Screw K50 X 16

250000720

$1.39

103

Tie Wrap 142 mm

293750002

$0.88

104

Tie-rap Mount (square - self-adhsive)

293750040

$3.09
