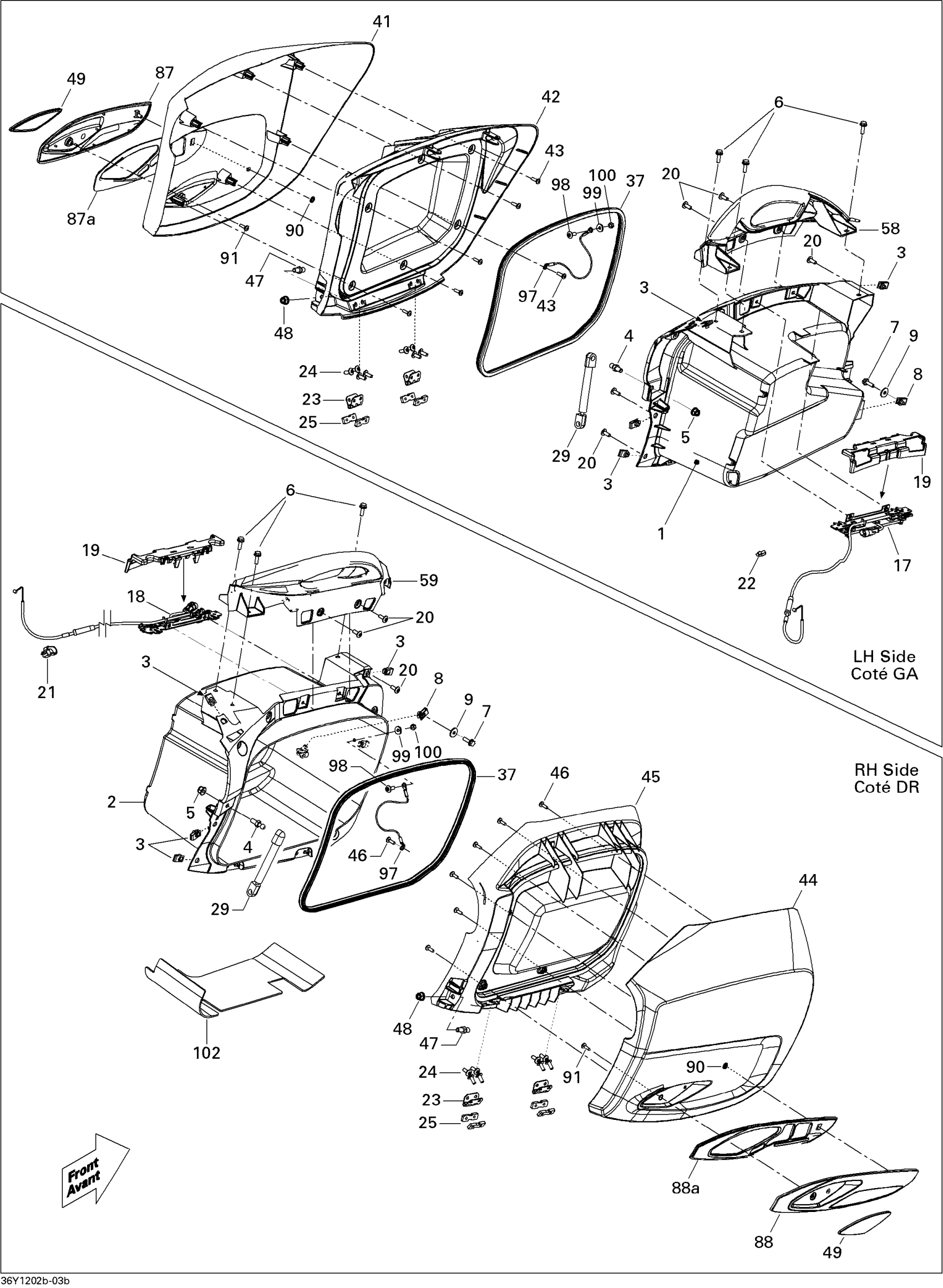

Can-Am Spyder RT SE5, 2012 Luggages Lateral Diagram

#

Description
Price

1

LH CARGO COMPARTMENT - Call your local BRP dealership

708300885

Unavailable

2

RH CARGO COMPARTMENT - Call your local BRP dealership

708300886

Unavailable

3

Panel Nut M6 X 1.0

250100198

$1.73

4

Ball Head Stud

250300016

$11.69

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Screw M6 X 20

207662044

$1.66

8

Panel Nut M6 X 1.0

250100198

$1.73

9

Flat Washer

224061201

$1.11

17

Latch Ass'y LH

708301640

$155.00

18

Latch Ass'y RH

708301641

$155.00

19

Latch Protector

708300514

$16.00

20

Torx Truss Screw M6 X 16

250000348

$1.74

21

Tie-Rap 180 mm

414115200

$0.09

22

Tie-Rap 180 mm

414115200

$0.09

23

Hinge

708300006

$26.00

24

Torx Truss Screw M6 X 16

250000348

$1.74

25

Back Plate Support

708300129

$11.00

29

Gaz Shock

708300011

$80.00

37

Seal, 1PC = 3M

293830188

$37.66

41

COVER TRUNK LH B-308 - Call your local BRP dealership | Blue Model

708300681

Unavailable

41

COVER TRUNK LH B-308 - Call your local BRP dealership | Blue Model

708300681

Unavailable

41

COVER TRUNK LH B-176 - Call your local BRP dealership | Viper Red Model

708300695

Unavailable

41

COVER TRUNK LH B-321 - Call your local BRP dealership | RT (STD), RT-S, Pure Magnesium Model

708300687

Unavailable

41

COVER TRUNK LH B-321 - Call your local BRP dealership | RT-S, Magnesium Model

708300690

Unavailable

42

Cover Interior LH

708301023

$84.00

43

Torx Screw K50 X 16

250000720

$1.39

44

COVER TRUNK RH B-308 - Call your local BRP dealership | Except RT-S, Blue Model

708300682

Unavailable

44

COVER TRUNK RH B-308 - Call your local BRP dealership | Except RT-S, Blue Model

708300682

Unavailable

44

COVER TRUNK RH B-176 - Call your local BRP dealership | Viper Red Model

708300694

Unavailable

44

COVER TRUNK RH B-321 - Call your local BRP dealership | RT (STD), RT-S, Pure Magnesium Model

708300688

Unavailable

44

COVER TRUNK RH B-321 - Call your local BRP dealership | RT-S, Magnesium Model

708300691

Unavailable

45

Cover Interior RH

708301022

$84.00

46

Torx Screw K50 X 16

250000720

$1.39

47

Ball Head Stud

250300016

$11.69

48

Hex. Flange Elastic Nut M8

233281414

$1.14

49

Amber, Lateral Reflector

705002423

$13.28

49

Red, Lateral Reflector

705003412

$13.28

58

LH Passenger Handle

708300022

$106.00

58

LH Passenger Handle Heat Ass'y | Includes 152 to 153

708300496

$143.00

59

RH Passenger Handle

708300024

$106.00

59

RH Passenger Handle Heat Ass'y | Includes 155 to 157

708300498

$143.00

87

TRIM TRUNK LH CHROME - Call your local BRP dealership | RTS

708300062

Unavailable

87a

Moulding Trim LH | Model-Japan

708300650

$23.00

88

TRIM TRUNK RH CHROME - Call your local BRP dealership | RTS

708300063

Unavailable

88a

RH Moulding Trim | Model-Japan

708300651

$23.00

90

Push Nut

732610072

$1.72

91

Torx Screw K50 X 16

250000720

$1.39

97

Retainer Cable

708300385

$39.00

98

Torx Truss Screw M6 X 16

250000348

$1.74

99

Flat Washer, Stainless/Neoprene

211200055

$0.68

100

Hex. Nut M6

232061414

$0.44

102

Heat Shield

705004173

$48.00
