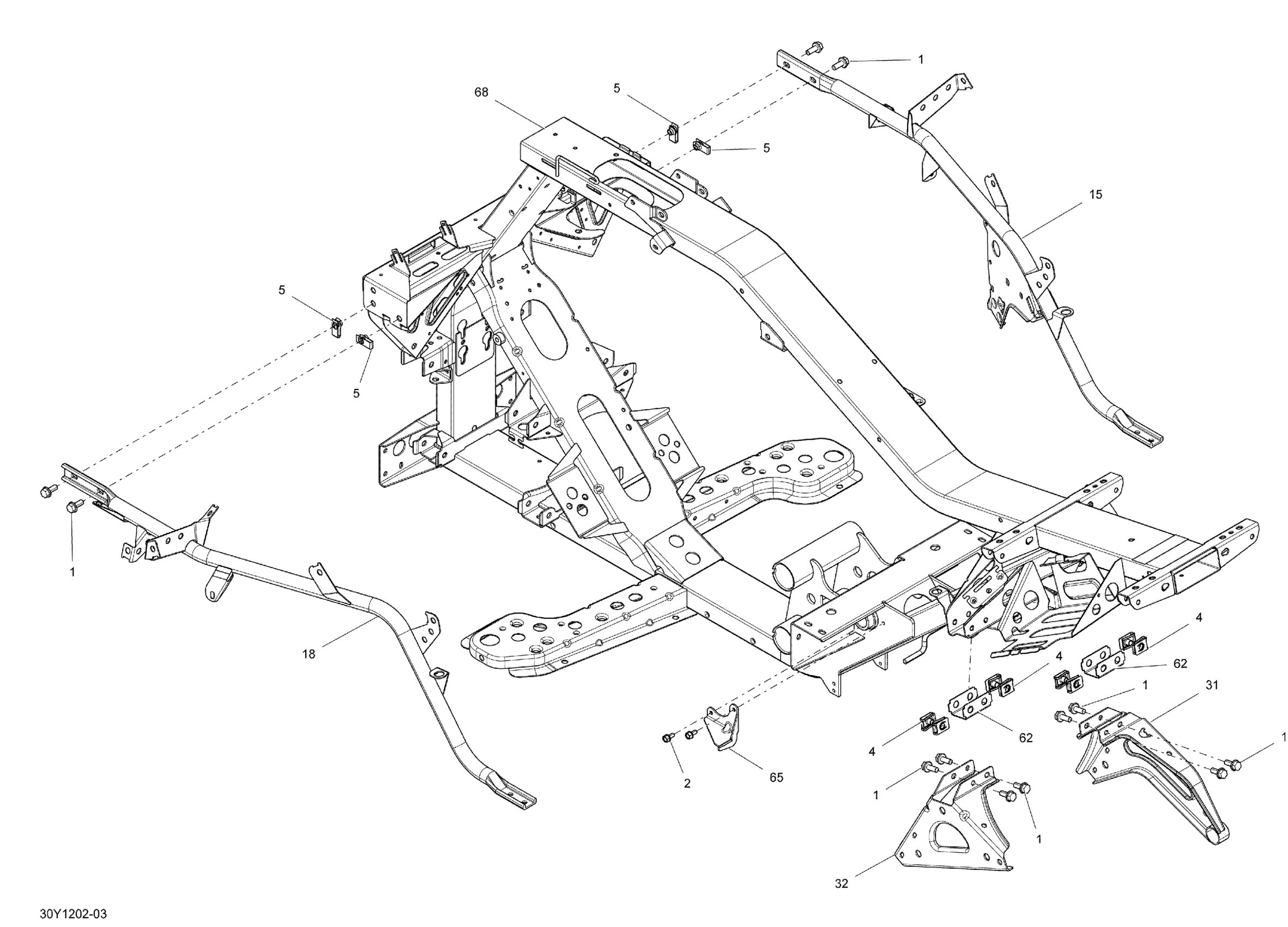

Can-Am Spyder RT SE5, 2012 Frame Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

2

Hex. Flange Screw M6 X 12

210261250

$1.56

4

Panel Nut M8 X 1.25

250100069

$4.00

5

Panel Nut M8 X 1.25

250100118

$1.63

15

RH SUPPORT - Call your local BRP dealership

705203271

Unavailable

18

LH LATERAL SUPPORT - Call your local BRP dealership

705202817

Unavailable

31

RH REAR SUPPORT - Call your local BRP dealership

705201873

Unavailable

32

Rear Support LH

705203969

$50.00

62

U-Bracket

705202484

$19.00

65

Stopper Swing Arm

705202587

$29.00

68

Paint Frame

705202894

$2,310.00
