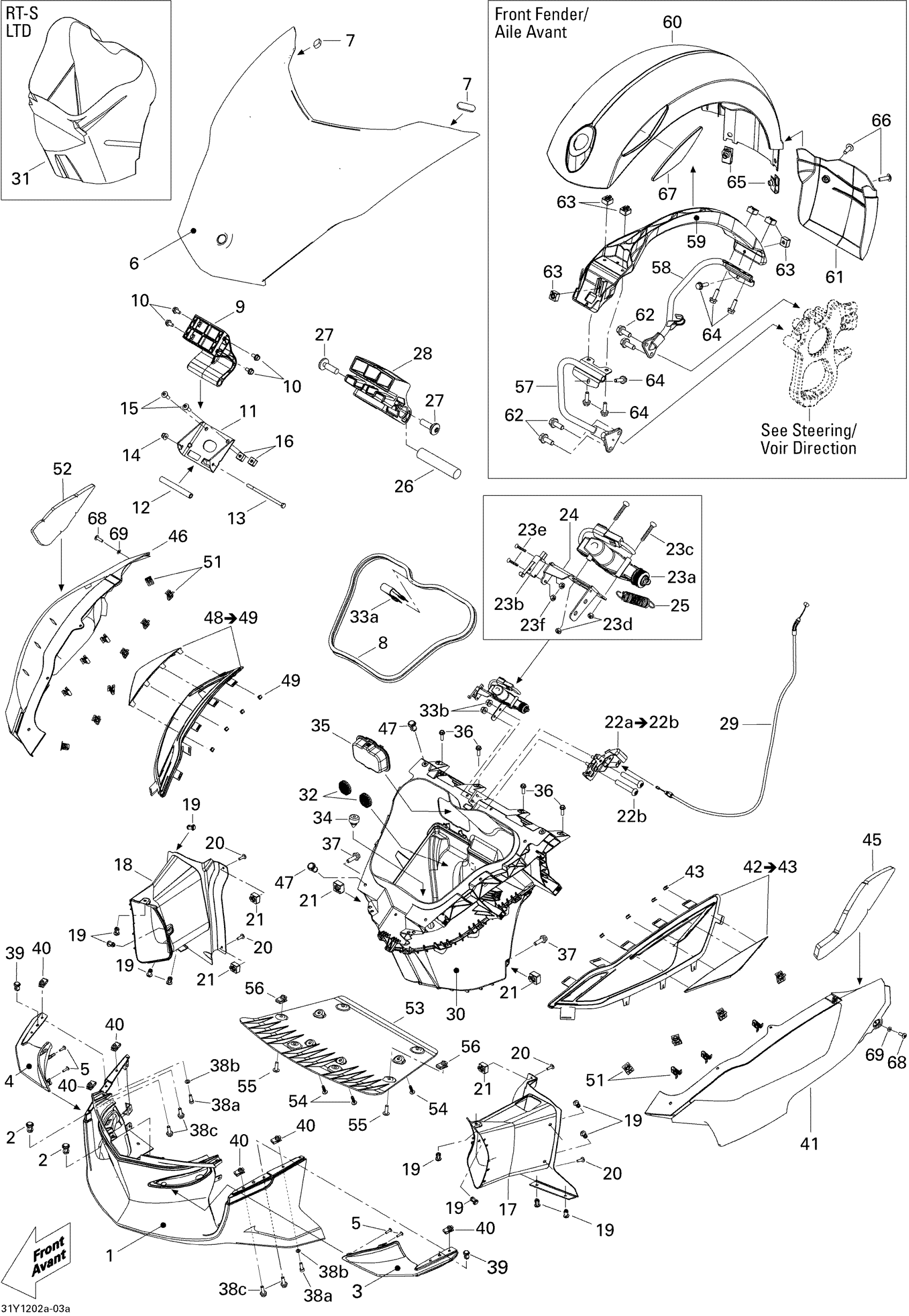

Can-Am Spyder RT SE5, 2012 Body And Accessories Front Diagram

#

Description
Price

1

BUMPER COVER, BLUE - Call your local BRP dealership | Blue Model

705006181

Unavailable

1

BUMPER COVER, BRONZE - Call your local BRP dealership | Bronze Model

705006182

Unavailable

1

Bumper Cover, Magnesium | Pure Magnesium Model

705006183

$360.00

1

Bare Bumper Cover | White Model This part replaces 705006184.

705006217

$159.00

1

Bumper Cover, Red | Viper Red Model

705006185

$360.00

2

Tuflok Plastic Rivet

293150230

$1.21

3

LH FRONT WING - Call your local BRP dealership | RT, RT Audio/Techno

705007389

Unavailable

3

LH FRONT WING, CHROME - Call your local BRP dealership

705007393

Unavailable

4

RH FRONT WING - Call your local BRP dealership | RT, RT Audio/Techno

705007390

Unavailable

4

RH Front Wing, Chrome

705007394

$130.00

5

Torx-Truss Pt K40 X 16

250000759

$1.74

6

HOOD , BLUE - Call your local BRP dealership | Blue Model

705006146

Unavailable

6

HOOD , BRONZE - Call your local BRP dealership | Bronze Model

705006147

Unavailable

6

Hood , Magnesium Met. | Pure Magnesium Model

219800224

$540.00

6

Vegas White Pearl, Hood | Model-White

705006149

$630.00

6

HOOD , RED - Call your local BRP dealership | Viper Red Model

705006150

Unavailable

7

Néoprene Pad

705006824

$7.00

8

Neoprene Seal 3000Mm Long

219704371

$45.47

9

Hood Arm

705003248

$55.00

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

11

Hood Pivot

705005434

$17.00

12

Spacer

705003322

$28.00

13

Hex. Screw M6 X 110

230061034

$1.74

14

Flange Elastic Nut M6

233261434

$3.61

15

Torx Truss Screw M6 X 20

250000488

$1.74

16

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

17

LH LOWER AIR DUCT - Call your local BRP dealership

705007446

Unavailable

18

RH LOWER AIR DUCT - Call your local BRP dealership

705007447

Unavailable

19

Tuflok Plastic Rivet

293150230

$1.21

20

Torx Truss Screw M6 X 20

250000488

$1.74

21

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

22a

Latch Ass'Y

705009310

$105.00

22b

TORX SCREW M6 X 35 - Call your local BRP dealership

235563594

Unavailable

23a

Reverse Actuator Ass'y

710008369

$77.00

23a

Reverse Actuator Ass'y

710008369

$77.00

23b

Position Sensor | Model-RT LTD

710001861

$22.00

23b

Position Sensor | Model-RT LTD

710001861

$22.00

23c

Hex. Screw M4 X 40

207144060

$4.28

23d

Elastic Stop Nut M4

232541600

$0.92

23e

Hex Screw M3 X 20

207132044

$2.06

23f

Elastic Stop Nut M3

232531423

$0.54

24

Actuator Bracket | Model-RT LTD

705003691

$27.00

24

Actuator Bracket | Model-RT LTD

705003691

$27.00

25

SPRING - Call your local BRP dealership | Model-RT LTD

705003692

Unavailable

25

SPRING - Call your local BRP dealership | Model-RT LTD

705003692

Unavailable

26

Bushing

705004513

$10.00

27

Torx Screw K50 X 16

250000720

$1.39

28

Hood Guide

705004468

$12.00

29

Hood Cable

517305460

$45.00

30

Storage Bin

705007320

$460.00

31

FRONT TRUNK LINER KIT - Call your local BRP dealership | RTS

219400166

Unavailable

33a

Holding Strap

705004357

$28.00

33b

Hex. Flange Elastic Nut M6

233261494

$1.26

34

Rubber Bumper

293830005

$5.33

35

FUSE CAP ASS'Y - Call your local BRP dealership

705003626

Unavailable

36

Hexagonal Head Screw

210262050

$1.74

37

Hex. Flange Screw M6 X 20

207662044

$1.66

38a

Socket Head Screw M6 X 20

205062044

$1.07

38b

Flat Washer 6 mm

234061410

$1.04

38c

Hex. Flange Screw M6 X 20

207662044

$1.66

39

Tuflok Plastic Rivet

293150230

$1.21

40

Panel Nut M6 X 1.0

250100198

$1.73

41

LH FRONR PANNEL, BLUE - Call your local BRP dealership | Blue Model

705006190

Unavailable

41

LH FRONR PANNEL, BRONZE - Call your local BRP dealership | Bronze Model

705006192

Unavailable

41

LH Fronr Pannel, Magnesium | Pure Magnesium Model

705006193

$260.00

41

LH FRONR PANNEL, WHITE - Call your local BRP dealership

705006195

Unavailable

41

LH Fronr Pannel, Red | Viper Red Model

705006197

$260.00

42

Air Duct Ass'y, LH | Model-RT STD North America

705003703

$90.00

43

Clip

414479100

$1.86

45

LH FRONT PANEL FOAM - Call your local BRP dealership

518325855

Unavailable

46

PANEL_BODY FR B-308 - Call your local BRP dealership | Blue Model

705006189

Unavailable

46

PANEL_BODY FR B-330 - Call your local BRP dealership | Bronze Model

705006191

Unavailable

46

Bare, RH Front Panel | Pure Magnesium Model

705006218

$120.00

46

RH Fronr Pannel, White

705006196

$260.00

46

PANEL_BODY FR B-176 - Call your local BRP dealership | Red Model

705006198

Unavailable

47

Tuflok Plastic Rivet

293150230

$1.21

48

Air Duct Ass'y RH | Model-RT STD North America

705003706

$90.00

49

Clip

414479100

$1.86

51

Edge Clip

517302785

$0.70

52

RH FRONT PANEL FOAM - Call your local BRP dealership

518325854

Unavailable

53

Skid Plate

705002837

$69.00

54

Truss Head Torx Screw K50 X 20

250000297

$2.06

55

Torx Truss Screw M6 X 20

250000350

$4.39

56

Panel Nut M6 X 1.0

250100198

$1.73

57

LH Painted Fender Front Support | Model-RS STD

705010102

$87.00

57

RH Painted Fender Front Support | Model-RS STD

705010103

$87.00

58

LH Rear Fender Support | Model-RS STD

705010740

$84.00

58

Right Fender Rear Support | Model-RS STD

705010741

$84.00

59

Central Front Fender Support | Model-RS STD

705002389

$63.00

60

LH FRONT FENDER, QUANTUM BLUE - Call your local BRP dealership | Quantum Blue

705003901

Unavailable

60

Pearl White LH Front Fender | Model-RS STD Vegas White Pearl

705003904

$205.00

60

LH Front Fender, Metallic Magnesium | RS, Magnesium Model

705004613

$205.00

60

LH FRONT FENDER, VIPER RED - Call your local BRP dealership | Viper Red Model

705005070

Unavailable

60

FENDER FL B-330 - Call your local BRP dealership | Bronze Model

705005492

Unavailable

60

FENDER FR B-308 - Call your local BRP dealership | Quantum Blue

705003902

Unavailable

60

Pearl White RH Front Fender | Model-RS STD Vegas White Pearl

705003903

$310.00

60

RH Front Fender, Metallic Magnesium | RS, Magnesium Model

705004614

$310.00

60

RH FRONT FENDER, VIPER RED - Call your local BRP dealership | Viper Red Model

705005071

Unavailable

60

FENDER FR B-330 - Call your local BRP dealership | Bronze Model

705005493

Unavailable

61

LH Mudguard | Model-RS STD

705001767

$52.00

61

RH Mudguard | Model-RS STD

705001768

$52.00

62

Hex. Flange Screw, Scotch Grip

207582034

$2.00

63

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

64

Hex. Flange Screw M6 X 20

207662084

$0.83

65

Panel Nut M6 X 1.0

250100198

$1.73

66

Torx Truss Screw M6 X 20

250000350

$4.39

67

Amber, Lateral Reflector

705002423

$13.28

68

Torx Truss Screw M6 X 20

250000350

$4.39

69

Plastic Washer

705003207

$1.00
