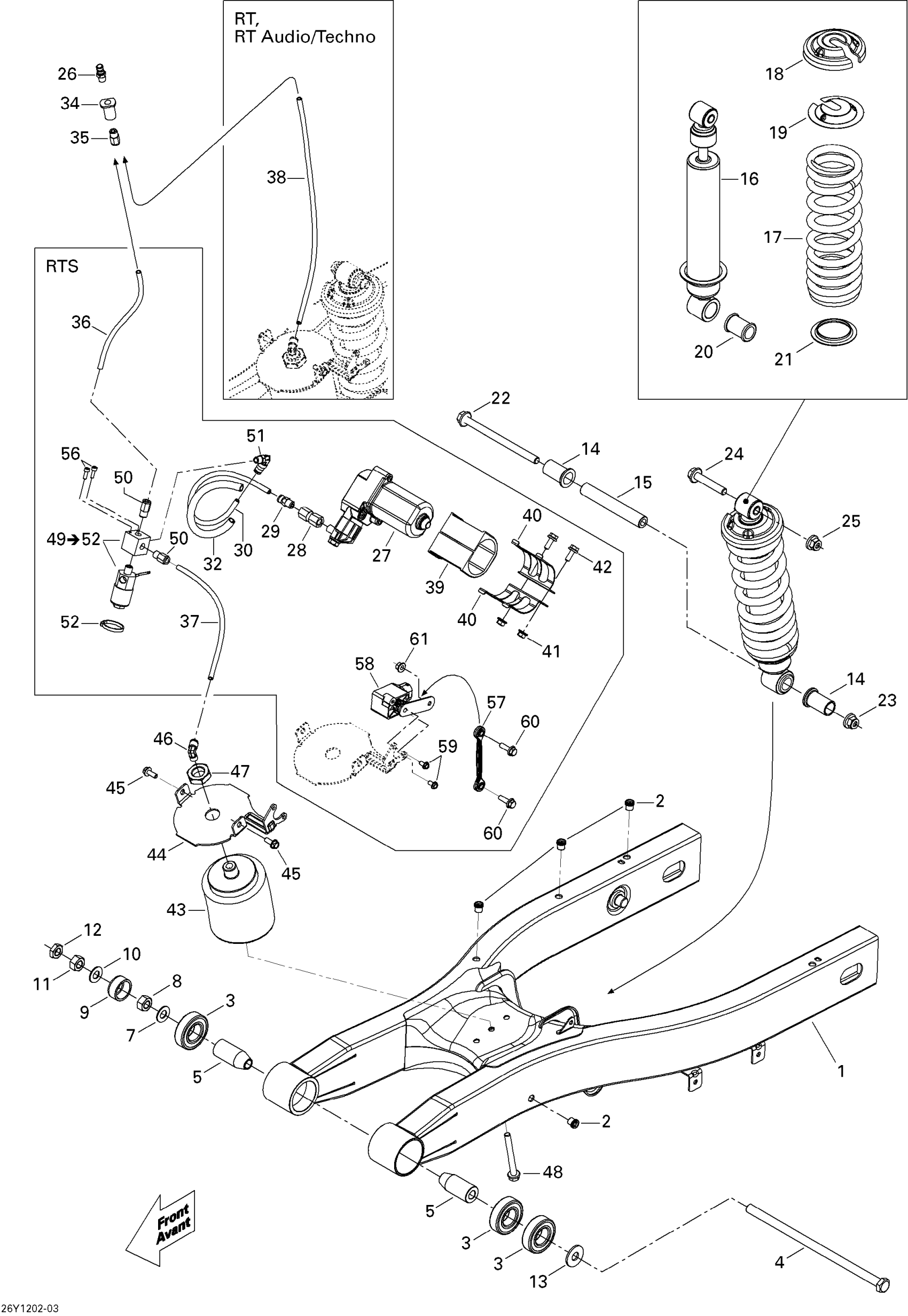

Can-Am Spyder RT SE5, 2012 Suspension, Rear Diagram

#

Description
Price

1

SWING ARM - Call your local BRP dealership

706001180

Unavailable

2

Insert

293450275

$9.89

3

Ball Bearing

293350115

$11.15

4

HEX. SCREW M12 X 265, SCOTCH GRIP - Call your local BRP dealership

250000367

Unavailable

5

INTERNAL BUSHING - Call your local BRP dealership

706000474

Unavailable

7

WASHER - Call your local BRP dealership

503191435

Unavailable

8

HEX. NUT M12 - Call your local BRP dealership

232021486

Unavailable

9

BUSHING - Call your local BRP dealership

706000486

Unavailable

10

WASHER - Call your local BRP dealership

503191435

Unavailable

11

HEX. NUT M12 - Call your local BRP dealership

232021486

Unavailable

12

HEX. JAM NUT M12 - Call your local BRP dealership

232120434

Unavailable

13

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

14

Spacer

706000410

$14.00

15

Shock Absorber Shaft

706000409

$50.00

16

Shock

706001262

$122.00

17

SPRING - Call your local BRP dealership

706000906

Unavailable

18

SPRING STOPPER - Call your local BRP dealership

503191604

Unavailable

19

CAP - Call your local BRP dealership

503191605

Unavailable

20

Urethane Cushion

503191609

$18.00

21

Spring Guide

503191872

$2.18

22

Hex. Flange Screw M10 X 140

230604034

$7.00

23

Hex. Flange Elastic Nut M10

233201434

$1.63

24

Hex. Flange Screw

207605534

$2.06

25

Hex. Flange Elastic Nut M10

233201434

$1.63

26

Air Valve

706002797

$15.22

27

Compressor

706001349

$436.89

28

Ckeck Valve

706000831

$39.00

29

Connector

706000869

$33.05

30

Hose 4.32Mm 3000Mm Long

219704415

$44.17

32

Tubing 6 Mm 3000Mm Long

219704425

$13.14

34

Pneumatic Connector

706000735

$19.00

35

Connector

706000869

$33.05

36

Hose 4.32Mm 3000Mm Long

219704415

$44.17

37

Hose 4.32Mm 3000Mm Long

219704415

$44.17

38

Hose 4.32Mm 3000Mm Long

219704415

$44.17

39

Compressor Isolator

706000631

$13.22

40

Compressor Bracket

503193103

$4.42

41

Hex. Flange Nut M6

233061414

$1.34

42

Hex. Flange Screw M6 X 16

207661644

$0.61

43

Air Damper Kit

219800175

$291.00

44

Support Plate

706001082

$19.00

45

Hex. Forming Screw M6 X 10

210261050

$1.42

46

Elbow 90°

706001018

$29.00

47

Jam Nut M20

250100119

$4.00

48

Hex. Flange Screw M8 X 75

207687544

$7.23

49

Air Manifold Ass'y

706001175

$300.00

50

Connector

706000869

$33.05

51

Tie-Rap 180 mm

414115200

$0.09

52

Elbow 90°

706000928

$26.12

56

Socket Head Screw M4 X 12

205041254

$2.02

57

TIE ROD - Call your local BRP dealership | RTS

706200895

Unavailable

58

Position Sensor

710001651

$175.00

59

Hex. Flange Screw M5 X 10

207551044

$3.38

60

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

61

Hex. Flange Nut M6

233061414

$1.34
