Partiron

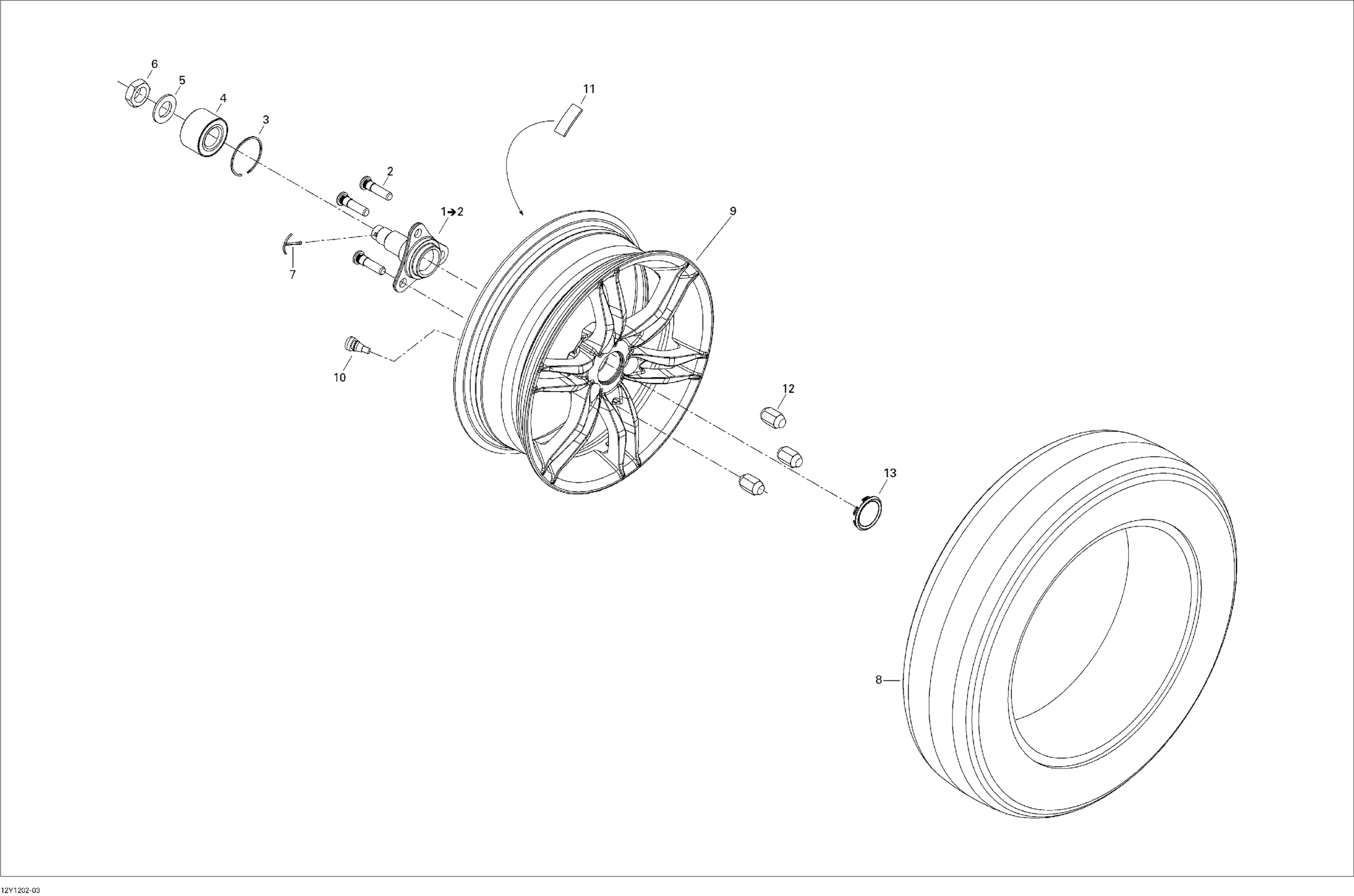

Can-Am Spyder RT SE5, 2012 Drive System, Front Diagram

#

Description
Price

1

Hub | Included 10 to 10b

706202435

$201.00

2

WHEEL STUD M12 X 1.5 - Call your local BRP dealership

250300024

Unavailable

3

Circlip

293370019

$4.98

4

Ball Bearing

293350150

$51.93

5

Flat Washer

250200094

$3.40

6

Hex. Jam Nut M24

250100103

$12.00

7

Cotter Pin

250400047

$2.00

8

Front Tire

706201411

$116.00

9

FRONT RIM, METALLIC SILVER - Call your local BRP dealership | All Except RTS

706200757

Unavailable

9

FRONT RIM, METALLIC SILVER - Call your local BRP dealership | All Except RTS

706200757

Unavailable

9

FRONT RIM, METALLIC SILVER - Call your local BRP dealership | All Except RTS

706200757

Unavailable

9

FRONT RIM, METALLIC SILVER - Call your local BRP dealership | All Except RTS

706200757

Unavailable

10

Rim Valve With Cap

705400193

$6.69

11

Self Adhesive Weight, 5G 20mm

705502106

$4.35

12

Chrome, Wheel Nut M12 X 1.5

250100154

$6.00

13

Black, Wheel Cap

705400388

$18.00
