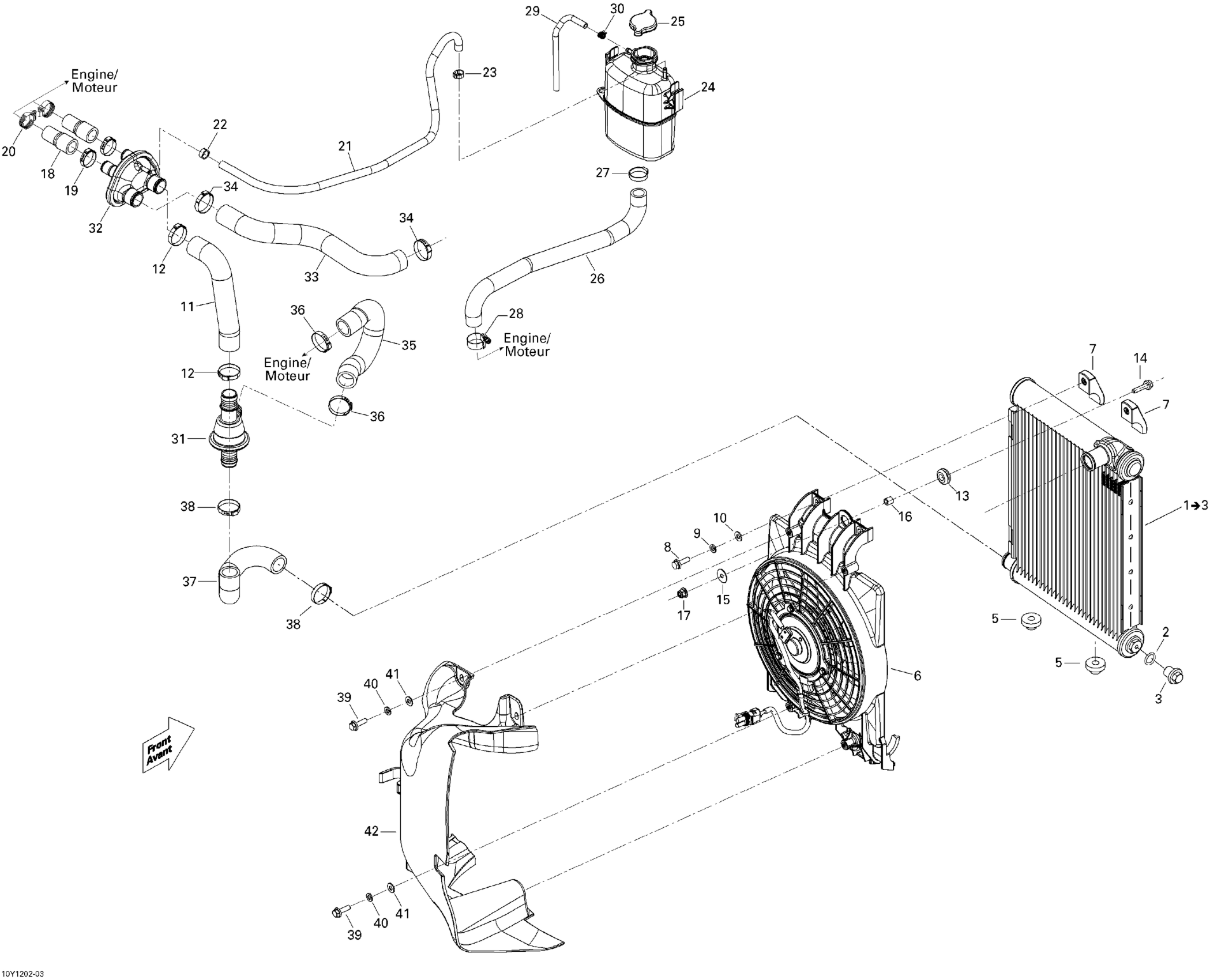

Can-Am Spyder RT SE5, 2012 Cooling System Diagram

#

Description
Price

1

Radiator | Includes 37 to 37b

709200337

$434.00

2

O-RING - Call your local BRP dealership

709200417

$6.00

3

Drain Plug

709200418

$14.00

5

Grommet

709200285

$7.09

6

FAN ASS'Y - Call your local BRP dealership

709200338

Unavailable

7

CLAMP BRACKET - Call your local BRP dealership

709200372

Unavailable

8

Hex. Flange Screw M6 X 20

207662044

$1.66

9

Lock Washer Helical M6

234161601

$0.92

10

Flat Washer

224061121

$0.44

11

HOSE - Call your local BRP dealership

709200215

Unavailable

12

Oetiker Gear Clamp 36.1MM

509000045

$3.55

13

Grommet

709000582

$4.38

14

Hex. Flange Screw M6 X 25

207662544

$0.53

15

Flat Washer

224060201

$1.15

16

Bushing

293900105

$6.26

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

19

Crimp Clamp

293650099

$4.60

20

Tridon Gear Clamp

293650173

$2.46

21

FORMED HOSE - Call your local BRP dealership

709200415

Unavailable

22

Oetiker Gear Clamp

293650025

$2.46

23

Oetiker Gear Clamp

293650025

$2.46

24

Coolant Tank

709201323

$78.43

25

Pressure Cap

509000187

$27.66

26

HOSE - Call your local BRP dealership

709200139

Unavailable

27

Oetiker Clamp

293650141

$4.28

28

Tridon Gear Clamp

293650051

$3.61

29

Polyurethane Hose 10000Mm Long

219704410

$46.12

30

Spring Clamp

414554800

$0.83

31

Thermostat Housing

709200384

$89.00

32

Connector

709200151

$19.00

33

COOLANT FORMED HOSE - Call your local BRP dealership

709200272

Unavailable

34

Oetiker Gear Clamp 36.1MM

509000045

$3.55

35

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

36

Oetiker Gear Clamp 36.1MM

509000045

$3.55

37

HOSE_RADIATOR LWR FORMED - Call your local BRP dealership

709200301

Unavailable

38

Oetiker Gear Clamp 36.1MM

509000045

$3.55

39

Hex. Flange Screw M6 X 20

207662044

$1.66

40

Lock Washer Helical M6

234161601

$0.92

41

Flat Washer

224061121

$0.44

42

DEFLECTOR - Call your local BRP dealership

709200466

Unavailable
