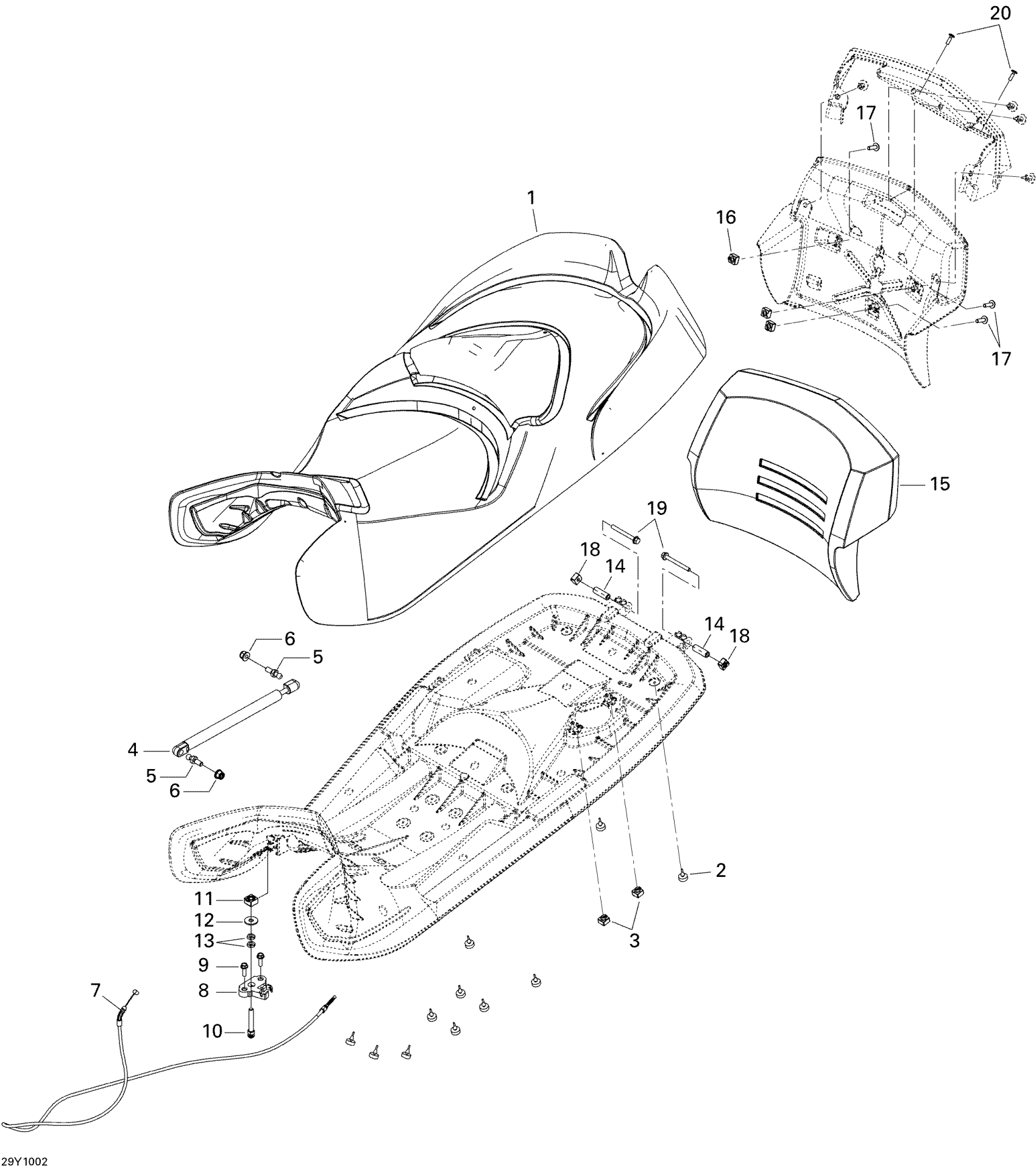

Can-Am Spyder RT, RTS Roadster SE5, 2010 Seat Diagram

#

Description
Price

1

Siege Assemble *Seat Ass'Y | Includes 1 to 3

708001659

$489.99

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rubber Stopper

708000759

$4.19

3

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

4

Gaz Shock

708000658

$83.99

5

Ball Head Stud

250300039

$7.51

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Seat Cable

708001743

$53.99

8

Latch

705007379

$28.99

9

Hexagonal Head Screw

210262050

$2.11

10

Lug

705002223

$25.99

11

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

12

Flat Washer 8 mm

234082410

$1.47

13

Hex. Jam Nut M8

232180600

$0.67

14

Spacer

708000664

$6.49

15

BACKREST ASS'Y, BLACK - Call your local BRP dealership | Includes 15 to 16

708000907

Unavailable

16

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

17

Torx Truss Screw M6 X 20

250000488

$2.11

18

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

19

Hex. Flange Screw M6 X 60

250000778

$4.44

20

Torx Screw K50 X 16

250000720

$1.69
