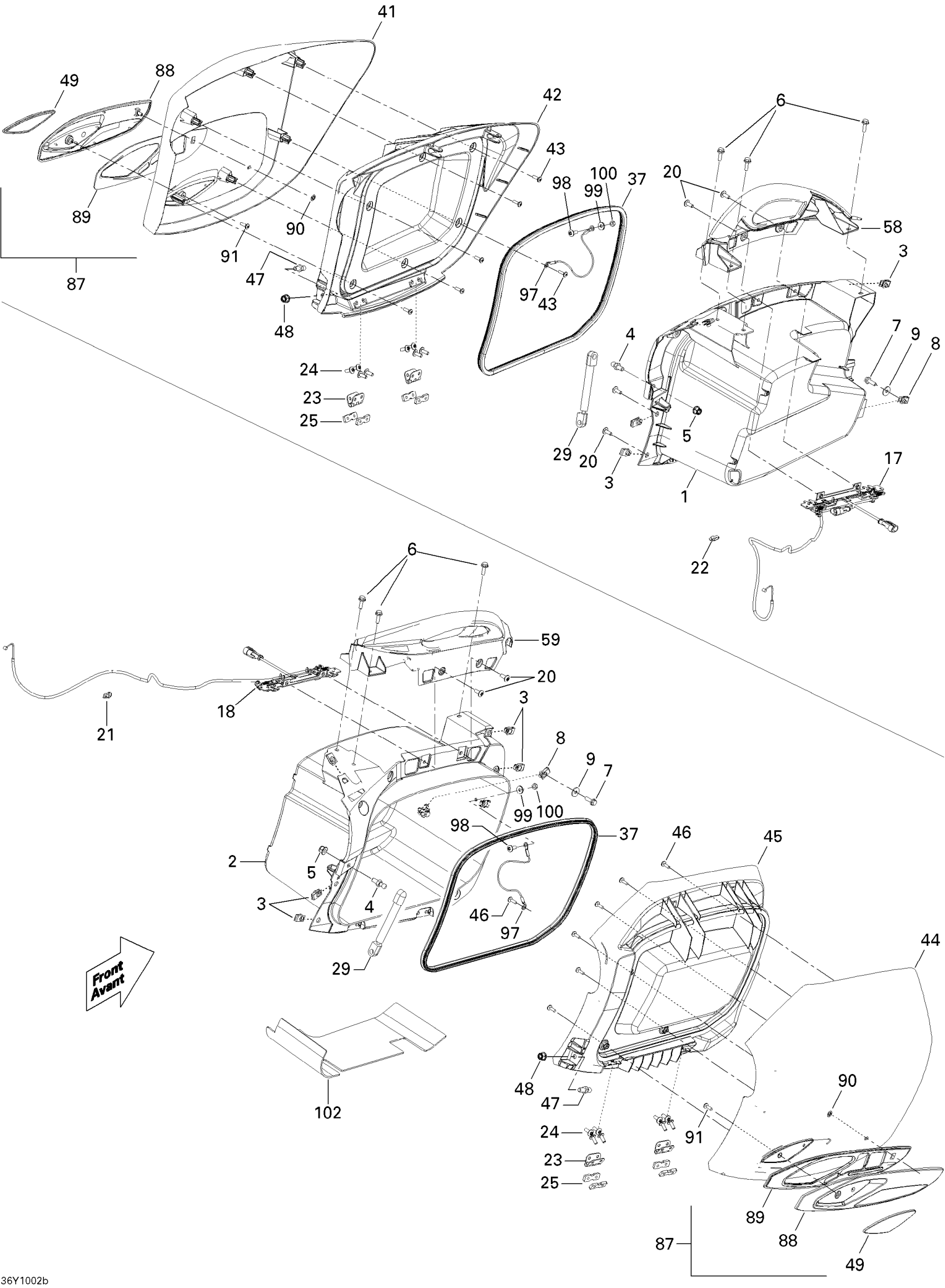

Can-Am Spyder RT, RTS Roadster SE5, 2010 Luggages B Diagram

#

Description
Price

1

LH CARGO COMPARTMENT - Call your local BRP dealership

708300885

Unavailable

2

RH CARGO COMPARTMENT - Call your local BRP dealership

708300886

Unavailable

3

Panel Nut M6 X 1.0

250100198

$1.73

4

Ball Head Stud

250300016

$11.69

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Screw M6 X 20

207662044

$1.66

8

Panel Nut M6 X 1.0

250100198

$1.73

9

Flat Washer

224061201

$1.11

17

Latch Ass'y LH

708301640

$155.00

18

RH LATCH - Call your local BRP dealership

708300187

Unavailable

20

Torx Truss Screw M6 X 16

250000348

$1.74

21

Tie-Rap 180 mm

414115200

$0.09

22

Tie-Rap 180 mm

414115200

$0.09

23

Hinge

708300006

$26.00

24

Torx Truss Screw M6 X 16

250000348

$1.74

25

Back Plate Support

708300129

$11.00

29

Gaz Shock

708300011

$80.00

37

SEAL - Call your local BRP dealership

219800177

Unavailable

41

LH COVER - Call your local BRP dealership | All Full Moon Except RTS

708300235

Unavailable

41

Bare, LH Trunk Cover | Model RT with Color Orbital Blue

708300719

$140.00

41

LH COVER, TIMELESS BLACK - Call your local BRP dealership | Timeless Black Metallic RTS

708300237

Unavailable

41

Bare, LH Trunk Cover | Model RT with Color Orbital Blue

708300719

$140.00

42

Cover Interior LH

708301023

$84.00

43

Torx Screw K50 X 16

250000720

$1.39

44

RH COVER - Call your local BRP dealership | All Full Moon Except RTS

708300238

Unavailable

44

Bare, RH Trunk Cover | Model RT with Color Orbital Blue

708300721

$140.00

44

RH COVER, TIMELESS BLACK - Call your local BRP dealership | Timeless Black Metallic RTS

708300240

Unavailable

44

Bare, RH Trunk Cover | Model RT with Color Orbital Blue

708300721

$140.00

45

Cover Interior RH

708301022

$84.00

46

Torx Screw K50 X 16

250000720

$1.39

47

Ball Head Stud

250300016

$11.69

48

Hex. Flange Elastic Nut M8

233281414

$1.14

49

Amber, Lateral Reflector

705002423

$13.28

49

Red, Lateral Reflector

705003412

$13.28

58

LH Passenger Handle

708300022

$106.00

58

LH Passenger Handle Heat Ass'y | Includes 152 to 153

708300496

$143.00

59

RH Passenger Handle

708300024

$106.00

59

RH Passenger Handle Heat Ass'y | Includes 155 to 157

708300498

$143.00

87

CARGO MOULDING KIT - Call your local BRP dealership | RTS, Includes 49, 87, 88, 89, 90, 91

219400193

Unavailable

87

Cargo Moulding Kit | RTS Europe, Includes 49, 87, 88, 89, 90, 91

219400206

$133.00

88

TRIM TRUNK LH CHROME - Call your local BRP dealership | RTS

708300062

Unavailable

88

TRIM TRUNK RH CHROME - Call your local BRP dealership | RTS

708300063

Unavailable

89

LH MOULDINGTRIM - Call your local BRP dealership | RTS

708300423

Unavailable

89

RH Moulding Trim | Model-Japan

708300651

$23.00

90

Push Nut

732610072

$1.72

91

Torx Screw K50 X 16

250000720

$1.39

97

Retainer Cable

708300385

$39.00

98

Torx Truss Screw M6 X 16

250000348

$1.74

99

Flat Washer, Stainless/Neoprene

211200055

$0.68

100

Elastic Stop Nut M6

232561414

$1.55

102

Heat Shield

705004173

$48.00
