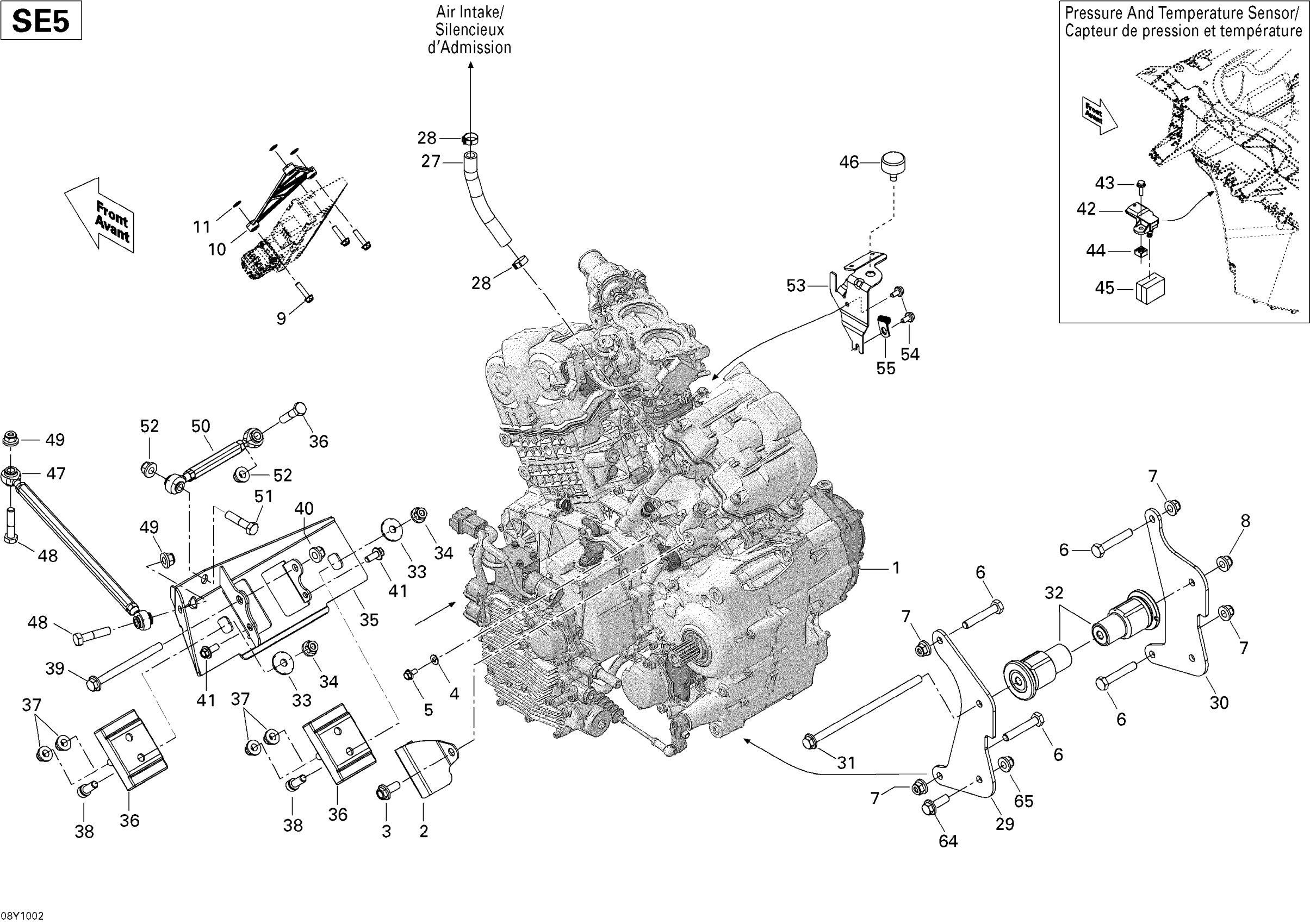

Can-Am Spyder RT, RTS Roadster SE5, 2010 Engine , SE5 Electronic Diagram

#

Description
Price

1

REBUILT - SHORT BLOCK SE5

421000709

Unavailable

2

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

3

Hex. Flange Screw M6 X 12

207661244

$1.70

4

Flat Washer

224061121

$0.44

5

Hex. Flange Screw M10 X 25

207602544

$1.33

6

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M10

233201436

$1.74

9

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

10

Spacer

710001886

Unavailable

11

Push Nut

732610072

$1.72

27

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

28

Oetiker Clamp

293650186

$3.33

29

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

30

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

31

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

32

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

33

Lock Washer

512056700

$3.01

34

Hex. Flange Elastic Nut M10

233201436

$1.74

35

Front Engine Support

707000823

Unavailable

36

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

37

Hex. Flange Elastic Nut M10

233201436

$1.74

38

Socket Head Screw M10 X 25

205002544

$1.25

39

Hex. Flange Screw M10 X 125

230602546

$6.08

40

Hex. Flange Elastic Nut M10

233201436

$1.74

41

Hex. Flange Screw M8 X 20

207682044

$0.92

42

Pressure And Temperature Sensor

707000995

$70.82

43

Hex. Flange Screw M6 X 20

207662084

$0.96

44

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

45

Foam Filter

707000586

$5.50

46

Rubber Stopper

708000758

$9.37

47

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

48

Hex. Screw M10 X 45

207004544

$1.60

49

Hex. Flange Elastic Nut M10

233201436

$1.74

50

Rod Ass'y

707000817

Unavailable

51

Hex. Screw M10 X 45

207004544

$1.60

52

Hex. Flange Elastic Nut M10

233201436

$1.74

53

Intake Support

707000756

$11.07

54

Hex. Flange Screw M6 X 12

207661244

$1.70

55

Bracket

415052400

$4.00

64

Hex. Flange Screw M10 X 25

207602544

$1.33

65

Hex. Flange Elastic Nut M10

233201436

$1.74
