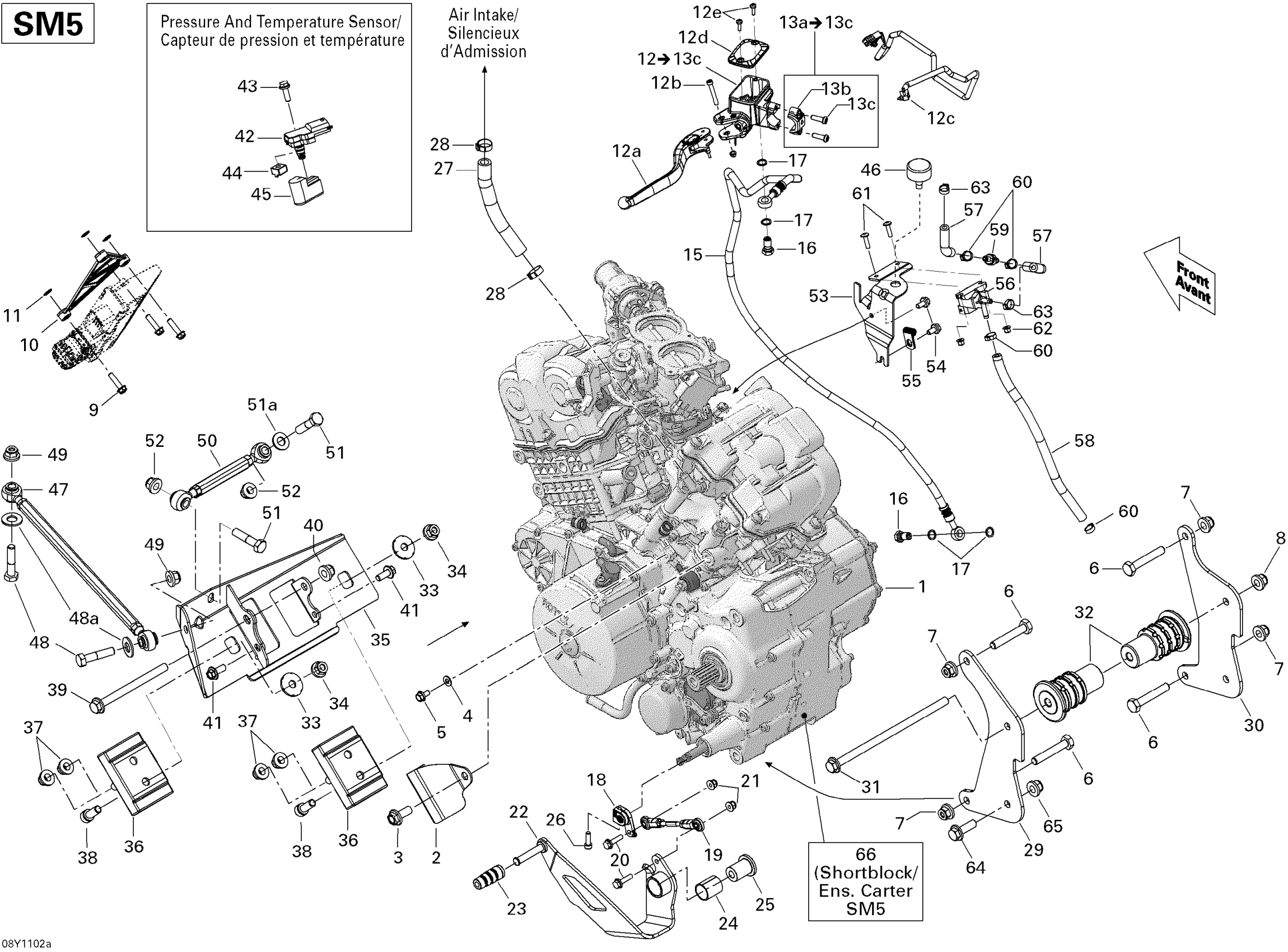

Can-Am Spyder RT, Roadster SM5, 2011 Engine SM5 Diagram

#

Description
Price

1

Short Block SM5

421000708

Unavailable

1

Short Block SM5

421000708

Unavailable

2

DEFLECTOR - Call your local BRP dealership

707000845

Unavailable

3

Hex. Flange Screw M6 X 12

207661244

$1.70

4

Flat Washer

224061121

$0.44

5

Hex. Flange Screw M10 X 25

207602544

$1.33

6

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M10

233201436

$1.74

9

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

10

Spacer

710001886

Unavailable

11

Push Nut

732610072

$1.72

12

Master Cylinder Ass'y with Lever

707001211

$370.99

12a

Master Cylinder Ass'y with Lever

707001211

$370.99

12b

Master Cylinder Ass'y with Lever

707001211

$370.99

12c

MICROSWITCH - Call your local BRP dealership

219800083

Unavailable

12d

Cap Set

219800096

$20.12

12e

Screw M4 X 20

415129356

$2.10

13a

Clamps | Includes 75a to 75b

719000049

$22.36

13b

Clamps | Includes 75a to 75b

719000049

$22.36

13c

Torx Screw M6 X 20

250000433

$7.09

15

HOSE - Call your local BRP dealership

707000654

Unavailable

16

Banjo Bolt

414920500

$8.24

17

Washer

414920600

$1.52

22

LEVER - Call your local BRP dealership

707000950

Unavailable

19

Linkage Rod | SM6

504152819

$53.99

20

Hex. Flange Screw M6 X 25

207662544

$0.53

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

SHIFTER ARM - Call your local BRP dealership

707000649

Unavailable

23

End Clutch Pedal

707000456

$8.89

24

Bushing

503191554

$5.70

25

Axle

503190698

$17.13

26

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

27

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

28

Oetiker Clamp

293650186

$3.33

29

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

30

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

31

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

32

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

33

Lock Washer

512056700

$3.01

34

Hex. Flange Elastic Nut M10

233201436

$1.74

35

FRONT ENGINE SUPORT - Call your local BRP dealership

707001072

Unavailable

36

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

37

Hex. Flange Elastic Nut M10

233201436

$1.74

38

Socket Head Screw M10 X 25

205002544

$1.25

39

Hex. Flange Screw M10 X 125

230602546

$6.08

40

Hex. Flange Elastic Nut M10

233201436

$1.74

41

Hex. Flange Screw M8 X 20

207682044

$0.92

42

Pressure And Temperature Sensor

707000995

$70.82

43

Hex. Flange Screw M6 X 20

207662084

$0.96

44

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

45

Foam Filter

707000586

$5.50

46

Rubber Stopper

708000758

$9.37

47

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

48

Hex. Screw M10 X 45

207004544

$1.60

48a

Flat Washer 10 mm

234001410

$0.98

49

Hex. Flange Elastic Nut M10

233201436

$1.74

50

TIE ROD ASS'Y - Call your local BRP dealership

707001001

Unavailable

51

Hex. Screw M10 X 45

207004544

$1.60

51a

Flat Washer 10 mm

234001410

$0.98

52

Hex. Flange Elastic Nut M10

233201436

$1.74

53

Intake Support

707000756

$11.07

54

Hex. Flange Screw M6 X 12

207661244

$1.70

55

Bracket

415052400

$4.00

56

Solenoid Valve

707001596

$78.99

57

Hose

513033565

$28.33

58

Hose

513033565

$28.33

59

Check Valve

513033469

$25.32

60

Oetiker Clamp

293650042

$1.40

61

Torx Screw M5 X 20

250000724

$1.39

62

Hex. Flange Elastic Nut M5

233251414

$1.66

63

Oetiker Clamp

293650042

$1.40

64

Hex. Flange Screw M10 X 25

207602544

$1.33

65

Hex. Flange Elastic Nut M10

233201436

$1.74

66

Short Block SM5

421000708

Unavailable
