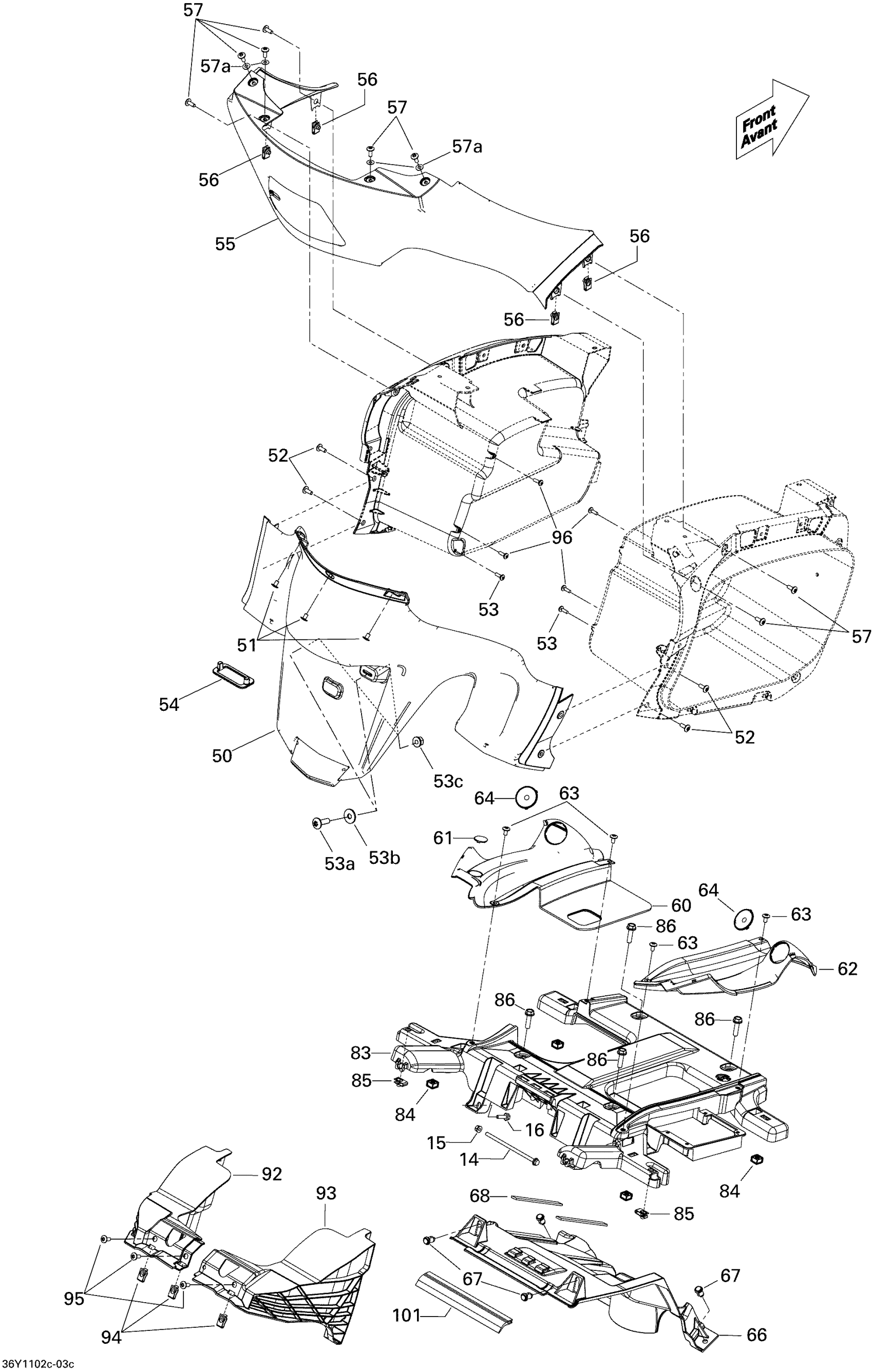

Can-Am Spyder RT LTD, 2011 Luggages , Rear Fender Diagram

#

Description
Price

14

Hex. Flange Screw M6 X 130

230663084

$3.38

15

Hex. Flange Elastic Nut M6

233261494

$1.58

16

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.11

50

Fender Rear

708302277

$204.99

51

Torx Truss Screw M6 X 10

250000349

$7.51

52

Torx Truss Screw M6 X 16

250000348

$2.11

53

Torx Screw K50 X 16

250000720

$1.69

53a

Torx Truss Screw M6 X 20

250000303

$7.27

53b

Flat Washer M6, Stainless

234062600

$0.77

53c

Hex. Flange Elastic Nut M6

233261494

$1.58

54

License Plate Light Support

708300177

$14.49

55

Bare, Rear Panel

708301558

$139.99

56

Panel Nut M6 X 1.0

250100198

$2.11

57

Torx Truss Screw M6 X 16

250000348

$2.11

57a

Plastic Washer

705003207

$0.80

60

LH Handle Pannel

708300209

$84.99

61

Cap

708300405

$6.39

62

RH Handle Pannel

708300027

$84.99

63

Torx Screw M6 X 12

250000454

$4.44

64

Crontrol Cap

708300049

$11.49

66

Under Tail Rear Wheel Cover

708300028

$49.99

67

Tuflok Plastic Rivet

293150230

$1.47

68

Gasket, Neoprene 2000Mm Long

219704476

$15.36

83

Rear Support Ass'y | Includes 160 to 162

708300781

$279.99

84

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

85

Panel Nut M6 X 1.0

250100198

$2.11

86

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

92

LH Inner Fender

708300327

$56.99

93

RH Inner Fender

708300328

$56.99

94

Panel Nut M6 X 1.0

250100198

$2.11

95

Torx Truss Screw M6 X 20

250000350

$5.29

96

Torx Screw K50 X 16

250000720

$1.69

101

Seal

708300397

$38.99
