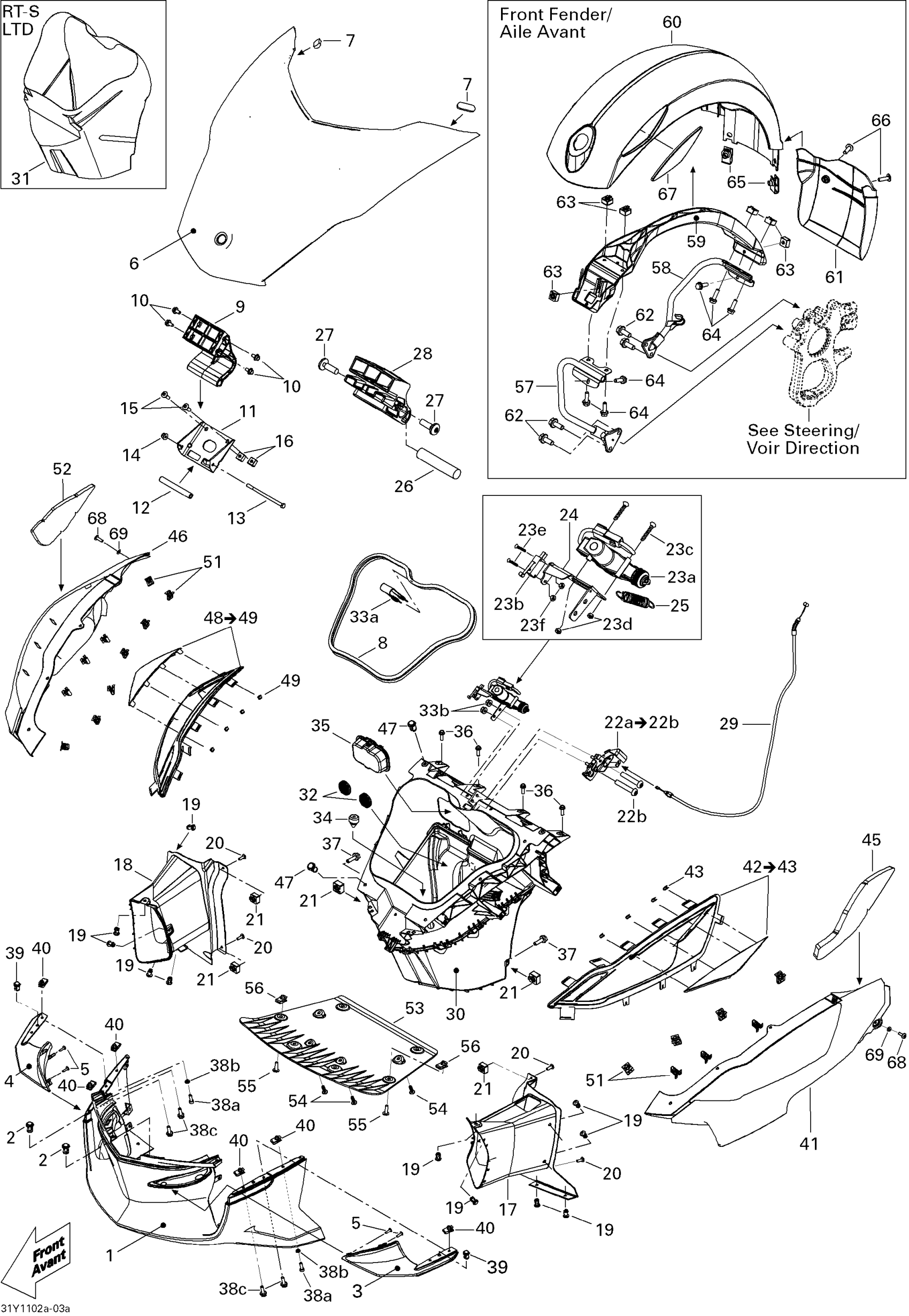

Can-Am Spyder RT LTD, 2011 Body And Accessories Front Diagram

Bare Bumper Cover | White Model This part replaces 705006184.

705006217

$158.99

Tuflok Plastic Rivet

293150230

$1.21

LH FRONT WING, CHROME - Call your local BRP dealership

705007393

Unavailable

RH Front Wing, Chrome

705007394

$129.99

Torx-Truss Pt K40 X 16

250000759

$1.74

Vegas White Pearl, Hood | Model-White

705006149

$629.99

Néoprene Pad

705006824

$7.39

Neoprene Seal ( 3 Meters per pack )

293250047

Unavailable

Hood Arm

705003248

$54.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Hood Pivot

705005434

$17.49

Spacer

705003322

$27.99

Hex. Screw M6 X 110

230061034

$1.74

Flange Elastic Nut M6

233261434

$3.61

Torx Truss Screw M6 X 20

250000488

$1.74

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

LH LOWER AIR DUCT - Call your local BRP dealership

705007446

Unavailable

RH LOWER AIR DUCT - Call your local BRP dealership

705007447

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Torx Truss Screw M6 X 20

250000488

$1.74

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

Latch Ass'Y

705009310

$104.99

TORX SCREW M6 X 35 - Call your local BRP dealership

235563594

Unavailable

Reverse Actuator Ass'y

710008369

$76.99

Position Sensor | Model-RT LTD

710001861

$21.99

Hex. Screw M4 X 40

207144060

$4.15

Elastic Stop Nut M4

232541600

$0.92

Hex Screw M3 X 20

207132044

$2.00

Elastic Stop Nut M3

232531423

$0.52

Actuator Bracket | Model-RT LTD

705003691

$26.99

SPRING - Call your local BRP dealership | Model-RT LTD

705003692

Unavailable

Bushing

705004513

$10.49

Torx Screw K50 X 16

250000720

$1.39

Hood Guide

705004468

$11.99

Hood Cable

517305460

$44.99

Storage Bin

705007320

$459.99

FRONT TRUNK LINER KIT - Call your local BRP dealership | RTS

219400166

Unavailable

Dual Lock Velcro Washer 3/4"

293740028

$4.19

Not Available As Spare Parts

XXX

Unavailable

Hex. Flange Elastic Nut M6

233261494

$1.26

Rubber Bumper

293830005

$5.33

FUSE CAP ASS'Y - Call your local BRP dealership

705003626

Unavailable

Hexagonal Head Screw

210262050

$1.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Socket Head Screw M6 X 20

205062044

$1.07

Flat Washer 6 mm

234061410

$1.04

Hex. Flange Screw M6 X 20

207662044

$1.66

Tuflok Plastic Rivet

293150230

$1.21

Panel Nut M6 X 1.0

250100198

$1.73

LH FRONR PANNEL, WHITE - Call your local BRP dealership

705006195

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

LH FRONT PANEL FOAM - Call your local BRP dealership

518325855

Unavailable

RH Fronr Pannel, White

705006196

$259.99

Tuflok Plastic Rivet

293150230

$1.21

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

RH FRONT PANEL FOAM - Call your local BRP dealership

518325854

Unavailable

Skid Plate

705002837

$68.99

Truss Head Torx Screw K50 X 20

250000297

$2.00

Torx Truss Screw M6 X 20

250000350

$4.39

Panel Nut M6 X 1.0

250100198

$1.73

LH Painted Fender Front Support | Model-RS STD

705010102

$86.99

RH Painted Fender Front Support | Model-RS STD

705010103

$86.99

LH Rear Fender Support | Model-RS STD

705010740

$83.99

Right Fender Rear Support | Model-RS STD

705010741

$83.99

Central Front Fender Support | Model-RS STD

705002389

$62.99

Pearl White LH Front Fender | Model-RS STD Vegas White Pearl

705003904

$204.99

Pearl White RH Front Fender | Model-RS STD Vegas White Pearl

705003903

$309.99

LH Mudguard | Model-RS STD

705001767

$51.99

RH Mudguard | Model-RS STD

705001768

$51.99

Hex. Flange Screw, Scotch Grip

207582034

$2.11

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

Hex. Flange Screw M6 X 20

207662084

$0.96

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss Screw M6 X 20

250000350

$4.39

Amber, Lateral Reflector

705002423

$12.88

Torx Truss Screw M6 X 20

250000350

$4.39

Plastic Washer

705003207

$0.80
