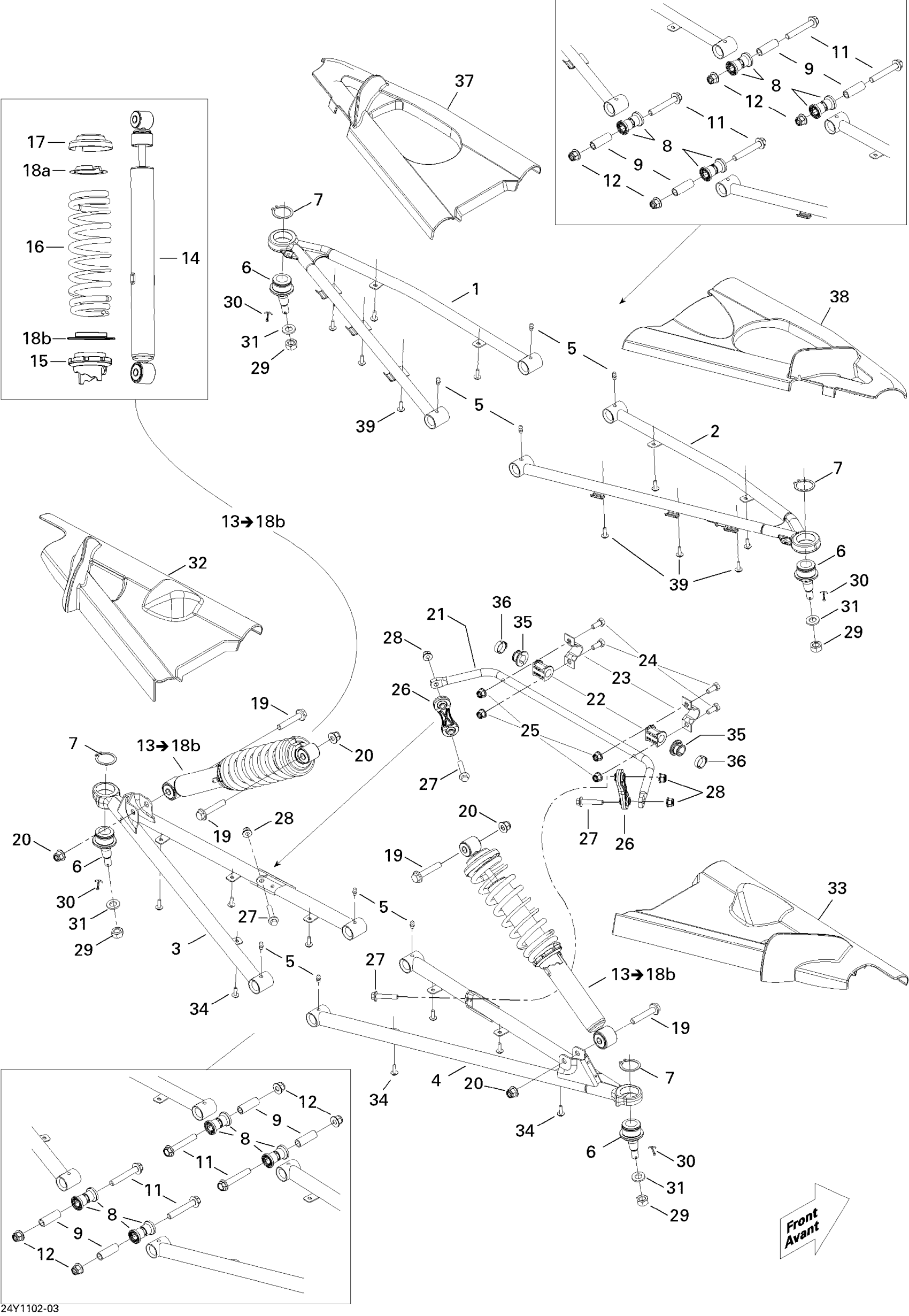

Can-Am Spyder RT LTD, 2011 Suspension, Front Diagram

#

Description
Price

1

LH UPPER ARM - Call your local BRP dealership

706201000

Unavailable

2

RH UPPER ARM - Call your local BRP dealership

706201001

Unavailable

3

LH LOWER ARM - Call your local BRP dealership

706201002

Unavailable

4

RH LOWER ARM - Call your local BRP dealership

706201003

Unavailable

5

Grease Fitting

408200700

$2.80

6

Ball Joint

706202044

$34.30

7

Circlip

293370035

$2.48

8

Bushing

706200181

$2.45

9

Bushing

706200618

$17.99

11

Hex. Flange Screw M10 X 65

207606536

$3.61

12

Hex. Flange Elastic Nut M10

233201434

$1.63

13

Not Available As Spare Part - Friction Washer

Unavailable

14

SHOCK - Call your local BRP dealership

706001059

Unavailable

15

ADJUSTER RING - Call your local BRP dealership

706001061

Unavailable

16

SPRING - Call your local BRP dealership

706000676

Unavailable

17

Spring Stopper

706200881

$10.30

18a

Cap

706200785

$4.28

18b

RING PROTECTOR - Call your local BRP dealership

706001062

Unavailable

19

Hex. Flange Screw

207605534

$2.00

20

Hex. Flange Elastic Nut M10

233201434

$1.63

21

SWAY BAR - Call your local BRP dealership

706201156

Unavailable

22

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

Unavailable

24

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

Unavailable

25

Hex. Flange Elastic Nut M8

233281434

$1.74

26

Tie Rod

706200671

$20.99

27

Hex. Flange Screw M8 X 40

207684034

$2.00

28

Hex. Flange Elastic Nut M8

233281434

$1.74

29

Nut M12

250100099

$1.64

30

Cotter Pin

250400035

$2.00

31

Hardened Washer

706200281

$2.34

32

LH LOWER DEFLECTOR - Call your local BRP dealership

706200884

Unavailable

33

RH LOWER DEFLECTOR - Call your local BRP dealership

706200885

Unavailable

34

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

35

SWAY BAR STOPPER - Call your local BRP dealership

706201158

Unavailable

36

Oetiker Clamp

293650012

$4.94

37

LH UPPER DEFLECTOR - Call your local BRP dealership

706200886

Unavailable

38

RH UPPER DEFLECTOR - Call your local BRP dealership

706200887

Unavailable

39

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
