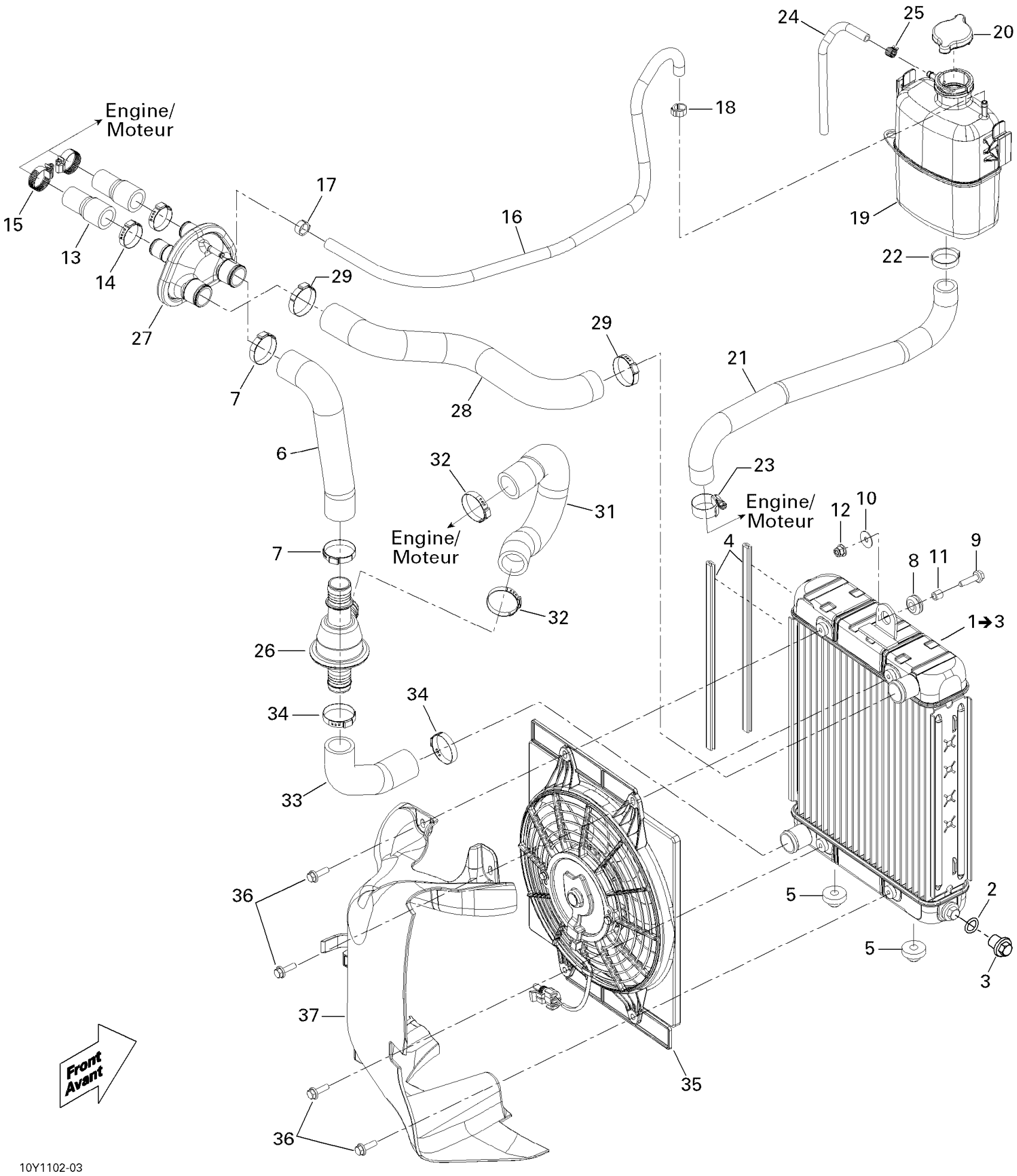

Can-Am Spyder RT LTD, 2011 Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership | Includes 1 to 3

709200128

Unavailable

2

O-RING - Call your local BRP dealership

709200217

Unavailable

3

DRAIN PLUG - Call your local BRP dealership

709200218

Unavailable

4

Trim 1000Mm Long

219704354

$15.99

5

Grommet

709200285

$9.89

6

HOSE - Call your local BRP dealership

709200215

Unavailable

7

Oetiker Gear Clamp 36.1MM

509000045

$8.49

8

Grommet

709000582

$4.79

9

Hex. Flange Screw M6 X 25

207662544

$1.49

10

Flat Washer

224060201

$1.49

11

Bushing

293900105

$7.79

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

13

HOSE_WATER PUMP UP FORMED - Call your local BRP dealership

709200144

Unavailable

14

Crimp Clamp

293650099

$4.39

15

Tridon Gear Clamp

293650173

$3.19

16

FORMED HOSE - Call your local BRP dealership

709200415

Unavailable

17

Oetiker Gear Clamp

293650025

$3.19

18

Oetiker Gear Clamp

293650025

$3.19

19

Coolant Tank

709201323

$72.36

20

Pressure Cap

509000187

$31.99

21

HOSE - Call your local BRP dealership

709200139

Unavailable

22

Oetiker Clamp

293650141

$4.39

23

Tridon Gear Clamp

293650051

$4.29

24

Polyurethane Hose 10000Mm Long

219704410

$57.99

25

Spring Clamp

414554800

$1.49

26

Thermostat Housing

709200384

$88.99

27

Connector

709200151

$19.49

28

COOLANT FORMED HOSE - Call your local BRP dealership

709200272

Unavailable

29

Oetiker Gear Clamp 36.1MM

509000045

$8.49

31

HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership

709200259

Unavailable

32

Oetiker Gear Clamp 36.1MM

509000045

$8.49

33

HOSE - Call your local BRP dealership

709200185

Unavailable

34

Oetiker Gear Clamp 36.1MM

509000045

$8.49

35

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$244.99

36

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

37

DEFLECTOR - Call your local BRP dealership

709200466

Unavailable
