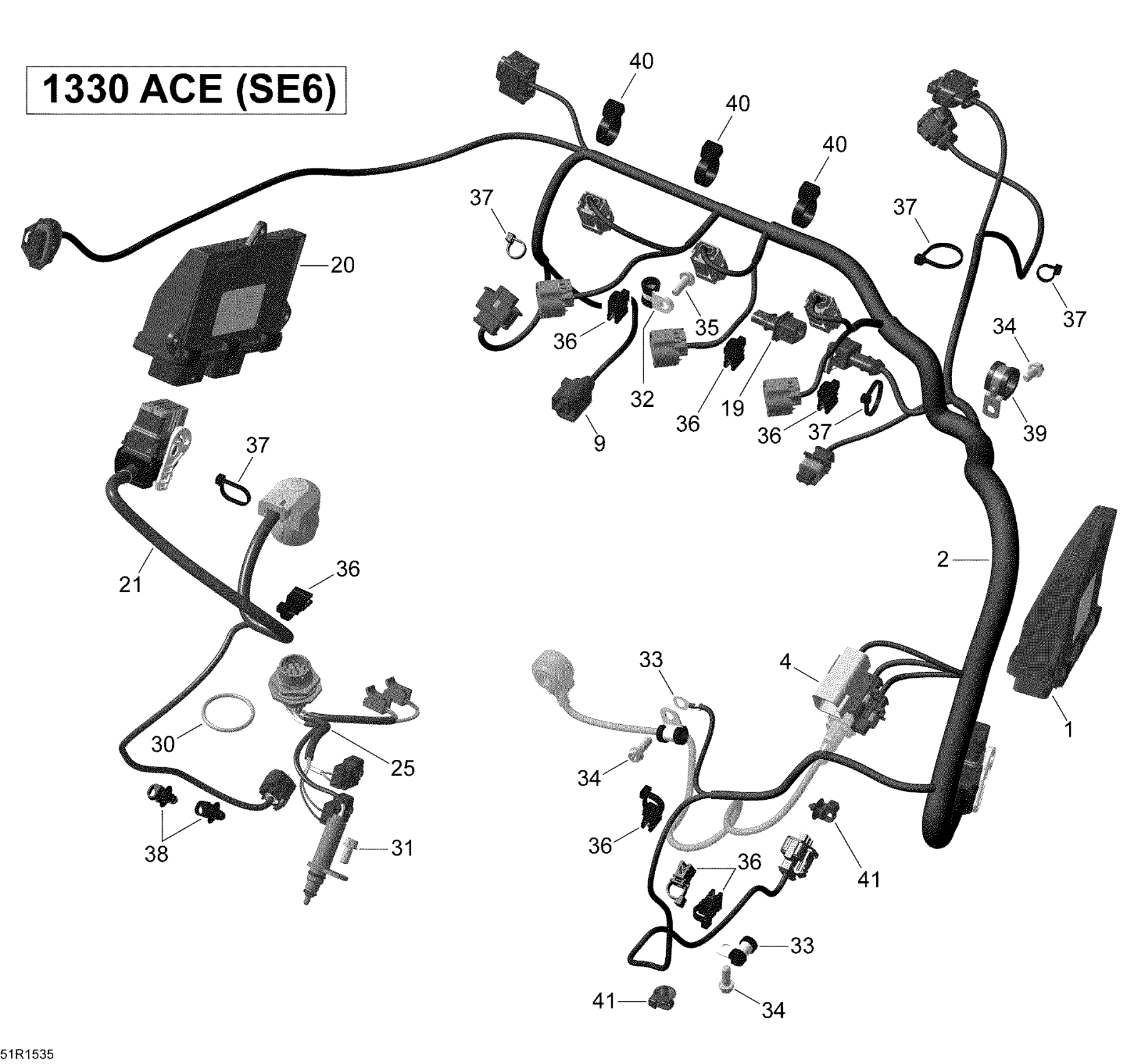

Can-Am Spyder RT Limited SE6, 2015 Engine Harness And Electronic Module _51R1535 Diagram

Description

Price

Electronic Box | Model-North America, Europe, Japan

420666647

$720.00

Wiring Harness | Includes 2 to 4

420266783

$440.00

Male Terminal Housing, 6 Circuits

710001539

$15.57

Housing

710001184

$10.00

Connector

420650055

$12.00

Transmission Module

420666840

$700.00

Transmission Wiring Harness

420266880

$260.00

Wiring Harness

420264104

$500.00

O-Ring

420450481

$5.00

Hex. Flange Screw M6 X 12

420440147

$1.97

Open Clamp

414176000

$1.86

Clamp

420853414

$14.92

Hex. Flange Screw M6 X 12

420440147

$1.97

Torx Flange Screw M6 X 16

420641588

$1.74

Cable Clamp 150mm

420951650

$3.55

Tie Rap

420866714

$1.56

Tie Rap

420951345

$2.31

Cable Clamp

420851493

$17.66

Tie-Rap

420866716

$1.56

Tie-Rap With Mount

420951341

$6.26
