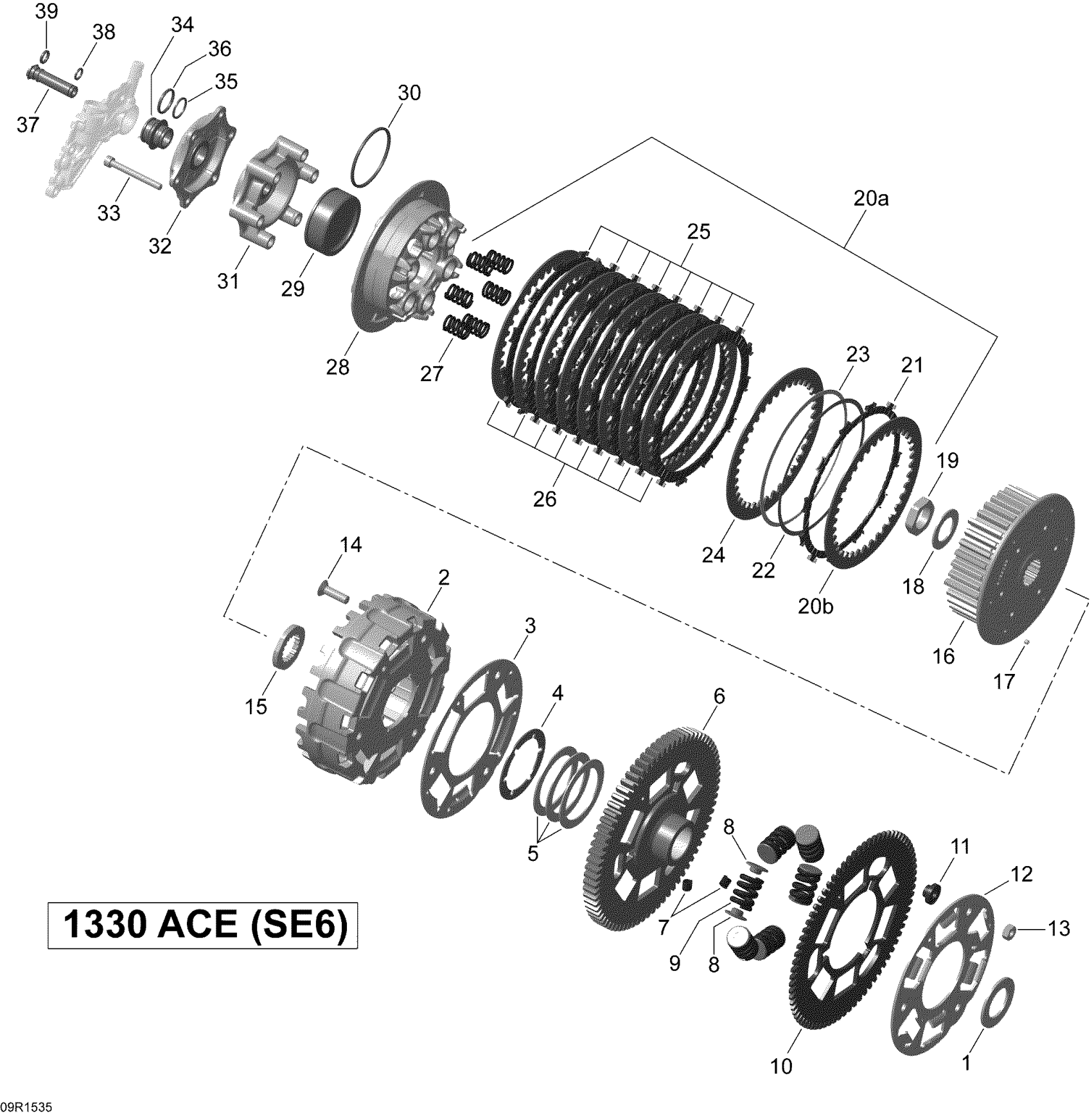

Can-Am Spyder RT Limited SE6, 2015 Clutch _09R1535 Diagram

#

Description
Price

1

Thrust Washer

420627260

$10.00

2

Clutch Drum Ass'y | Includes 2 to 14

420685831

$960.00

3

Support Plate

420459105

$61.00

4

Thrust Washer

420626870

$10.00

5

Disc Spring

420239397

$18.00

6

Clutch Gear

420435408

$250.00

7

Compression Spring

420638030

$19.00

8

Spring Retainer

420247017

$16.00

9

Compression Spring

420238132

$19.00

10

Anti-Backlash Gear Teeth

420435411

$160.00

11

Distance Sleeve

420647200

$18.00

12

Support Plate

420459100

$61.00

13

Hex. Nut M8

232081414

$0.60

14

Screw M8 X 28

420440795

$3.00

15

Thrust Washer

420627225

$13.00

16

Clutch Hub Ass'y | Includes 16 to 17

420459087

$180.00

17

Adjustment Screw M4 X 4

420640805

$1.00

18

Spring Washer

420245830

$10.00

19

Hex. Nut M24

420242012

$15.35

20a

Disc Kit | Includes 20a to 27

420686063

$410.00

20b

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Thrust Washer

420626970

$15.00

23

Disc Spring

420238980

$17.00

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Clutch Spring

420238890

$8.00

28

Pressure Plate

420459095

$77.00

29

Clutch Piston

420456082

$64.00

30

Sealing Ring

420201140

$35.00

31

CLUTCH CYLINDER - Call your local BRP dealership

420456075

Unavailable

32

OIL DUCT COVER - Call your local BRP dealership

420212085

Unavailable

33

Allen Screw M6 X 55

420240332

$4.62

34

OIL SUPPLY PISTON - Call your local BRP dealership

420456175

Unavailable

35

SEALING RING - Call your local BRP dealership

420201155

$23.05

36

O-Ring

420630962

$2.00

37

Piston Oil Supply

420456171

$39.00

38

Sealing Ring

420201150

$19.00

39

O-Ring

420931765

$0.81
