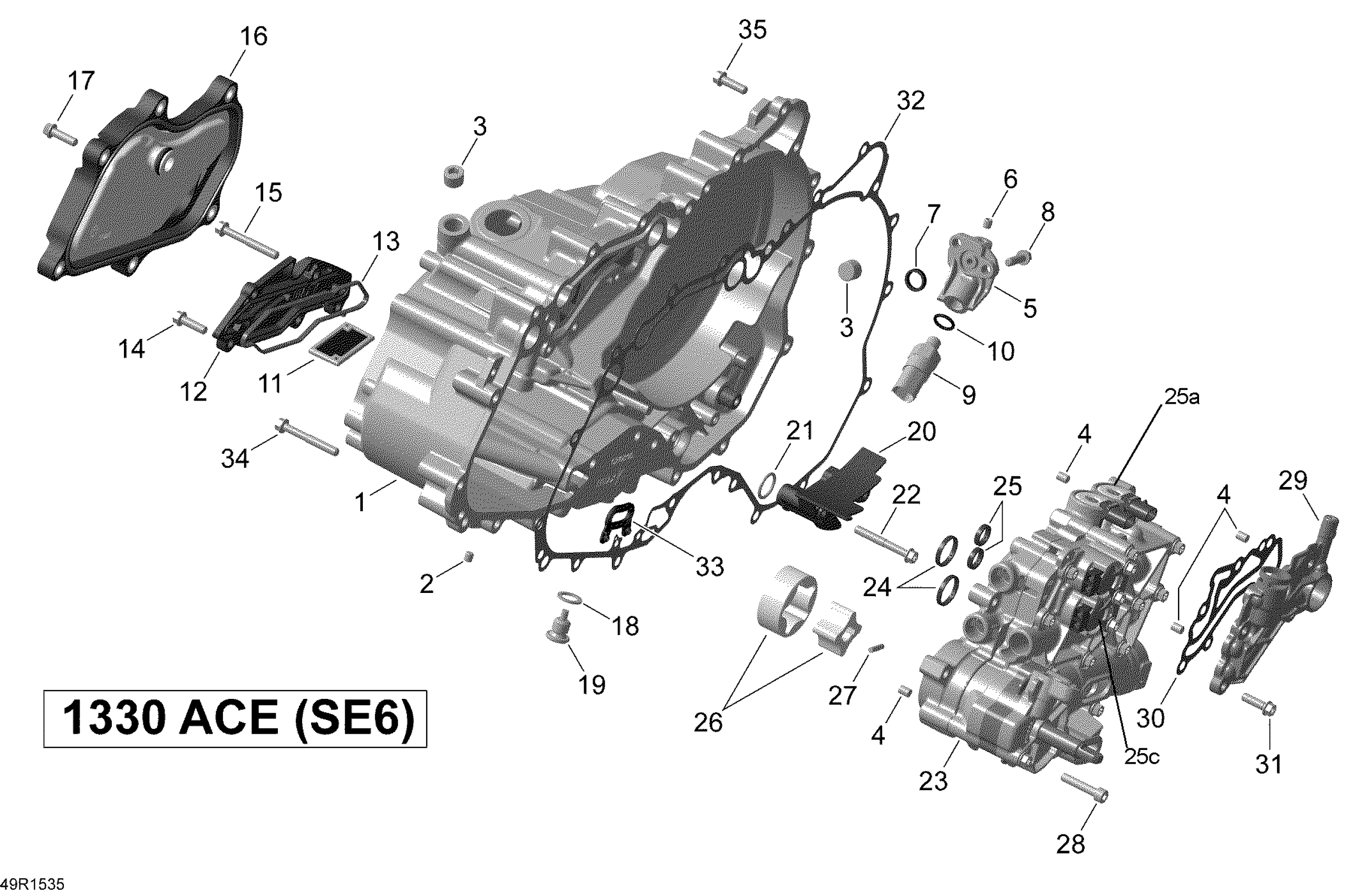

Can-Am Spyder RT Limited SE6, 2015 Clutch Cover _49R1535 Diagram

#

Description
Price

1

Clutch Cover Ass'y | Includes 1 to 4

420212907

$487.00

2

PLUG SCREW M6 - Call your local BRP dealership

420841770

Unavailable

3

Plug Screw M14 X 1.5

420641308

$12.91

4

Center Pin

420232210

$8.29

5

Pressure Sensor Housing

420212173

$74.00

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Gasket

420450310

$2.00

8

Torx Flange Screw M6 X 20

420440207

$2.54

9

Oil Pressure Sensor

420264166

$320.00

10

O-Ring

420450350

$21.00

11

Oil Sieve

420656990

$13.00

12

Oil Duct Cover

420210870

$72.00

13

Gasket

420250630

$12.00

14

Torx Flange Screw M6 X 20

420440207

$2.54

15

Torx Flange Screw M6 X 45

420440324

$0.81

16

Oil Filter Cover

420211156

$138.00

17

Torx Flange Screw M6 X 20

420440207

$2.54

18

Copper Washer

420250640

$0.81

19

Magnetic Drain Plug M12 X 1.5

420241780

$17.66

20

Oil Guiding Plate

420224085

$19.00

21

O-Ring

420430220

$8.03

22

Torx Flange Screw M6 X 45

420440324

$0.81

23

Hydraulic Housing Ass'y

420210982

$2,565.00

24

Gasket

420450240

$2.00

25

Gasket

420450310

$2.00

25a

Solenoid Valve 3/2

420264212

$240.00

25b

Spring Clip

420939040

$7.00

25c

Solenoid Valve Ass'y

420656792

$320.00

25d

Retaining Plate

420651701

$14.00

25e

Hex. Flange Screw M6 X 12

420440147

$1.97

26

Oil Pump Rotor

420456290

$74.00

27

Needle Pin

420232731

$1.56

28

Socket Head Screw M6 X 30

205063044

$1.42

29

VALVE HOUSING - Call your local BRP dealership

420211122

Unavailable

30

Gasket

420450290

$26.00

31

Torx Flange Screw M6 X 20

420440207

$2.54

32

Gasket Ass`y

420450032

$26.00

33

Gasket Ass`y

420450032

$26.00

34

Torx Flange Screw M6 X 45

420440324

$0.81

35

Torx Flange Screw M6 X 20

420440207

$2.54
