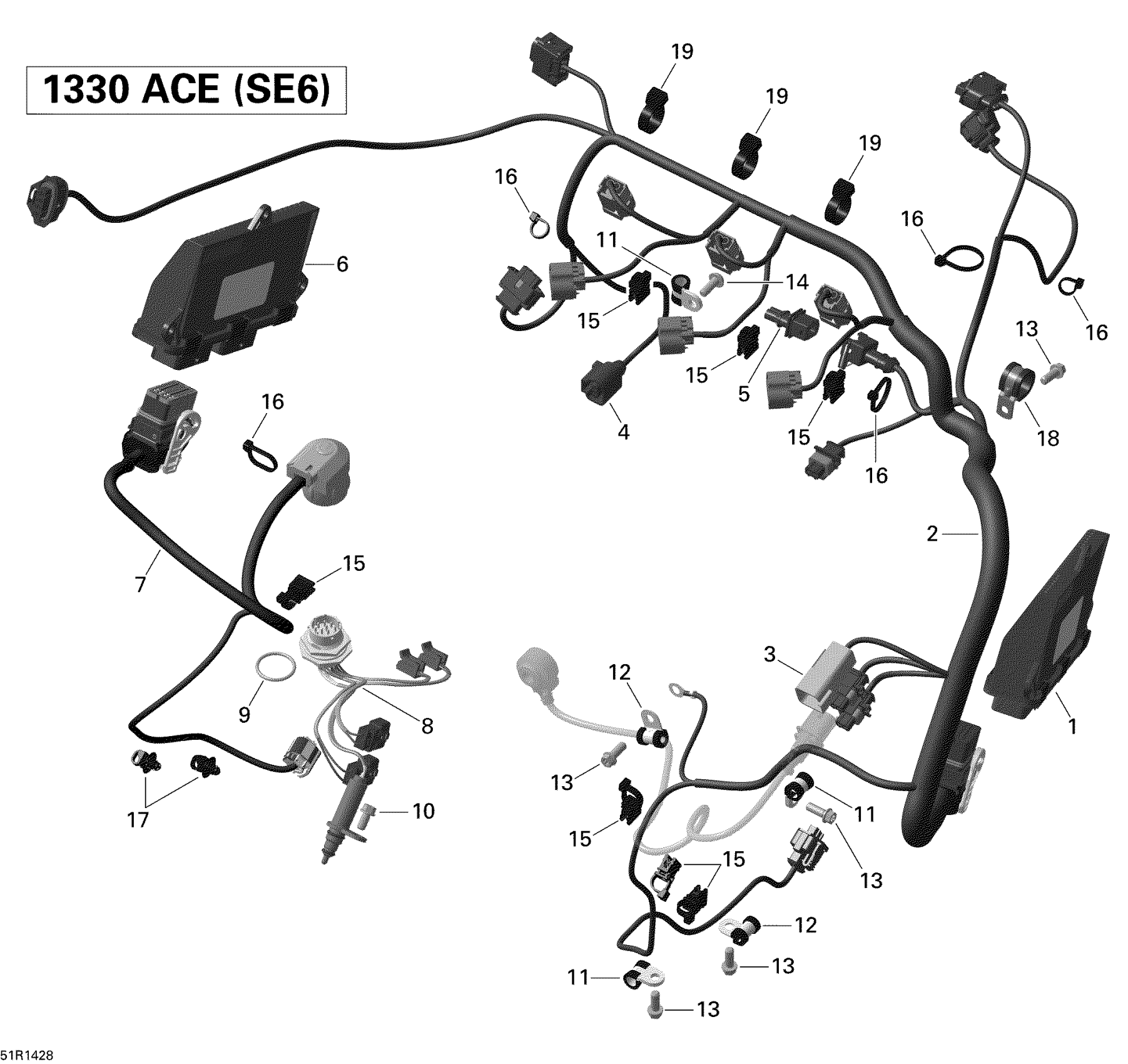

Can-Am Spyder RT Limited SE6, 2014 Engine Harness And Electronic Module Diagram

#

Description
Price

1

Electronic Box | Model-North America, Europe, Japan

420666647

$720.00

1

Electronic Box | Model-North America, Europe, Japan

420666647

$720.00

2

Wiring Harness | Includes 2 to 4

420266783

$440.00

3

Male Terminal Housing, 6 Circuits

710001539

$15.57

4

Housing

710001184

$10.00

5

Connector

420650055

$12.00

6

Transmission Module

420666840

$700.00

6

Transmission Module

420666840

$700.00

7

Transmission Wiring Harness

420266880

$260.00

8

Wiring Harness

420264104

$500.00

9

O-Ring

420450481

$5.00

10

Hex. Flange Screw M6 X 12

420440147

$1.97

11

Open Clamp

414176000

$1.86

12

Clamp

420853414

$14.92

13

Hex. Flange Screw M6 X 12

420440147

$1.97

14

Torx Flange Screw M6 X 16

420641588

$1.74

15

Cable Clamp 150mm

420951650

$3.55

16

Tie Rap

420866714

$1.56

17

Tie Rap

420951345

$2.31

18

Cable Clamp

420851493

$17.66

19

Tie-Rap

420866716

$1.56
