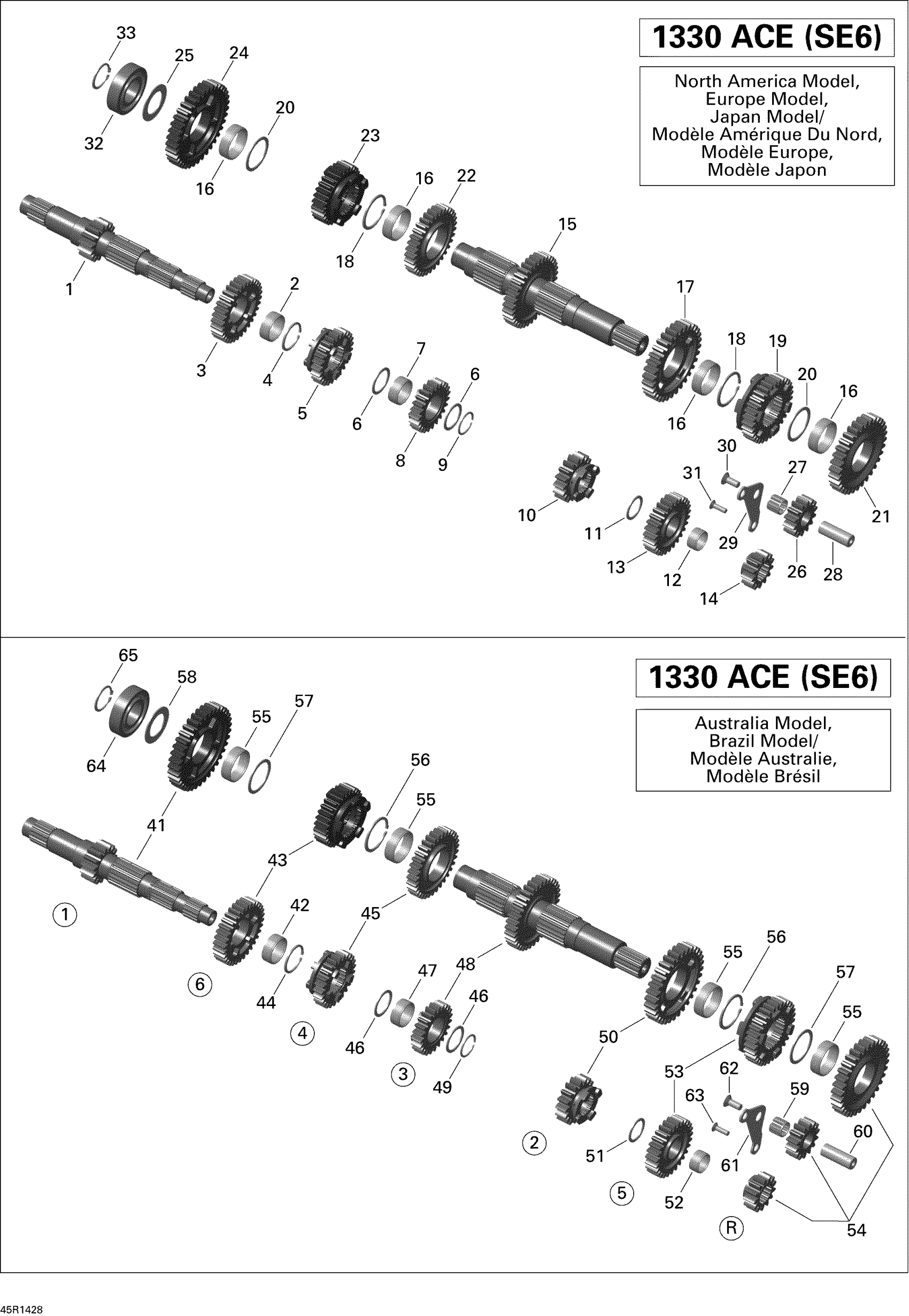

Can-Am Spyder RT Limited SE6, 2014 Gear Box Diagram

#

Description
Price

1

CLUTCH SHAFT - Call your local BRP dealership | Model-North America, Europe, Japan

420637081

Unavailable

2

Needle Bearing

420432131

$32.00

3

FREE PINION 32 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435181

Unavailable

4

Retaininig Ring 34 X 2

420245311

$9.00

5

GEAR PINION 26 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435215

Unavailable

6

Thrust Washer

420627294

$7.00

7

Needle Bearing

420932976

$27.00

8

FREE PINION 23 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435191

$69.00

9

Groove Ring

420245361

$9.00

10

FREE PINION 17 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435222

$69.00

11

Thrust Washer

420627298

$4.00

12

Needle Bearing

420232533

$30.00

13

Free Pinion 28 Teeth | Model-North America, Europe, Japan

420435205

Unavailable

14

Gear Pinion 13 Teeth | Model-North America, Europe, Japan

420435231

Unavailable

15

MAIN SHAFT - Call your local BRP dealership | Model-North America, Europe, Japan

420637092

Unavailable

16

Needle Bearing

420632821

$57.00

17

Free Pinion 32 Teeth | Model-North America, Europe, Japan

420435265

Unavailable

18

Retaininig Ring 41.5 X 2

420245411

$15.00

19

GEAR PINION 30 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435295

Unavailable

20

Thrust Washer

420626831

$11.83

21

FREE PINION 32 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435272

Unavailable

22

Free Pinion 33 Teeth | Model-North America, Europe, Japan

420435255

Unavailable

23

GEAR PINION 29 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435281

Unavailable

24

FREE PINION 37 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435241

Unavailable

25

Thrust Washer

420626851

$7.00

26

INTERMEDIATE GEAR 14 TEETH - Call your local BRP dealership | Model-North America, Europe, Japan

420435351

Unavailable

27

Needle Cage

420432034

$34.58

28

Bolt

420249050

$21.00

29

Retaining Plate

420651620

$15.00

30

Screw M8 X 20

420641406

$4.60

31

Screw M6 X 20

420941436

$2.37

32

Ball Bearing

420232782

$24.00

33

RETAININIG RING 30 X 2 - Call your local BRP dealership

420945619

$4.60

41

Clutch Shaft Kit | Speed (1)

420481150

$302.00

42

Needle Bearing

420432131

$32.00

43

Gear Set | Speed (6)

420481175

$145.00

44

Retaininig Ring 34 X 2

420245311

$9.00

45

Gear Set | Speed (4)

420481165

$145.00

46

Thrust Washer

420627294

$7.00

47

Needle Bearing

420932976

$27.00

48

Gear Set | Speed (3)

420481160

$350.00

49

Groove Ring

420245361

$9.00

50

Gear Set | Speed (2)

420481155

$185.00

51

Thrust Washer

420627298

$4.00

52

Needle Bearing

420232533

$30.00

53

Gear Set | Speed (5)

420481170

$145.00

54

Gear Set | Reverse (R)

420481140

$115.00

55

Needle Bearing

420632821

$57.00

56

Retaininig Ring 41.5 X 2

420245411

$15.00

57

Thrust Washer

420626831

$11.83

58

Thrust Washer

420626851

$7.00

59

Needle Cage

420432034

$34.58

60

Bolt

420249050

$21.00

61

Retaining Plate

420651620

$15.00

62

Screw M8 X 20

420641406

$4.60

63

Screw M6 X 20

420941436

$2.37

64

Ball Bearing

420232782

$24.00

65

RETAININIG RING 30 X 2 - Call your local BRP dealership

420945619

$4.60
