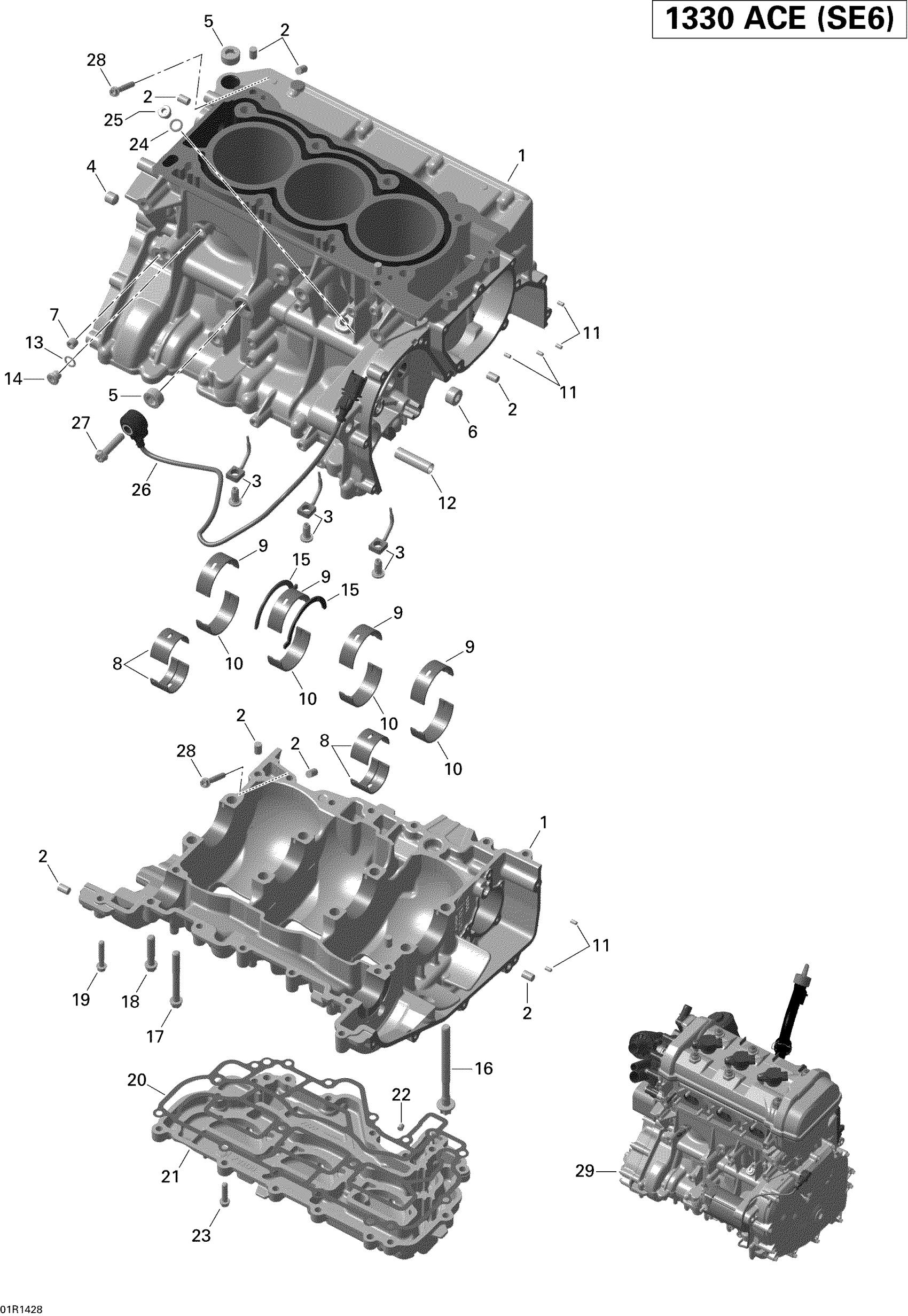

Can-Am Spyder RT Limited SE6, 2014 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 14

420685722

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spraying Jet

420656972

$25.49

4

Plug Screw M12x1,5

420840658

$7.51

5

Plug Screw M20 X 1.5

420641317

$14.22

6

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

7

Plug Screw M10 X 1

420641323

$14.28

8

Plain Bearing

420933858

$27.49

9

Plain Bearing

420233848

$28.49

10

Plain Bearing

420233846

$28.49

11

Needle Pin

420929075

$2.11

12

SLEEVE - Call your local BRP dealership

420647280

Unavailable

13

Oil Seal

420230150

$2.85

14

Plug Screw M10 X 1

420641733

$12.72

15

Half-Ring

420933475

$11.63

16

Torx Flange Screw M9 X 113

420940945

$13.70

17

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420441082

Unavailable

18

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

19

Torx Flange Screw M6 X 35

420440274

$1.01

20

Gasket

420250610

$15.89

21

Oil Sump

420611740

$163.99

22

Plug Screw M8 x 1

420941614

$6.98

23

Torx Flange Screw M6 X 25

420440234

$3.06

24

Oil Seal

420230150

$2.85

25

Plug Screw M10 X 1

420641733

$12.72

26

Noise Sensor

420664031

$63.99

27

Torx Flange Screw M8 X 35

420641188

$7.41

28

Torx Flange Screw M6 X 35

420440274

$1.01

29

Engine, 1330 ACE (SE6)

331403211

Unavailable
