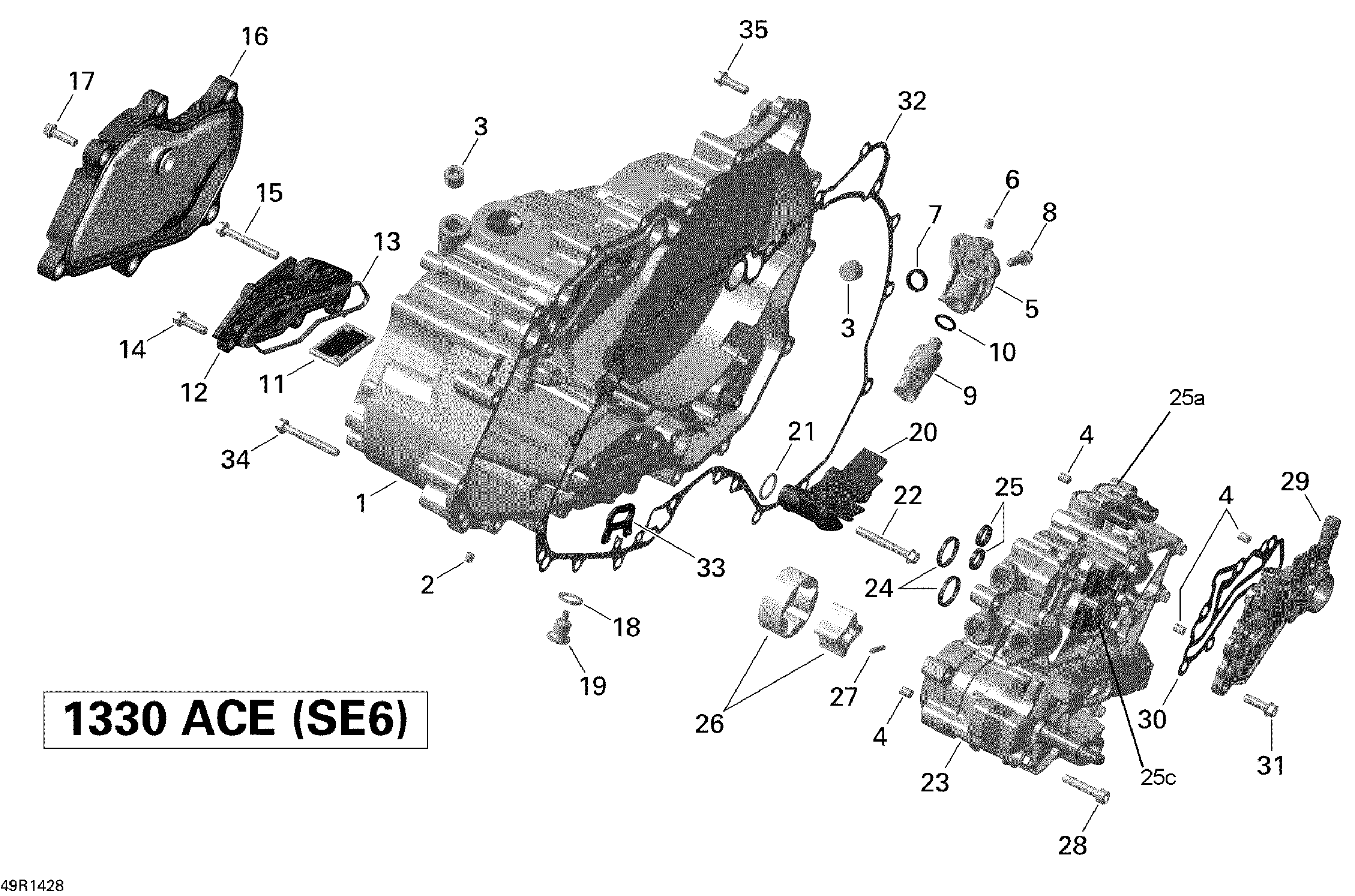

Can-Am Spyder RT Limited SE6, 2014 Clutch Cover Diagram

#

Description
Price

1

Clutch Cover Ass'y | Includes 1 to 4

420212907

$487.49

2

PLUG SCREW M6 - Call your local BRP dealership

420841770

Unavailable

3

Plug Screw M14 X 1.5

420641308

$13.23

4

Center Pin

420232210

$8.26

5

Pressure Sensor Housing

420212173

$73.99

6

PLUG SCREW M6 - Call your local BRP dealership

420841770

Unavailable

7

Gasket

420450310

$2.21

8

Socket Head Screw M6 X 20

205062044

$1.26

9

Oil Pressure Sensor

420264166

$319.99

10

O-Ring

420450350

$20.99

11

Oil Sieve

420656990

$13.10

12

Oil Duct Cover

420210870

$71.99

13

Gasket

420250630

$11.64

14

Torx Flange Screw M6 X 20

420440207

$3.06

15

Torx Flange Screw M6 X 45

420440324

$0.98

16

Oil Filter Cover

420211156

$137.99

17

Torx Flange Screw M6 X 20

420440207

$3.06

18

Copper Washer

420250640

$0.98

19

Magnetic Drain Plug M12 X 1.5

420241780

$17.59

20

Oil Guiding Plate

420224085

$19.19

21

O-Ring

420430220

$8.26

22

Torx Flange Screw M6 X 45

420440324

$0.98

23

Hydraulic Housing Ass'y

420210982

$2,564.99

24

Gasket

420450240

$2.43

25

Gasket

420450310

$2.21

25a

Solenoid Valve 3/2

420264212

$239.99

25b

Spring Clip

420939040

$6.61

25c

Solenoid Valve Ass'y

420656792

$319.99

25d

Retaining Plate

420651701

$14.21

25e

Hex. Flange Screw M6 X 12

420440147

$2.00

26

Oil Pump Rotor

420456290

$73.99

27

Needle Pin

420232731

$4.01

28

Socket Head Screw M6 X 30

205063044

$1.69

29

VALVE HOUSING - Call your local BRP dealership

420211122

Unavailable

30

Gasket

420450290

$26.49

31

Torx Flange Screw M6 X 20

420440207

$3.06

32

Gasket Ass`y

420450032

$25.99

33

Gasket Ass`y

420450032

$25.99

34

Torx Flange Screw M6 X 45

420440324

$0.98

35

Torx Flange Screw M6 X 20

420440207

$3.06
