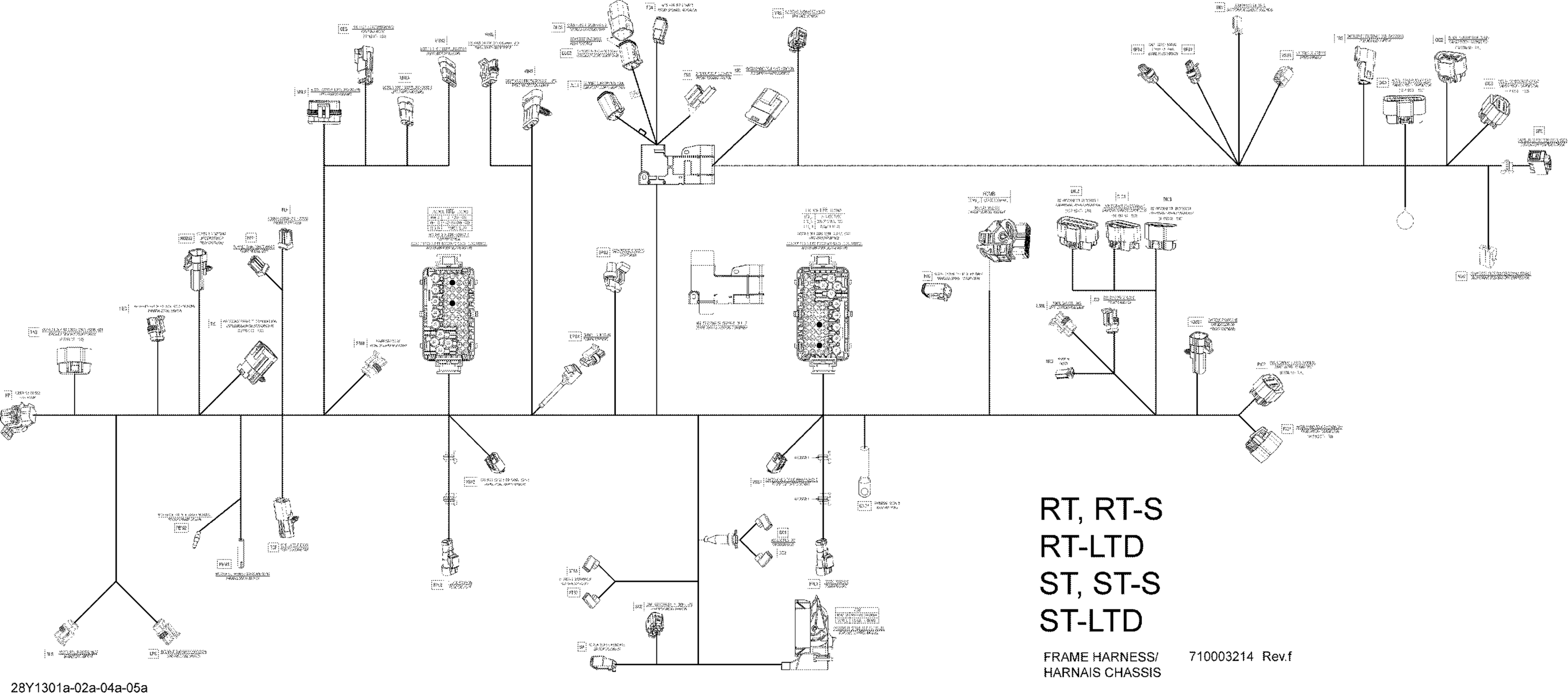

Can-Am Spyder RT Limited SE5, 2013 Electrical Harness Frame Diagram

#

Description
Price

1

HARNESS-FRAME - Call your local BRP dealership | Includes 1 to YRS

219800318

Unavailable

ASC

Female Terminal Housing

515176550

$6.24

ASC

Female Terminal

515175282

$6.24

BA

Female Terminal Housing, 2 Circuits

515175670

$7.61

BA

Female Lock, 2 Circuits

515175675

$4.28

BA

Female Terminal

278001665

$3.73

BFS1

Housing 2 Circuits

515177043

Unavailable

BFS1

Wire Seal

710001163

$5.10

BFS1

Female Terminal

710001164

$5.92

BFS2

Housing 2 Circuits

515177043

Unavailable

BFS2

Wire Seal

710001163

$5.10

BFS2

Female Terminal

710001164

$5.92

BLS

Female Housing, 2 Circuits

409209500

$13.07

BLS

Wire Seal

515176621

$6.79

BLS

Female Terminal

710001340

$4.96

CES

Housing Connector

515177298

$9.84

CES

Seal

710001233

$2.55

CES

Terminal

710001224

$2.93

CIC1

Housing

710001226

$11.06

CIC1

Cap

710001225

$7.27

CIC1

Seal

710001233

$2.55

CIC1

Seal Wire

710001332

$2.72

CIC1

Terminal

710001229

$2.93

CIC1

Terminal

710001228

$2.72

CIC2

Housing

710001951

$11.81

CIC2

Cap

710001225

$7.27

CIC2

Seal

710001233

$2.55

CIC2

Seal Wire

710001332

$2.72

CIC2

Terminal

710001229

$2.93

CIC2

Terminal

710001228

$2.72

CIC3

Housing

710001928

$14.52

CIC3

Cap

710001225

$7.27

CIC3

Seal

710001233

$2.55

CIC3

Terminal

710001229

$2.93

D2

Diode

409012700

$10.51

DC1

Female Terminal

710002398

$1.67

DC1

Female Terminal

710002399

$1.88

DC2

Female Terminal

710002398

$1.67

DC2

CAP - Call your local BRP dealership

710000670

Unavailable

DC2

Female Terminal

710002399

$1.88

DIC1

Housing

710001226

$11.06

DIC1

Seal

710001233

$2.55

DIC1

Terminal

710001229

$2.93

DIC2

HOUSING - Call your local BRP dealership

710001874

$13.49

DIC2

Plug

710002075

$2.47

DIC2

Wire Seal

278002186

$4.51

DIC2

Seal | PACKARD 12191222

710001858

$5.18

DIC2

Female Terminal

278002187

$5.04

DIC2

Terminal

710001873

$2.19

DIC3

Housing

710001232

$13.39

DIC3

Cap

710001225

$7.27

DIC3

Seal

710001233

$2.55

DIC3

Seal Wire

710001332

$2.72

DIC3

Terminal

710001229

$2.93

DIC3

Terminal

710001228

$2.72

DLC1

Male Housing, 6 Circuits

515175673

$12.66

DLC1

Male Wedge, 6 Circuits

515175678

$4.96

DLC1

Sealing Cap

293000052

$2.55

DLC1

Female Terminal

278001665

$3.73

DLC2

Male Housing, 6 Circuits

515175673

$12.66

DLC2

Male Wedge, 6 Circuits

515175678

$4.96

DLC2

Sealing Cap

293000052

$2.55

DLC2

Female Terminal

278001665

$3.73

DLC3

Housing

710003006

$7.24

DPS1

Housing

710001161

$9.15

DPS1

Lock

710001162

$3.18

DPS1

Cap

710001225

$7.27

DPS1

Cap

710001114

$16.39

DPS1

Wire Seal

710001163

$5.10

DPS1

Female Terminal

710001164

$5.92

DPS2

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS2

SEAL - Call your local BRP dealership

710001935

Unavailable

DPS2

Female Terminal

710001160

$5.14

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECMB

Plug

710001592

$2.06

ECMB

Female Terminal

710001589

$1.79

ECMB_L

Female Terminal

710001590

$1.69

ECMB_L

Female Terminal

710001727

$2.55

FLH

Female Housing, 3 Circuits

515175495

$14.90

FLH

Female Terminal

515175231

$4.00

FP

Housing

710001132

$9.31

FP

Lock

710001133

$4.00

FP

Seal

710000643

$4.00

FP

Seal

278001482

$2.55

FP

Female Terminal

278001481

$2.93

FPL1

Clip

710000992

$3.88

FPL1

Male Terminal Housing, 2 Circuits

409209400

$14.52

FPL1

Wire Seal

515176621

$6.79

FPL1

Male Terminal

515176164

$6.24

FPL2

Clip

710000992

$3.88

FPL2

Male Terminal Housing, 2 Circuits

409209400

$14.52

FPL2

Wire Seal

515176621

$6.79

FPL2

Male Terminal

515176164

$6.24

FRH

Female Housing, 3 Circuits

515175495

$14.90

FRH

Female Terminal

515175231

$4.00

FSA

Female Terminal Housing, 2 Circuits

515175670

$7.61

FSA

Female Lock, 2 Circuits

515175675

$4.28

FSA

Female Terminal

278001665

$3.73

FSS

Terminal

710001873

$2.19

FSS

Terminal

710001235

$1.67

HBS

Female Housing, 3 Circuits

409209600

$34.30

HBS

Plug

409013700

$4.28

HBS

Wire Seal

515176621

$6.79

HBS

Female Terminal

710001340

$4.96

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HIC

Female Terminal

278000632

$1.69

HN3

Female Housing, 2 Circuits

515175658

$14.90

HN3

Female Terminal

515175231

$4.00

HO2S1

Housing

710002466

$2.90

HO2S1

Connector Holder

710002033

$3.12

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.90

HO2S2

Housing

710002466

$2.90

HO2S2

Connector Holder

710002033

$3.12

HO2S2

Seal

278001482

$2.55

HO2S2

Gold Terminal

710002597

$2.90

KIC

Housing

710001231

$11.69

KIC

Seal Wire

710001332

$2.72

KIC

TERMINAL - Call your local BRP dealership

710001863

Unavailable

LBHL

Female Housing, 3 Circuits

409209600

$34.30

LBHL

Wire Seal

278001013

$2.72

LBHL

Female Terminal

278001014

$2.72

LED

Female Housing, 2 Circuits

409209500

$13.07

LED

Wire Seal

515176621

$6.79

LED

Female Terminal

710001340

$4.96

LFB

Cover

710007491

$16.39

LFB

LOGO FUSE LFB - Call your local BRP dealership

710003080

Unavailable

LFB

Fuse, 25 AMP

710001046

$3.91

LFB

Fuse, 40 AMP

710001047

$11.52

LFB

Fuse, 40 AMP

710001047

$11.52

LFB

Fuse, 40 AMP

710001047

$11.52

LFB

Fuse 30 amp.

710001200

$6.69

LFB

Little Fuse, 5 Amperes

710000742

$7.24

LFB

Little Fuse, 10 Amperes

710000744

$7.24

LFB

Little Fuse, 10 Amperes

710000744

$7.24

LFB

Little Fuse, 15 Ampere

710000745

$6.77

LFB

Little Fuse, 15 Ampere

710000745

$6.77

LFB

Little Fuse, 15 Ampere

710000745

$6.77

LFB

Little Fuse, 20 Amperes

710000746

$6.77

LFB

Fusebox Ass'y

710005623

$41.76

LFB

Fusebox Ass'y

710005623

$41.76

LFB

50 Amps Relay

710003143

$12.64

LFB

Relay, 30 AMP

515176774

$18.63

LFB

Relay

715900824

$16.22

LFB

Relay

715900824

$16.22

LFB

Relay

715900824

$16.22

LFB

PLUG - Call your local BRP dealership

710002633

Unavailable

LFB

Wire Seal

278001065

$5.85

LFB

Wire Seal

278000218

$3.48

LFB

Female Terminal

710000918

$5.10

LFB

Female Terminal

278002578

$0.86

LFB_C

Little Fuse, 5 Amperes

710000742

$7.24

LFB_C

Little Fuse, 10 Amperes

710000744

$7.24

LFB_C

Little Fuse, 10 Amperes

710000744

$7.24

LFB_C

Little Fuse, 15 Ampere

710000745

$6.77

LFB_C

Little Fuse, 20 Amperes

710000746

$6.77

LFB_J

Seal Joint

710003134

$1.39

LFB_J

Terminal Joint

710001905

$2.09

LFB_J

Seal Joint

710003133

$0.90

LFB_J

Terminal

710001630

$2.09

LFB_J

Terminal

710001906

$2.51

LFB_J

M Terminal

710003135

$2.49

LFB_R

Seal Joint

710003133

$0.90

LFB_R

Seal Joint

710003132

$0.81

LFB_R

F Terminal

710003125

$3.01

LPS

Female Housing, 3 Circuits

409209600

$34.30

LPS

Plug

409013700

$4.28

LPS

Wire Seal

515176621

$6.79

LPS

Female Terminal

710001340

$4.96

MSL2

CONNECTOR - Call your local BRP dealership

710000816

Unavailable

MSL2

Plug

409013700

$4.28

MSL2

Wire Seal

515176621

$6.79

MSL2

Wire Seal

278001013

$2.72

MSL2

Female Terminal

278001014

$2.72

MSL2

Female Terminal

710001340

$4.96

MSL3

Housing

710000568

$10.51

MSL3

Plug

409013700

$4.28

MSL3

Wire Seal

515176621

$6.79

MSL3

Male Terminal

515176164

$6.24

MSR2

Housing, 6 Circuits | Europe Models

710000815

Unavailable

MSR2

Wire Seal

515176621

$6.79

MSR2

Male Terminal

515176164

$6.24

PBM1

Insulated Sheath

278001007

$3.12

PBM1

Female Terminal

710000421

$5.30

PBM2

Insulated Sheath

278001008

$3.10

PBM2

Female Terminal

278002261

$6.01

PIC1

Housing

710001943

$17.59

PIC1

Cap

710001225

$7.27

PIC1

Seal

710001233

$2.55

PIC1

Seal Wire

710001332

$2.72

PIC1

Terminal

710001229

$2.93

PIC1

Terminal

710001228

$2.72

PIC2

Housing

710001928

$14.52

PIC2

Cap

710001225

$7.27

PIC2

Seal

710001233

$2.55

PIC2

Terminal

710001229

$2.93

PRS

Male Housing

515175666

$12.66

PRS

Male Lock, 3 Circuits

409207600

$2.93

PRS

Male Terminal

710001348

$10.81

RBHL

Female Housing, 3 Circuits

409209600

$34.30

RBHL

Wire Seal

278001013

$2.72

RBHL

Female Terminal

278001014

$2.72

RCF

Female Housing, 2 Circuits

278000217

$7.59

RCF

Connector Holder

710002033

$3.12

RCF

Wire Seal

710000504

$3.93

RCF

Male Terminal

409004300

$5.30

RFB

Cover

710007491

$16.39

RFB

LOGO FUSE RFB - Call your local BRP dealership

710003081

Unavailable

RFB

Fuse, 20 AMP

710001078

$1.79

RFB

Fuse, 20 AMP

710001078

$1.79

RFB

Fuse, 40 AMP

710001047

$11.52

RFB

Fuse 30 amp.

710001200

$6.69

RFB

Little Fuse, 10 Amperes

710000744

$7.24

RFB

Little Fuse, 10 Amperes

710000744

$7.24

RFB

Little Fuse, 10 Amperes

710000744

$7.24

RFB

Little Fuse, 15 Ampere

710000745

$6.77

RFB

Little Fuse, 15 Ampere

710000745

$6.77

RFB

Little Fuse, 20 Amperes

710000746

$6.77

RFB

Fusebox Ass'y

710005623

$41.76

RFB

Fusebox Ass'y

710005623

$41.76

RFB

50 Amps Relay

710003143

$12.64

RFB

Relay, 30 AMP

515176774

$18.63

RFB

Relay, 30 AMP

515176774

$18.63

RFB

Relay

715900824

$16.22

RFB

Relay

715900824

$16.22

RFB

Relay

715900824

$16.22

RFB

PLUG - Call your local BRP dealership

710002633

Unavailable

RFB

Wire Seal

278001065

$5.85

RFB

Wire Seal

278000218

$3.48

RFB

Female Terminal

710000890

$3.73

RFB

Female Terminal

710000918

$5.10

RFB

Female Terminal

278002578

$0.86

RFB_C

Little Fuse, 10 Amperes

710000744

$7.24

RFB_C

Little Fuse, 10 Amperes

710000744

$7.24

RFB_C

Little Fuse, 15 Ampere

710000745

$6.77

RFB_C

Little Fuse, 20 Amperes

710000746

$6.77

RFB_C

Little Fuse, 5 Amperes

710000742

$7.24

RFB_J

Cap

710001631

$0.97

RFB_J

Terminal Joint

710001905

$2.09

RFB_J

Seal Joint

710003133

$0.90

RFB_J

Terminal

710001906

$2.51

RFB_J

M Terminal

710003135

$2.49

RFB_R

Seal Joint

710003133

$0.90

RFB_R

Seal Joint

710003132

$0.81

RFB_R

F Terminal

710003125

$3.01

SAS

Housing

710003730

$13.75

SAS

Wire Seal

710001118

$1.19

SAS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

SPS

Housing

710003731

$7.15

SPS

Plug

710001938

$2.49

SPS

Wire Seal

710001118

$1.19

SPS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

SRV

Female Housing, 2 Circuits

515175658

$14.90

SRV

Female Terminal

515175231

$4.00

STS1

Female Terminal

710002398

$1.67

STS1

Female Terminal

710002399

$1.88

STS2

Female Terminal

710002398

$1.67

STS2

Female Terminal

710002399

$1.88

TAS

Housing

710001232

$13.39

TAS

Seal

710001233

$2.55

TAS

Terminal

710001229

$2.93

TIC

Housing, Packard

710001929

$10.51

TIC

Connector Holder

710002033

$3.12

TIC

Cap

710001225

$7.27

TIC

Seal

710001233

$2.55

TIC

Seal Wire

710001332

$2.72

TIC

Terminal

710001224

$2.93

TIC

Terminal

710001223

$2.93

VCM

RH Connector Cover

710002772

$4.19

VCM

Module Protector VCM

710002381

$20.99

VCM

Housing

710002768

$16.39

VCM

Plug

710001258

$3.29

VCM

Seal Wire

710001153

$1.79

VCM

Terminal

710002773

$2.09

VCM_L

Wire Seal

710001159

$5.90

VCM_L

Terminal

710002775

$0.74

VCM_M

Wire Seal

278000999

$2.55

VCM_M

Female Terminal

710000837

$4.32

VIM1

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

VIM1

Connector Holder

710002033

$3.12

VIM1

Plug

409013700

$4.28

VIM1

Wire Seal

515176621

$6.79

VIM1

Male Terminal

515176164

$6.24

VIM2

Female Housing, 4 Circuits

409209700

$12.97

VIM2

Plug

409013700

$4.28

VIM2

Wire Seal

515176621

$6.79

VIM2

Female Terminal

710001340

$4.96

VSS1

Housing

710003729

$20.12

VSS1

Wire Seal

710001118

$1.19

VSS1

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS2

Housing

710003729

$20.12

VSS2

Wire Seal

710001118

$1.19

VSS2

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS3

Housing

710003729

$20.12

VSS3

Wire Seal

710001118

$1.19

VSS3

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

YRS

Housing

710003730

$13.75

YRS

Wire Seal

710001118

$1.19

YRS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable
