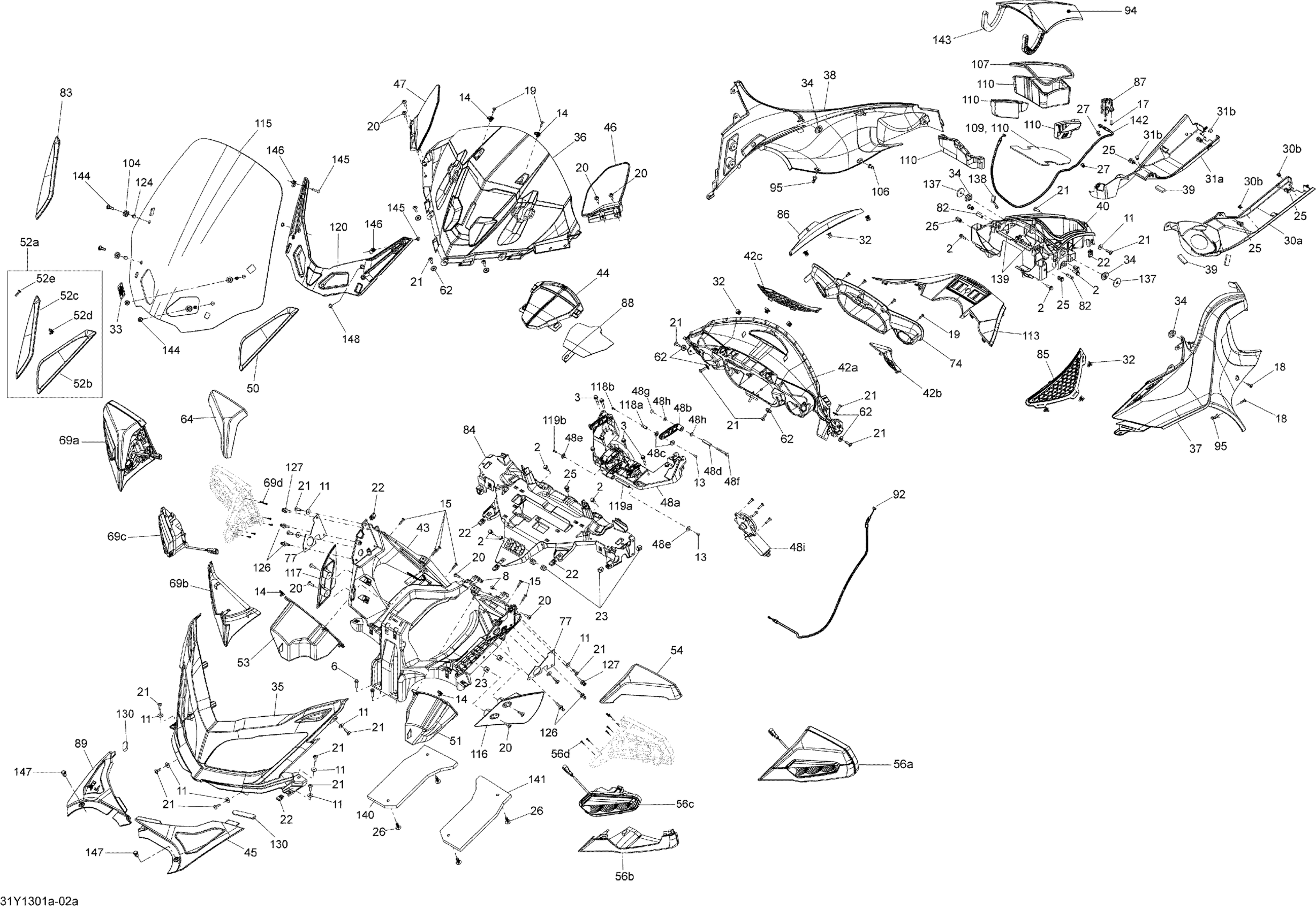

Can-Am Spyder RT Limited SE5, 2013 Body And Accessories Windshield Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hex. Flange Screw M6 X 35

207663544

$0.74

6

Hex. Flange Screw M6 X 16

210261650

$1.22

8

Square Nut M6

232862412

$1.18

11

Stainless Steel Flat Washer

234062670

$1.74

13

Hexalob Screw M4 X 10

250000565

$1.74

14

Panel Nut M5 X 0.8

250000958

$3.48

15

Torx Screw M5 X 20

250000724

$1.39

17

Flange Torx Screw K40 X 16

250000287

$1.74

18

Torx Screw, K50X16

250000459

$3.38

19

Torx Screw, Nylon Patch, M5 X 14

250000487

$1.56

20

Torx Truss Screw M6 X 20

250000488

$1.74

21

Torx Truss Screw M6 X 20

250000350

$4.39

22

Panel Nut M6 X 1.0

250100198

$1.73

23

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

25

Tuflok Plastic Rivet

293150230

$1.21

26

Black, Dart

293730006

$0.81

27

Tie Wrap 142 mm

293750002

$0.88

30a

LH Tank Cover Ass'y

705004631

$110.00

30b

Tie Rap Mount

293750044

$2.00

31a

RH TANK COVER ASS'Y - Call your local BRP dealership | Includes 31a to 31b

705005950

Unavailable

31b

Tie Rap Mount

293750044

$2.00

32

Edge Clip

517302785

$0.70

33

CAUTION DECAL, WINDSHIELD - Call your local BRP dealership

704903339

Unavailable

34

Oval Washer

705000321

$4.64

35

FRONT CONSOLE BRONZE - Call your local BRP dealership | Bronze Model

705007270

Unavailable

35

Front Console,Vegas White B-313 | Model-White

705009172

$260.00

35

FRONT CONSOLE - Call your local BRP dealership | Model-Black Current Met

705009176

Unavailable

36

Upper Console

705006186

$180.00

37

White LH Upper Panel | Model-White

705006168

$300.00

37

LH UPPER PANEL, BRONZE - Call your local BRP dealership | Bronze Model

705006162

Unavailable

37

BLACK CURRENT LH UPPER PANEL - Call your local BRP dealership | Model-Black Current Met

705006328

Unavailable

38

Bare, RH Up Side Pan | Model-White

705006212

$125.00

38

PANEL_BODY UP R B-330 - Call your local BRP dealership | Bronze Model

705006164

Unavailable

38

BLACK CURRENT RH UPPER PANEL - Call your local BRP dealership | Model-Black Current Met

705006327

Unavailable

39

Neoprene Seal (1PAC=3M)

219704364

$22.72

40

Glove Box

705002726

$80.00

42a

DASHBOARD ASS'Y - Call your local BRP dealership

705006655

Unavailable

42b

LH SPEAKER GRILL - Call your local BRP dealership

705003199

Unavailable

42c

RH SPEAKER GRILL - Call your local BRP dealership

705003200

Unavailable

43

Console Support

705002743

$100.00

44

Guide Chart Support

705002746

$28.00

45

Service Center Access Panel LH

705002839

$34.00

46

LH Upper Air Deflector

705002841

$46.00

47

RH Upper Air Deflector

705002842

$46.00

48a

Windshield Motor Support Ass'y

705007069

$750.00

48b

Rear Arm Ass'y

219800432

$84.00

48c

Sleeve

705003267

$9.00

48d

Inner Sleeve | Order 219800321

NLA

Unavailable

48e

Sleeve

705003267

$9.00

48f

Hex. Screw M6 X 50

207065060

$1.85

48g

Elastic Stop Nut M6, Brass

232561200

$3.51

48h

Stainless Flat Washer M6

234061600

$0.25

48i

Windshield Motor

278002579

$184.57

50

Not Available As Spare Parts

XXX

Unavailable

51

LH SPEAKER HOUSING - Call your local BRP dealership

705003092

Unavailable

52a

CHROME WINDSHIELD CAP KIT - Call your local BRP dealership | Model-RT LTD

219400191

Unavailable

52b

CHROME WINDSHIELD CAP KIT - Call your local BRP dealership | Model-RT LTD

219400191

Unavailable

52c

CHROME WINDSHIELD CAP KIT - Call your local BRP dealership | Model-RT LTD

219400191

Unavailable

52d

Panel Nut M5 X 0.8

250000958

$3.48

52e

Torx Screw M5 X 25

250000455

$3.00

53

SPEAKER RH - Call your local BRP dealership

705009165

Unavailable

54

LH Upper Mirror Shell, Chrome | Model-RT LTD

705007399

$120.00

56a

LH MIRROR ASS'Y - Call your local BRP dealership | Includes 56a to 56d

705006966

Unavailable

56b

LH Lower Mirror Shell

705003148

$145.00

56c

LH Front Flasher Unit

710001510

$164.00

56d

Flange Screw K30 X 12

250000610

$3.00

62

Flat Washer 6 mm

234062410

$0.64

64

RH Upper Mirror Shell, Chrome | Model-RT LTD

705007400

$120.00

69a

RH MIRROR ASS'Y - Call your local BRP dealership | Includes 69a to 69d

705006967

Unavailable

69b

RH Lower Mirror Shell

705003159

$145.00

69c

RH Front Flasher Unit

710001511

$164.00

69d

Flange Screw K30 X 12

250000610

$3.00

74

Dashboard Bezel

705003163

$54.00

77

Console Support Plate

705003779

$28.00

82

Retainer Pin

705003295

$18.00

83

Not Available As Spare Parts

XXX

Unavailable

84

Console Cross-Support

705003384

$83.00

85

LH Upper Side Panel Grille

705003385

$31.00

86

RH Upper Side Panel Grille

705003386

$31.00

87

Push Latch

705007380

$63.00

88

Guide Chart

705009360

$28.00

89

Service Center Access Panel RH

705005903

$34.00

92

Hood Cable

517305460

$45.00

94

Glove Box Cover, Vegas White B-313 | Model-White

705006973

$170.00

94

GLOVE BOX COVER, BRONZE MET - Call your local BRP dealership | Bronze Model

705006884

Unavailable

94

GLOVE BOX COVER, CASSIS - Call your local BRP dealership | Model-Black Current Met

705006359

Unavailable

95

Angled Knob

705003746

$6.00

104

Windshield Grommet

705003756

$6.00

106

Knob

705003842

$6.00

107

NEOPRENE SEAL, METER - Call your local BRP dealership

219800143

Unavailable

109

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

110

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

113

Center Panel

705004461

$39.00

115

Windshield

705004740

Unavailable

116

LH Lower Air Deflector

705004924

$44.00

117

RH Lower Air Deflector

705004925

$44.00

118a

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

118b

Hexalob Screw M4 X 10

250000565

$1.74

119a

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

119b

Hexalob Screw M4 X 10

250000565

$1.74

120

WINDSHIELD SUPPORT - Call your local BRP dealership

705005405

Unavailable

124

Sleeve

705005756

$13.00

126

Spherical Head Stud

705004322

$17.00

126

STUD_BALL M6 X 20 - Call your local BRP dealership | April 11 And Up, 2013

705006659

Unavailable

127

Spherical Head Stud

705004323

$17.00

127

FLAT HEAD STUD M6 - Call your local BRP dealership | April 11 And Up, 2013

705006660

Unavailable

130

Néoprene Pad

705006824

$7.00

137

Rubber Washer

705007085

$2.00

138

Glove Box Spring

705003748

$26.00

139

Circlip

705600272

$7.69

140

RH Acoustic Foam

707800341

$18.00

141

LH Acoustic Foam

707800349

$18.00

142

GLOVE BOX CABLE - Call your local BRP dealership

705003625

Unavailable

143

GLOVE BOX DOOR ASS'Y - Call your local BRP dealership

705006111

Unavailable

144

Torx Truss Screw M6 X 20

250000350

$4.39

145

Torx Screw M5 X 25

250000455

$3.00

146

Panel Nut M5 X 0.8

250000958

$3.48

147

Tuflok Plastic Rivet

293150230

$1.21

148

Windshield Rubber Bumper

705005666

$2.00
