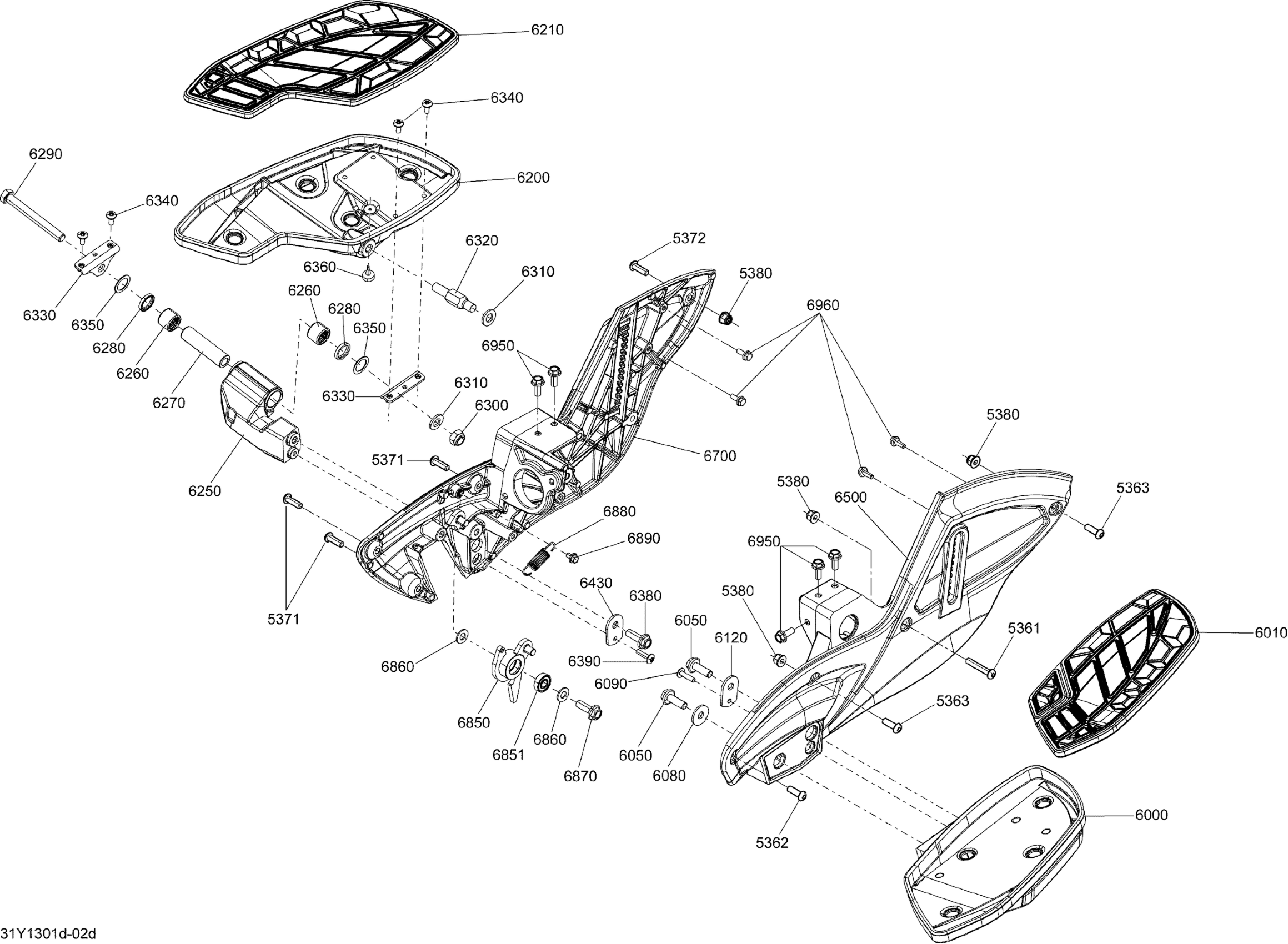

Can-Am Spyder RT Limited SE5, 2013 Body And Accessories Footrest Diagram

#

Description
Price

5361

Socket Screw M8 X 45

205484560

$2.00

5362

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5363

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5371

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5372

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.18

5380

Hex. Flange Elastic Nut M8

233281434

$1.74

6000

CHROME LH FRONT FOOTREST - Call your local BRP dealership | Model-RT LTD SE6

705006390

Unavailable

6010

LH Front Footboard Pad | Model-RT LTD SE6

705005731

$100.00

6050

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

6080

Flat Washer 10 mm, Stainless

234002600

$1.85

6090

Torx Truss Screw M6 X 25

250000807

$1.74

6120

Retaining Plate | Model-RT LTD SE6

705006557

$10.00

6200

Chrome RH Front Footrest | Model-RT LTD SE6

705006392

$390.00

6210

RH Front Footboard Pad | Model-RT LTD SE6

705005728

$100.00

6250

Pivot Support | Model-RT LTD SE6

705005723

$94.00

6260

Bearing

706000447

$11.83

6270

Bushing

706000731

$14.75

6280

Seal, Single Lip ID 19.4 OD 26

706000448

Unavailable

6290

Hexagonal Screw M12 X 105

230020586

$7.28

6300

Elastic Stop Nut M12

232521416

$1.40

6310

Flat Washer

234021430

$2.06

6320

Latch Pin M12 X 30 | Model-RT LTD SE6

705006428

$28.00

6330

Pivot Bracket | Model-RT LTD SE6

705005861

$21.00

6340

Torx Screw M6 X 16

250000223

$1.74

6350

Plastic Washer 20MM | Model-RT LTD SE6

250200136

$8.00

6360

Rubber Stopper

708000759

$3.61

6380

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

6390

Torx Truss Screw M6 X 25

250000807

$1.74

6430

Retaining Plate | Model-RT LTD SE6

705006557

$10.00

6500

Chrome LH Footrest Support | Model-RT LTD SE6

705006395

$860.00

6700

Chrome, RH Footrest Support | Model-RT LTD SE6

705013491

$820.00

6850

Latch Ass'y | Model-RT LTD SE6

705006014

$240.00

6851

Bearing

705600458

$7.03

6860

Flat Washer 10 mm

234001410

$0.98

6870

Hex. Screw M10 X 1.5 X 30

207503044

$7.31

6880

Spring

705006533

$18.00

6890

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

6950

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

6960

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56
