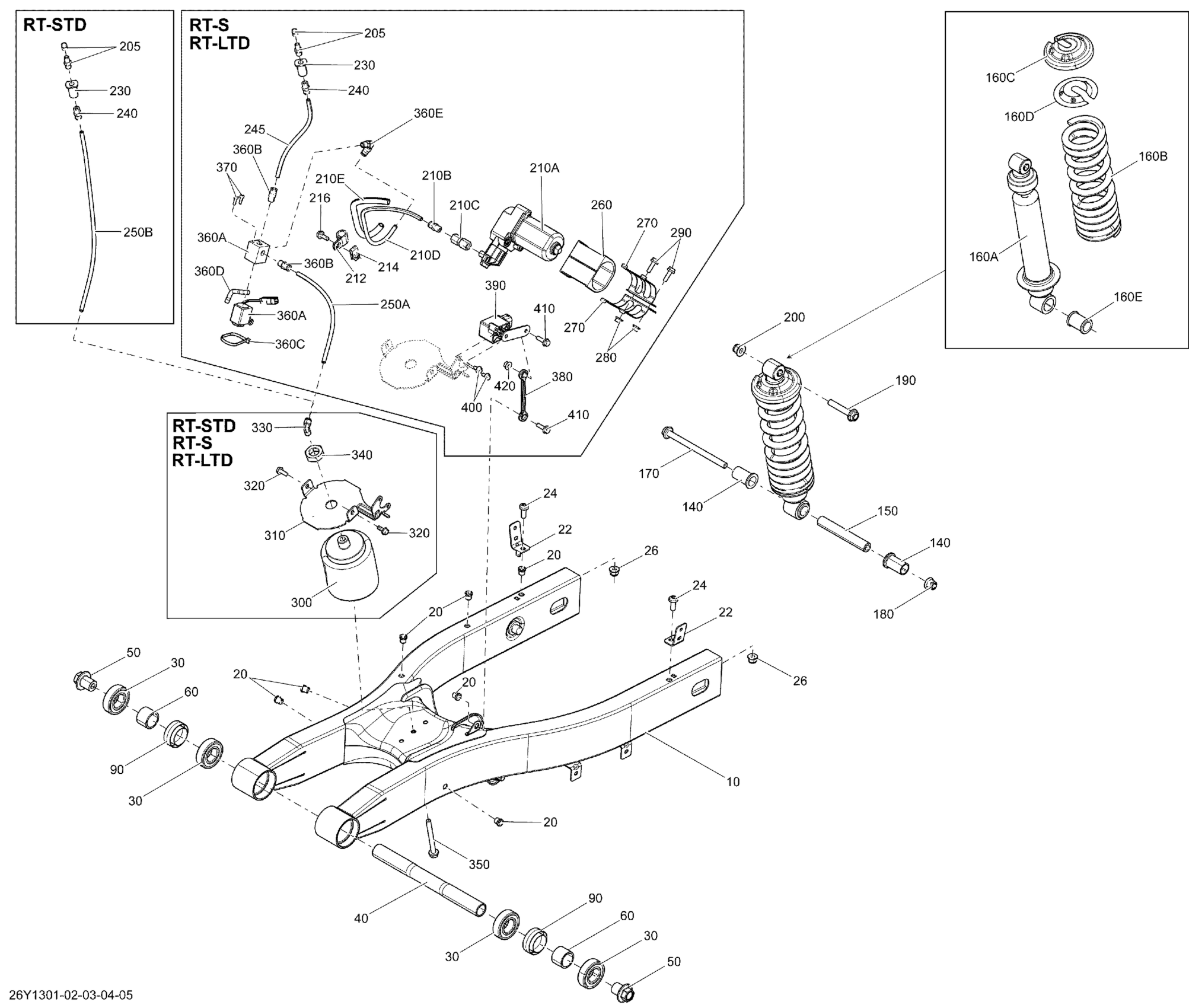

Can-Am Spyder RT Limited SE5, 2013 Suspension, Rear Diagram

#

Description
Price

10

Swing Arm

706001574

$456.00

20

Insert

293450275

$9.89

22

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

30

Ball Bearing

293350115

$11.15

40

Swing Arm Axle

706001182

$94.00

50

Bolt M20

706001579

$17.00

60

Spacer

706001152

$9.00

90

Sleeve

706001366

$1.00

140

Spacer

706000410

$14.00

150

Shock Absorber Shaft

706000409

$50.00

160A

Shock

706001262

$122.00

160B

SPRING - Call your local BRP dealership

706001263

Unavailable

160C

SPRING STOPPER - Call your local BRP dealership

503191604

Unavailable

160D

CAP - Call your local BRP dealership

503191605

Unavailable

160E

Urethane Cushion

503191609

$18.00

170

Hex. Flange Screw M10 X 140

230604034

$7.00

180

Hex. Flange Elastic Nut M10

233201434

$1.63

190

Hex. Flange Screw

207605534

$2.06

200

Hex. Flange Elastic Nut M10

233201434

$1.63

205

Air Valve

706002797

$15.22

210A

Compressor

706001349

$436.89

210B

Connector

706000869

$33.05

210C

Ckeck Valve

706000831

$39.00

210D

Hose 4.32Mm 3000Mm Long

219704415

$44.17

210E

Tubing 6 Mm 3000Mm Long

219704425

$13.14

212

Hose Retainer 13 mm

705600232

$11.06

214

Panel Nut M6 X 1.0

250100198

$1.73

216

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

230

Pneumatic Connector

706000735

$19.00

240

Connector

706000869

$33.05

245

Hose 4.32Mm 3000Mm Long

219704415

$44.17

250A

Hose 4.32Mm 3000Mm Long

219704415

$44.17

250B

Not Available As Spare Parts

XXX

Unavailable

260

Compressor Isolator

706000631

$13.22

270

Compressor Bracket

503193103

$4.42

280

Hex. Flange Nut M6

233061414

$1.34

290

Hex. Flange Screw M6 X 20

207662044

$1.66

300

Air Damper Kit

219800175

$291.00

310

Support Plate

706001082

$19.00

320

Hex. Forming Screw M6 X 10

210261050

$1.42

330

Elbow 90°

706001018

$29.00

340

Jam Nut M20

250100119

$4.00

350

Hex. Flange Screw M8 X 75

207687544

$7.23

360A

Air Manifold Ass'y

706001175

$300.00

360B

Connector

706000869

$33.05

360C

Tie-Rap 180 mm

414115200

$0.09

360D

Tubing 6 Mm 3000Mm Long

219704425

$13.14

360E

Elbow 90°

706000928

$26.12

370

Socket Head Screw M4 X 12

205041254

$2.02

380

TIE ROD - Call your local BRP dealership | RTS

706200895

Unavailable

390

Position Sensor

710001651

$175.00

400

Hex. Flange Screw M5 X 10

207551044

$3.38

410

Hex. Flange Screw M6 X 20

207662044

$1.66

420

Hex. Flange Nut M6

233061414

$1.34
