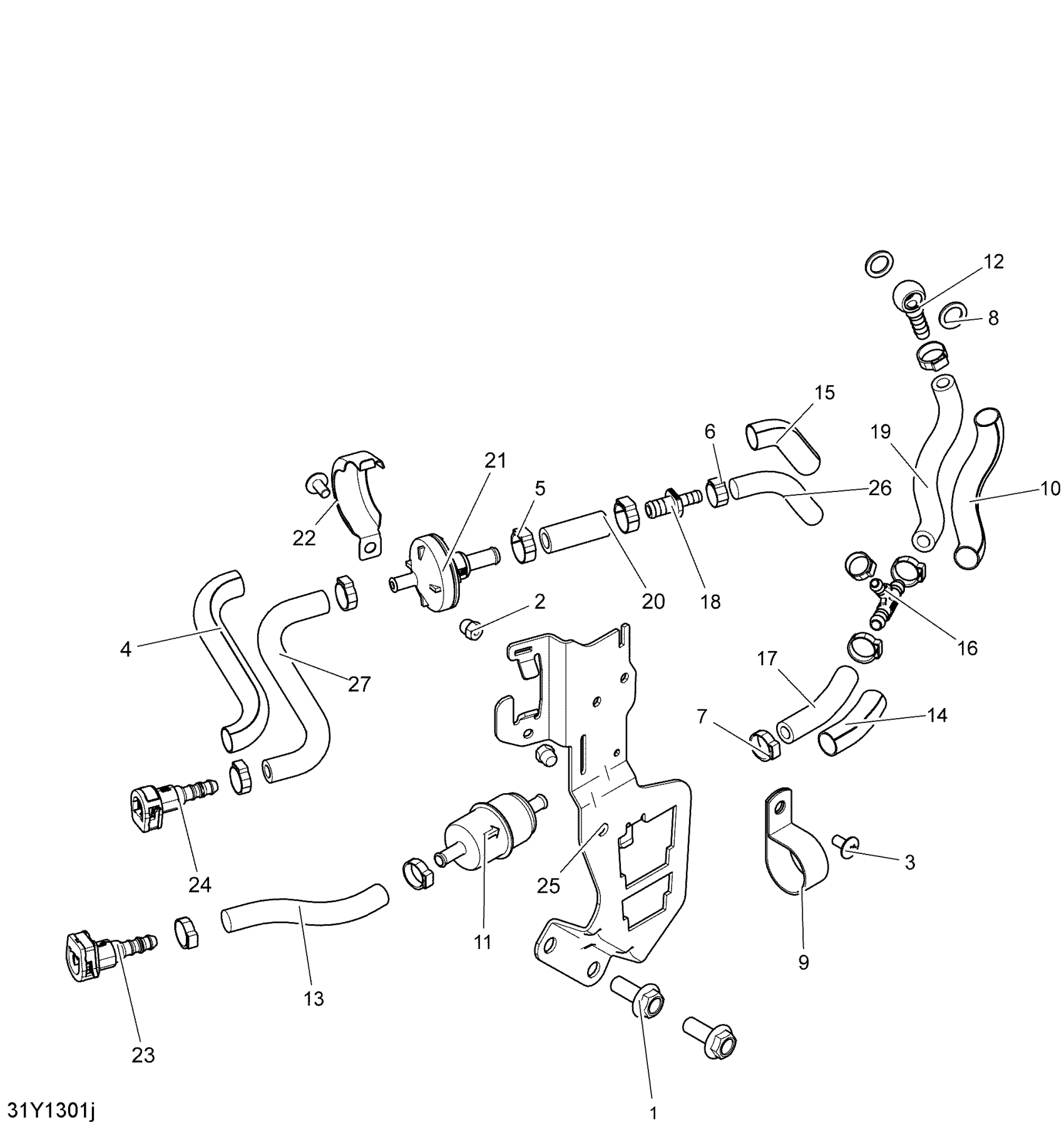

Can-Am Spyder RT Limited SE5, 2013 Fuel Hoses (Heat Management Kit) Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 25

207602544

$1.33

2

Domed Nut M6

232361493

$1.77

3

Torx Truss Screw M6 X 12

250000767

$1.66

4

Tubing 16 Mm 1000Mm Long

219704408

$6.23

5

Oetiker Clamp | Europe

293650030

$4.32

6

Oetiker Clamp

293650046

$2.33

7

Oetiker Clamp

293650125

$2.69

8

Aluminum Sealing Ring

420250016

$4.41

9

Open Clamp

513033047

$4.88

10

Tubing 16 Mm 1000Mm Long

219704408

$6.23

11

Fuel Filter

513034047

$23.05

12

BANJO FITTING - Call your local BRP dealership

709000137

$20.00

13

Fuel Line 7.9 mm, Meter

709000265

$13.00

14

Tubing 16 Mm 1000Mm Long

219704408

$6.23

15

Tubing 16 Mm 1000Mm Long

219704408

$6.23

16

Kit Y Fitting This part replaces 709000453.

219800628

$49.00

17

Fuel Line 7.9 mm, Meter

709000265

$13.00

18

CONNECTOR - Call your local BRP dealership

709000671

Unavailable

19

Fuel Line 7.9 mm, Meter

709000264

$16.00

20

Hose

709000677

$8.00

21

FUEL PRESSURE REGULATOR - Call your local BRP dealership

709000678

Unavailable

22

Regulator Support

709000680

Unavailable

23

Female Quick Fitting Ass'y

709000684

$15.00

24

Quick Connect Pipe Fitting

293710192

$12.00

25

Formed Hose

709000727

Unavailable

26

HOSE 6,35MM ID - 680MM - Call your local BRP dealership

709000445

Unavailable

27

FORMED HOSE - Call your local BRP dealership

709000729

Unavailable
