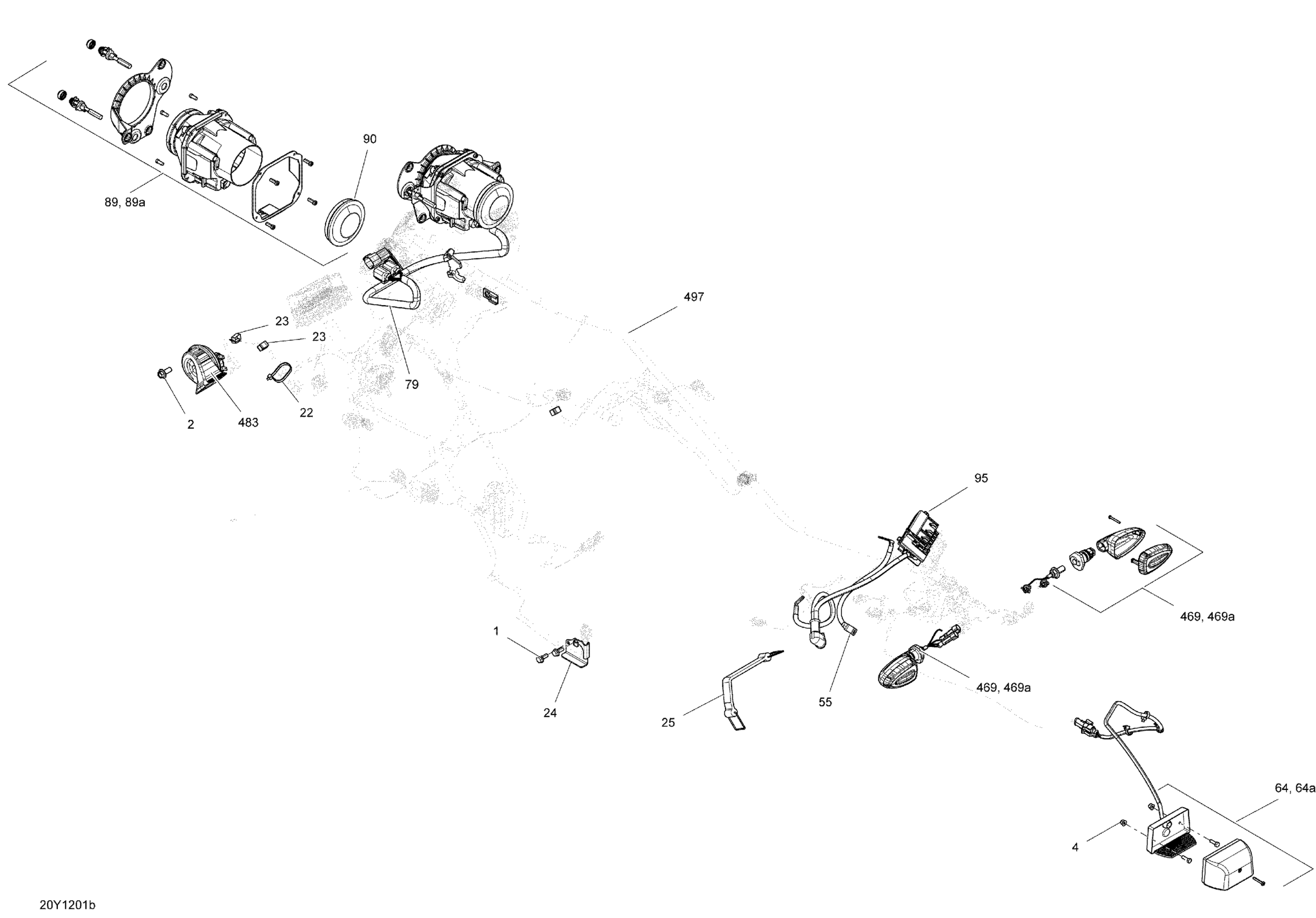

Can-Am Spyder RS SM5, 2012 Electrical System Lighting North America (SM5) Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.66

2

Hex. Flange Screw M8 X 20

207682044

$0.92

4

Elastic Flange Nut M5

233251494

$1.74

22

Tie-Rap 180 mm

414115200

$0.09

23

Clip

414227300

$1.45

24

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

25

Battery Strap

515176044

$14.27

55

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.05

64

Licence Light | Includes 24 to 25

710001994

$75.00

79

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

89

LH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004952

Unavailable

89

RH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004951

Unavailable

90

Cap

219400070

$16.89

95

POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

710002079

Unavailable

469

LH Rear Turn Signal Ass'y

710001290

$69.00

469

RH Rear Turn Signal Ass'y

710001337

$69.00

483

HORN - Call your local BRP dealership

710004229

$29.00

497

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 to YRS

710001730

Unavailable

469a

Bulb 12V/10W, Amber

219800039

Unavailable

64a

Bulb 12V 10W | Not Shown

415129261

$2.00

89a

Halogen Bulb

219400069

$20.00
