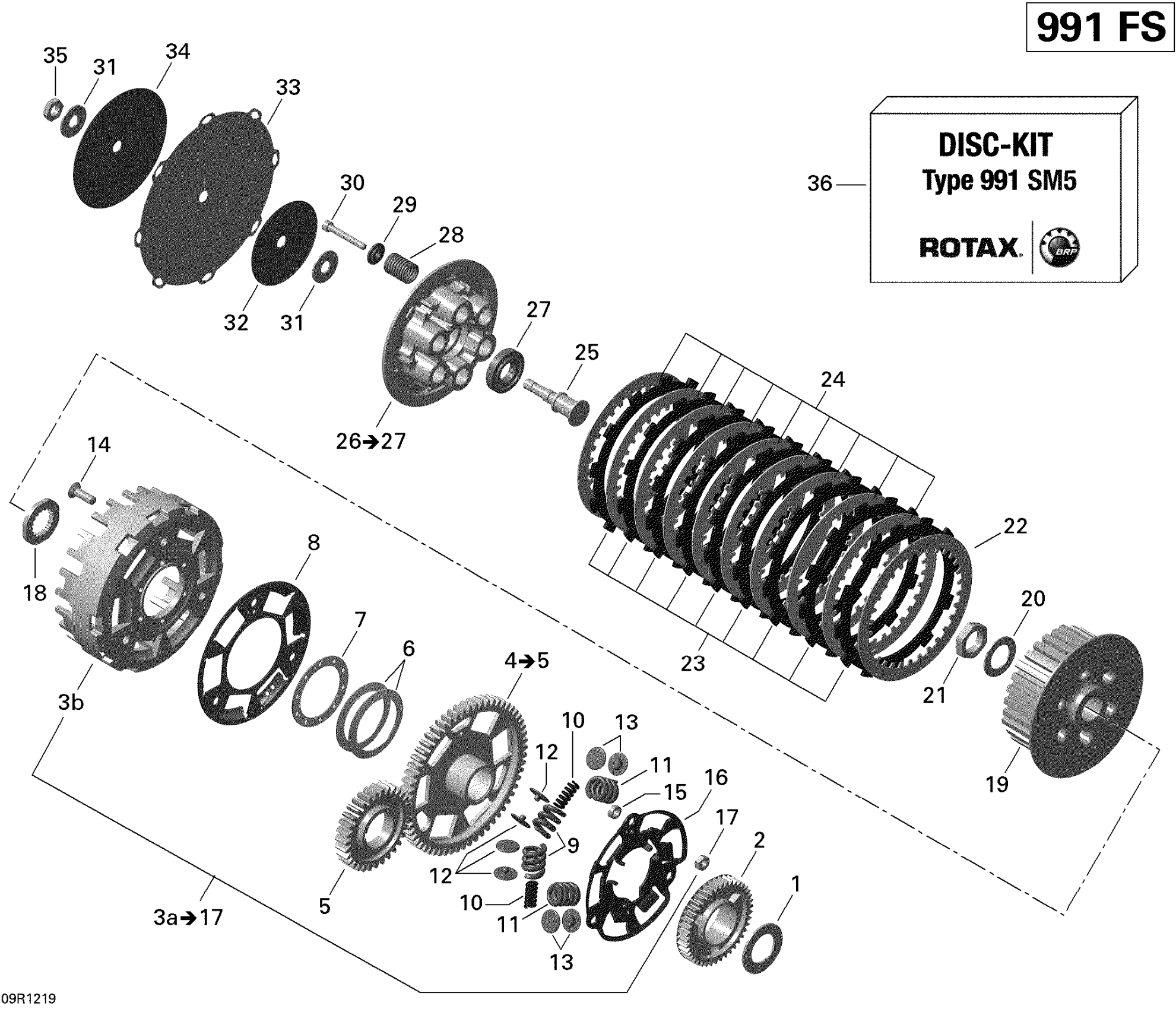

Can-Am Spyder RS SM5, 2012 Clutch Diagram

#

Description
Price

1

Thrust Washer

420627260

$10.00

2

Oil Gear Pump, 42 Teeth

420634478

$29.00

3a

Primary Drive Ass'y | Includes 3a to 17

420685850

$640.00

3b

Clutch Drum

420259533

$99.00

4

Primary Drive Gear Ass'Y | Includes 11 to 12

420295789

$600.00

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Disc Spring

420239397

$18.00

7

THRUST WASHER - Call your local BRP dealership

420626810

Unavailable

8

Support Plate

420259688

$64.00

9

Compression Spring

420238135

$17.00

10

Internal Compression Spring

420238140

$16.00

11

Compression Spring

420238130

$18.00

12

Spring Retainer

420247015

$16.00

13

Spring Retainer

420247017

$16.00

14

Flat Head Screw, M8 X 25

420941835

$4.00

15

Spacer Sleeve

420247614

$10.00

16

Outer Support Plate

420259581

$64.00

17

Hex. Nut M8

232081414

$0.60

18

Thrust Washer

420627225

$13.00

19

Hub Clutch

420259521

$105.00

20

Spring Washer

420245830

$10.00

21

Hex. Nut M24

420242012

$15.35

22

PLATE, 1.5 MM - Call your local BRP dealership | See Item 36, Disc Kit

420259266

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Pin

420659791

$36.00

26

Pressure Plate Ass'y | Includes 26 to 27

420259519

$76.00

27

Ball Bearing

420632135

$28.00

28

Clutch Spring | See Item 36, Disc Kit

420238721

$11.00

29

Step Washer

420627530

$10.00

30

Screw M6 X 45

420640315

$2.00

31

Thrust Washer

420227180

$12.91

32

Disc Support

420627230

$16.00

33

Diaphragm

420260892

$36.00

34

Disc Plate

420627281

$16.00

35

Hexagonal Nut M12 X 1

420642059

$8.45

36

Disc Kit, Type 991 SM5

420281930

$670.00
