Description

Price

1

HOSE - Call your local BRP dealership

707001120

Unavailable

2

Banjo Bolt

414920500

$8.49

3

Washer

414920600

$1.52

4

Pressure And Temperature Sensor

707000995

$70.82

5

Hex. Flange Screw M6 X 20

207662084

$0.83

6

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Foam Filter

707000586

$6.00

9

Clip

414227300

$1.45

10

Rubber Stopper

708000758

$9.37

11

Intake Support

707000756

$11.00

12

Hex. Flange Screw M6 X 12

207661244

$1.70

13

Solenoid Valve

707001596

$79.00

14

Hose

513033565

$29.20

15

Hose

513033565

$29.20

16

Check Valve

513033469

$25.32

17

Oetiker Clamp

293650042

$1.40

18

Torx Screw M5 X 20

250000724

$1.39

19

Hex. Flange Elastic Nut M5

233251414

$1.66

20

Oetiker Clamp

293650042

$1.40

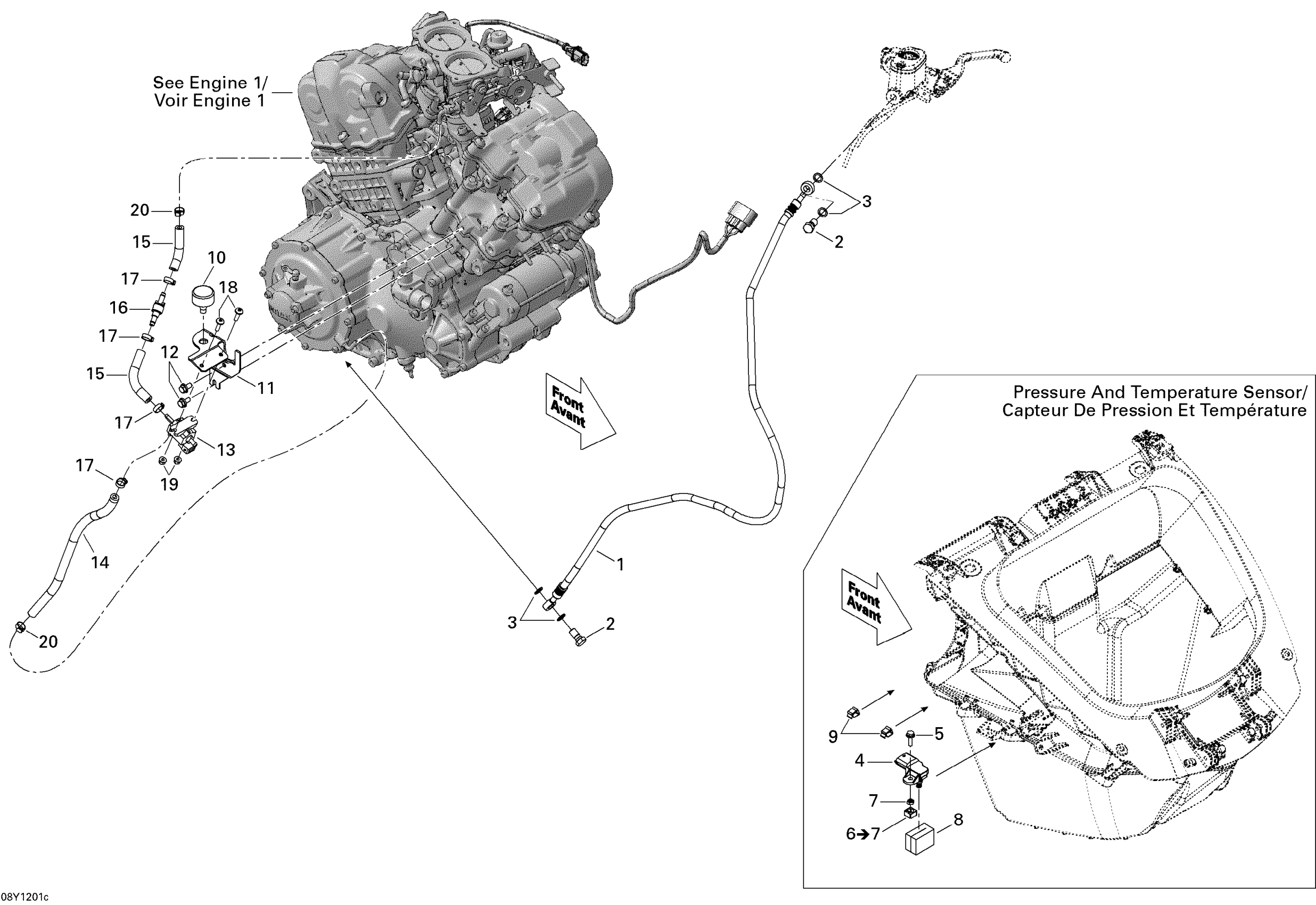

Can-Am Spyder RS SM5, 2012 Engine 2_SM5 Diagram

HOSE - Call your local BRP dealership

Banjo Bolt

Washer

Pressure And Temperature Sensor

Hex. Flange Screw M6 X 20

M6 Nut Housing Ass'y | Includes 7r to 7r2

Hex. Elastic Stop Nut M6

Foam Filter

Clip

Rubber Stopper

Intake Support

Hex. Flange Screw M6 X 12

Solenoid Valve

Hose

Hose

Check Valve

Oetiker Clamp

Torx Screw M5 X 20

Hex. Flange Elastic Nut M5

Oetiker Clamp
